DSE Rear Coilover Conversion Kit - Factory 2-3/4 Inch Axle Tubes (042420DS) - 1978-1988 GM G-Body
Bring modern coilover suspension technology to your 1978-1988 GM G-Body with the Detroit Speed Rear Coilover Conversion Kit. Part number 042420DS is engineered for G-Body applications equipped with a factory GM rear axle featuring 2-3/4 inch axle tubes. The complete system replaces the original separate rear coil spring and shock arrangement with an integrated Detroit Tuned coilover package, giving your G-Body extensive ride-height adjustability along with a suspension setup engineered to improve handling and ride quality.
Detroit Speed equips the 042420DS package with base non-adjustable coilover shocks featuring Detroit Tuned valving and pairs them with 175 pounds per inch springs measuring 11 inches in free length. The complete bolt-on conversion includes the shocks, springs, application-specific upper and lower coilover mounting components, Torrington bearing set, hardware, and installation instructions. For a street-driven, pro-touring, autocross, or handling-focused G-Body, this kit provides a purpose-built path from the original spring-and-shock arrangement to a modern adjustable-height coilover system.
Specifications
- Manufacturer: Detroit Speed
- Part Number: 042420DS
- Product Type: Rear Coilover Conversion Kit
- Position: Rear
- Application: 1978-1988 GM G-Body
- Rear Axle: Factory GM axle
- Axle Tube Diameter: 2-3/4 inches
- Shock Type: Non-adjustable
- Shock Valving: Detroit Tuned
- Spring Rate: 175 pounds per inch
- Spring Free Length: 11 inches
- Ride Height: Adjustable
- Installation Type: Complete bolt-on conversion
- Coilover Shocks Included: 2
- Coilover Springs Included: 2
- Upper Coilover Shock Mounting Plates: Right- and left-hand plates included
- Lower Coilover Shock Mounting Brackets: Right- and left-hand brackets included
- Torrington Bearing Set: Included
- Hardware Kit: Included
- Wagon Applications: Excluded
Features
- Converts the factory separate rear coil spring and shock arrangement to an integrated coilover suspension system
- Engineered for 1978-1988 GM G-Body applications with a factory GM rear axle and 2-3/4 inch axle tubes
- Detroit Tuned non-adjustable shocks provide an engineered balance of handling performance and ride quality
- Extensive coilover ride-height adjustment lets you fine-tune vehicle stance and rear suspension setup
- 175 pounds per inch coilover spring rate
- 11 inch coilover spring free length
- Complete bolt-on package eliminates the need to piece together a universal coilover conversion
- Application-specific right- and left-hand upper shock mounting plates provide dedicated upper coilover mounting points
- Right- and left-hand lower mounting brackets properly locate the coilovers at the rear axle
- Torrington bearing set is included with the conversion kit
- Required installation hardware is supplied
- Provides modern coilover spring and shock technology for classic GM G-Body suspension
- Well suited for street-performance, pro-touring, autocross, and other handling-focused G-Body builds

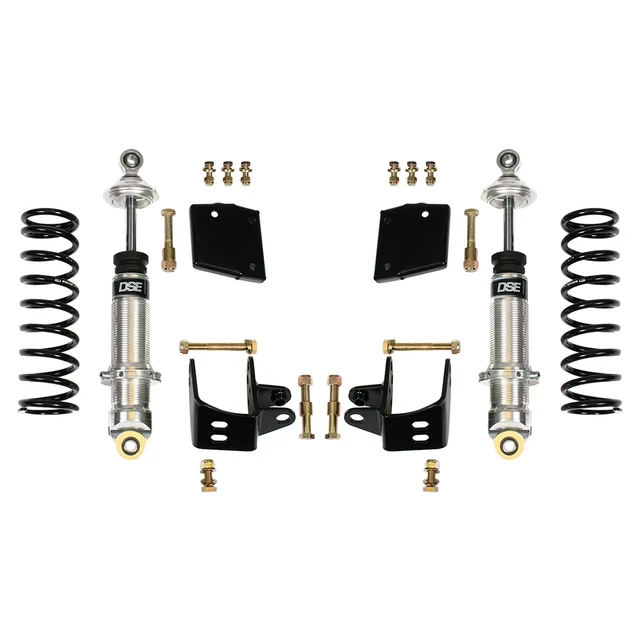

- Complete system includes two coilover shocks, two coilover springs, upper mounting plates, lower mounting brackets, Torrington bearing set, hardware kit, and installation instructions
Fitment
- 1978 GM G-Body with factory 2-3/4 inch axle tubes, excluding wagon
- 1979 GM G-Body with factory 2-3/4 inch axle tubes, excluding wagon
- 1980 GM G-Body with factory 2-3/4 inch axle tubes, excluding wagon
- 1981 GM G-Body with factory 2-3/4 inch axle tubes, excluding wagon
- 1982 GM G-Body with factory 2-3/4 inch axle tubes, excluding wagon
- 1983 GM G-Body with factory 2-3/4 inch axle tubes, excluding wagon
- 1984 GM G-Body with factory 2-3/4 inch axle tubes, excluding wagon
- 1985 GM G-Body with factory 2-3/4 inch axle tubes, excluding wagon
- 1986 GM G-Body with factory 2-3/4 inch axle tubes, excluding wagon
- 1987 GM G-Body with factory 2-3/4 inch axle tubes, excluding wagon
- 1988 GM G-Body with factory 2-3/4 inch axle tubes, excluding wagon
Fitment Note: Detroit Speed 042420DS is specifically designed for a factory GM rear axle with 2-3/4 inch axle tubes. Wagon applications are excluded. Verify rear axle type and axle tube diameter before ordering, as Detroit Speed offers a separate G-Body coilover conversion for other rear axle configurations.
FAQs
What rear axle does Detroit Speed 042420DS fit?
Part number 042420DS is designed for 1978-1988 GM G-Body applications equipped with a factory GM rear axle using 2-3/4 inch axle tubes. Confirm the rear axle and axle tube diameter before ordering.
Are the shocks in Detroit Speed 042420DS adjustable?
The included shocks are non-adjustable and feature Detroit Speed's Detroit Tuned valving. The coilover system itself provides extensive ride-height adjustment, allowing you to fine-tune vehicle stance while retaining Detroit Speed's engineered shock calibration.
Is Detroit Speed 042420DS a bolt-on conversion?
Yes. Detroit Speed describes 042420DS as a complete bolt-on rear coilover conversion. The kit includes the coilover shocks and springs, upper and lower mounting components, Torrington bearing set, hardware, and installation instructions required for the conversion.
