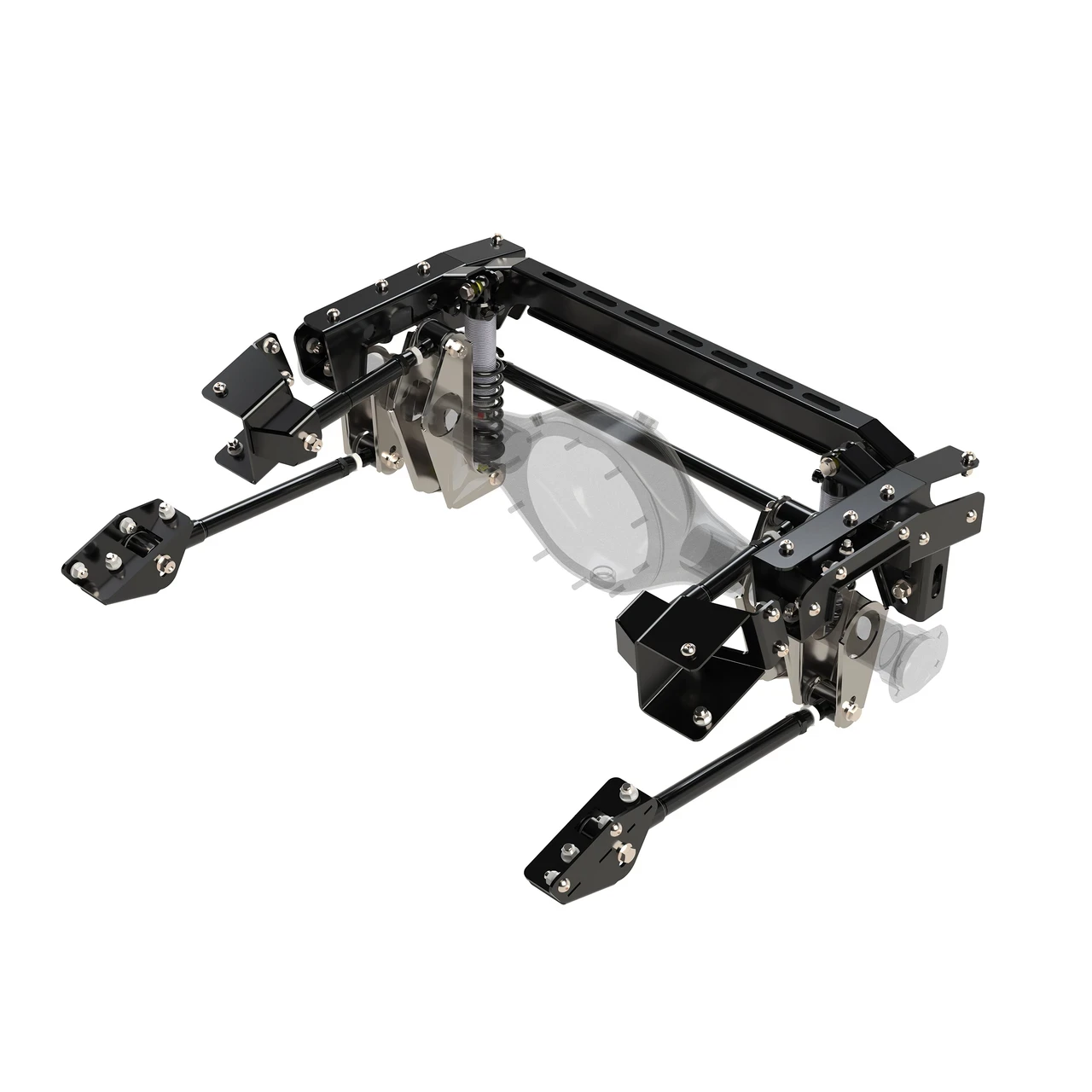

DSE QuadraLink Rear Suspension Kit - With Axle Brackets (041758DS) - 1982 - 2003 Chevrolet S10 / GMC S15 / Sonoma 2WD
Turn your 1982-2003 Chevrolet S10, GMC S15, or GMC Sonoma 2WD into a far more capable street or performance truck with the Detroit Speed QUADRALink Rear Suspension Kit. DSE 041758DS replaces the factory leaf-spring rear suspension with a true parallel 4-link system engineered for improved traction, sharper handling, better rear axle control, and a more refined ride. QA1 double-adjustable coilover shocks provide 18 clicks of compression and rebound adjustment, giving you substantial control over the truck's suspension setup whether you are building for aggressive street driving, hard launches, cornering performance, or a combination of all three.
The QUADRALink system combines Detroit Speed's optimized suspension geometry with patented Swivel-Link technology to provide controlled articulation while reducing the noise, vibration, and harshness associated with less refined link designs. Parallel 4-link geometry provides anti-squat tuning for improved traction, while the adjustable track bar precisely controls lateral axle movement and provides roll-center adjustability. A bolt-in frame notch and crossmember provide additional suspension travel and structural rigidity for the system's 5-inch to 6-inch lowered ride height. This 041758DS configuration also includes Detroit Speed axle bracket kit 200173DS for installation on a compatible rear axle housing.
Specifications
- Part Number: 041758DS
- Product Type: QUADRALink Rear Suspension Kit
- Position: Rear
- Application: 1982-2003 Chevrolet S10 / GMC S15 / GMC Sonoma 2WD
- Drive Configuration: 2-Wheel Drive
- Original Rear Suspension: Leaf Spring
- Suspension Design: Parallel 4-Link
- Shock Type: Double-Adjustable Coilover
- Shock Manufacturer: QA1
- Shock Adjustment: 18 Clicks of Compression and Rebound Adjustment
- Spring Rate: 200 pounds per inch
- Ride Height: Optimized for 5 inches to 6 inches Lowered
- Track Bar: Adjustable
- Anti-Squat: Adjustable
- Roll Center: Adjustable
- Link Technology: Detroit Speed Patented Swivel-Link
- Frame Notch: Included
- Rear Crossmember: Included
- Axle Bracket Kit: Included
- Axle Bracket Kit Part Number: 200173DS
- Axle Bracket Installation: Weld-On
- Detroit Speed Ford 9-Inch Rear Housing Compatibility: Yes
- Factory Fuel Tank Compatibility: No
- Compatible Detroit Speed Fuel Tank: 080193DS
- Country of Manufacture: USA
Features
- Replaces the factory leaf-spring rear suspension with a performance-oriented parallel 4-link system
- Optimized QUADRALink geometry improves handling, traction, and rear suspension control
- Parallel 4-link geometry provides adjustable anti-squat for tuning launch and traction characteristics
- QA1 double-adjustable coilover shocks provide 18 clicks of compression and rebound adjustment
- Detroit Speed-spec 200 pounds per inch coilover springs provide a balanced suspension package
- Optimized for a 5-inch to 6-inch lowered ride height
- Patented Detroit Speed Swivel-Link technology promotes smooth suspension articulation while reducing noise, vibration, and harshness
- Helps eliminate the wheel hop and axle wrap associated with the original leaf-spring suspension
- Adjustable track bar provides precise lateral rear axle control
- Track bar design provides roll-center adjustability for additional chassis tuning
- Bolt-in frame notch provides the axle clearance needed for the lowered suspension configuration
- Integrated crossmember adds suspension travel capability and structural rigidity
- Includes Detroit Speed axle bracket kit 200173DS
- Axle brackets are welded to the rear axle housing while the chassis-side system uses factory-location mounting provisions
- Compatible with Detroit Speed Ford 9-inch rear housing options for high-horsepower builds
- Installation requires minor cutting and drilling but does not require extensive frame fabrication
- Designed, tested, and manufactured in the USA
Fitment
- 1982 Chevrolet S10 2WD
- 1982 GMC S15 2WD
- 1983 Chevrolet S10 2WD
- 1983 GMC S15 2WD
- 1984 Chevrolet S10 2WD
- 1984 GMC S15 2WD
- 1985 Chevrolet S10 2WD
- 1985 GMC S15 2WD
- 1986 Chevrolet S10 2WD
- 1986 GMC S15 2WD
- 1987 Chevrolet S10 2WD
- 1987 GMC S15 2WD
- 1988 Chevrolet S10 2WD
- 1988 GMC S15 2WD
- 1989 Chevrolet S10 2WD
- 1989 GMC S15 2WD
- 1990 Chevrolet S10 2WD
- 1990 GMC S15 2WD
- 1991 Chevrolet S10 2WD
- 1991 GMC S15 2WD
- 1991 GMC Sonoma 2WD
- 1992 Chevrolet S10 2WD
- 1992 GMC S15 2WD
- 1992 GMC Sonoma 2WD
- 1993 Chevrolet S10 2WD
- 1993 GMC Sonoma 2WD
- 1994 Chevrolet S10 2WD
- 1994 GMC Sonoma 2WD
- 1995 Chevrolet S10 2WD
- 1995 GMC Sonoma 2WD
- 1996 Chevrolet S10 2WD
- 1996 GMC Sonoma 2WD
- 1997 Chevrolet S10 2WD
- 1997 GMC Sonoma 2WD
- 1998 Chevrolet S10 2WD
- 1998 GMC Sonoma 2WD
- 1999 Chevrolet S10 2WD
- 1999 GMC Sonoma 2WD
- 2000 Chevrolet S10 2WD
- 2000 GMC Sonoma 2WD
- 2001 Chevrolet S10 2WD
- 2001 GMC Sonoma 2WD
- 2002 Chevrolet S10 2WD
- 2002 GMC Sonoma 2WD
- 2003 Chevrolet S10 2WD
- 2003 GMC Sonoma 2WD
Fitment Notes
DSE 041758DS is designed for 1982-2003 Chevrolet S10, GMC S15, and GMC Sonoma 2WD applications. It is not compatible with Crew Cab trucks. The system replaces the factory leaf-spring rear suspension and is optimized for a 5-inch to 6-inch lowered ride height. This version includes Detroit Speed weld-on axle bracket kit 200173DS and is compatible with Detroit Speed Ford 9-inch rear housing options. The factory fuel tank is not compatible with the QUADRALink installation. Detroit Speed specifies fuel tank 080193DS for use with this system. Installation requires minor cutting and drilling.
FAQs
What shocks are included with DSE 041758DS?
DSE 041758DS includes QA1 double-adjustable coilover shocks with 18 clicks of compression and rebound adjustment. This gives you substantial control over rear suspension damping for street, handling, and traction-focused setups.
Does DSE 041758DS include the rear axle brackets?
Yes. This version includes Detroit Speed axle bracket kit 200173DS. The axle brackets are welded to the rear axle housing, while the QUADRALink chassis installation uses factory-location mounting provisions with minor cutting and drilling required.
Can I keep the factory fuel tank with DSE 041758DS?
No. Detroit Speed specifically states that the QUADRALink system is not compatible with the factory fuel tank. Detroit Speed fuel tank 080193DS is designed for use with this suspension package.
Why Buy Detroit Speed from Beefcake Racing?
Beefcake Racing is your source for Detroit Speed suspension components and complete performance solutions for S10, S15, and Sonoma builds. Our team can help you select the correct QUADRALink configuration, rear axle housing, fuel system components, and supporting suspension parts for your project. Questions about DSE 041758DS or your rear suspension setup? Email sales@beefcakeracing.com or call 1-855-827-7223 for assistance.
