DSE QuadraLink Rear Suspension Kit - Weld-In Axle Brackets - Single-Adjustable Shocks (041754-SDS) - 1967 - 1972 Chevrolet C10 / GMC C15
Upgrade your 1967-1972 Chevrolet C10 or GMC C15 with the Detroit Speed QUADRALink Rear Suspension Kit and give your classic truck the rear suspension control, ride quality, and stance to match a serious performance build. DSE 041754-SDS replaces the original truck-arm rear suspension with Detroit Speed's performance-focused 4-link geometry and combines it with single-adjustable DSE/JRi coilover shocks for added suspension tuning. This version uses weld-on axle brackets designed for axles with 3-inch diameter axle tubes, making it an excellent choice when building around a compatible rear axle and a permanent welded installation.
Detroit Speed's patented Swivel-Link technology works with tuned high-durometer rubber bushings to let the suspension articulate smoothly and quietly without binding. An adjustable horizontal track bar precisely controls lateral rear axle location during hard cornering and provides roll-center adjustment at different ride heights. The single-adjustable DSE/JRi coilovers add useful tuning capability while the 200 pounds per inch springs, adjustable 5.5-inch to 7.5-inch drop range, frame notch components, adjustable upper shock mounts, and integrated 4-link hardware create a complete rear suspension package engineered for better handling, ride quality, and stance.
Specifications
- Part Number: 041754-SDS
- Product Type: QUADRALink Rear Suspension Kit
- Position: Rear
- Application: 1967-1972 Chevrolet C10 / GMC C15
- Drive Configuration: 2-Wheel Drive
- Original Rear Suspension Required: Truck Arm / Coil Spring
- Shock Type: Single-Adjustable
- Shock Design: DSE/JRi Coilover
- Suspension Design: 4-Link with Adjustable Horizontal Track Bar
- Ride Height Adjustment Range: 5.5 inches to 7.5 inches of Drop
- Spring Rate: 200 pounds per inch
- Spring Free Length: 10 inches
- Coilover Springs Included: Yes
- Axle: 3-Inch Axle Tubes
- Axle Brackets: Weld-On
- Track Bar: Adjustable
- Track Bar Included: Yes
- Frame Notch: Included
- Upper Shock Mount Adjustment: 1 inch from Nominal Position
- Link Technology: Detroit Speed Swivel-Link
- Link Bushings: Tuned High-Durometer Rubber
- Chassis Brackets: Included
- Installation Hardware: Included
- Finish: Powder-Coated 4-Link Suspension Components
Features
- Upgrades the original truck-arm rear suspension to Detroit Speed QUADRALink 4-link geometry
- Designed for 1967-1972 trucks originally equipped with truck-arm and coil-spring rear suspension
- Adjustable ride height provides a 5.5-inch to 7.5-inch drop for dialing in the truck's stance
- DSE/JRi single-adjustable coilover shocks provide additional suspension tuning capability
- Includes 200 pounds per inch coilover springs with a 10-inch free length
- Patented Swivel-Link technology allows smooth suspension articulation without binding
- Tuned high-durometer rubber bushings promote smooth and quiet suspension movement
- Swivel-Links allow pinion angle and wheelbase adjustment without unbolting the links from the truck
- Adjustable horizontal track bar provides precise lateral rear axle location during hard cornering
- Track bar adjustment provides roll-center control at different ride heights
- Rear crossmembers add strength and rigidity to the rear body and frame section
- Weld-on axle brackets are designed for axles with 3-inch diameter axle tubes
- Laser-cut brackets are designed for compatibility with the original axle, wiring, and brake lines
- Adjustable upper shock mount relocates 1 inch from nominal, allowing ride-height changes without affecting shock travel
- Included C-Notch plate provides additional axle clearance at lower ride heights

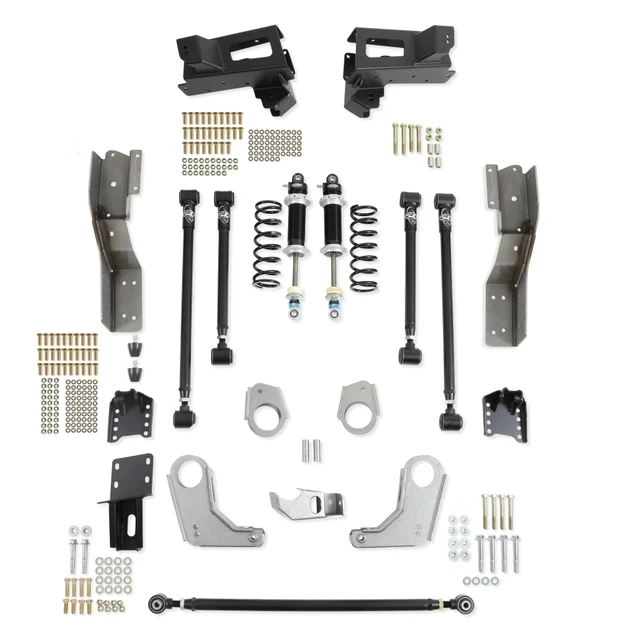

- Includes adjustable Detroit Speed Swivel-Links, coilover shocks and springs, frame notch, chassis brackets, and installation hardware
- Powder-coated 4-link suspension components provide corrosion protection and a finished appearance
- Engineered to improve ride quality and stance for daily driving and light-duty hauling
Fitment
- 1967 Chevrolet C10
- 1967 GMC C15
- 1968 Chevrolet C10
- 1968 GMC C15
- 1969 Chevrolet C10
- 1969 GMC C15
- 1970 Chevrolet C10
- 1970 GMC C15
- 1971 Chevrolet C10
- 1971 GMC C15
- 1972 Chevrolet C10
- 1972 GMC C15
Fitment Notes
DSE 041754-SDS is designed for 2-wheel-drive 1967-1972 Chevrolet C10 and GMC C15 trucks originally equipped with truck-arm and coil-spring rear suspension. It does not fit trucks originally equipped with leaf-spring rear suspension. The weld-on axle brackets are designed for axles with 3-inch diameter axle tubes. GMC applications must have been factory equipped with the optional truck-arm and coil-spring rear suspension. C20 and C25 trucks originally equipped with truck-arm and coil-spring rear suspension can also use this system, although Detroit Speed notes that load capacity will be reduced and recommends the weld-on axle bracket configuration for these applications. Basic fabrication skills including measuring, cutting, and drilling are required. Detroit Speed identifies Holley fuel tank 19-185 as compatible with the QUADRALink rear suspension. The suspension and compatible fuel tank require custom exhaust routing.
FAQs
What is the difference between DSE 041754-SDS and 041753-SDS?
Both kits use single-adjustable coilover shocks for properly equipped 1967-1972 C10 and C15 trucks. DSE 041754-SDS uses weld-on axle brackets designed for 3-inch diameter axle tubes, while 041753-SDS uses bolt-on axle brackets with the stock rear axle.
Will DSE 041754-SDS fit a factory leaf-spring truck?
No. Detroit Speed specifies this QUADRALink system for 2-wheel-drive trucks originally equipped with truck-arm and coil-spring rear suspension. It does not fit trucks originally equipped with rear leaf springs.
What shocks are included with DSE 041754-SDS?
The kit includes DSE/JRi single-adjustable coilover shocks, giving you additional suspension tuning capability compared with the non-adjustable 041754DS configuration.
