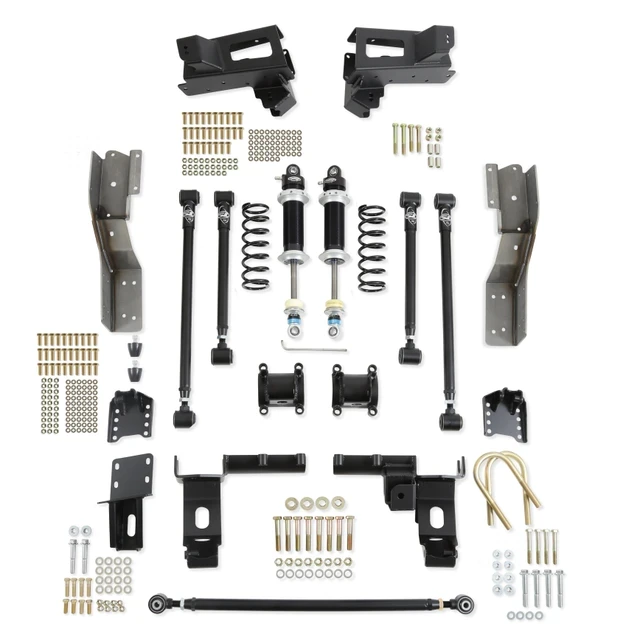

DSE QuadraLink Rear Suspension Kit - Bolt-In Axle Brackets - Single-Adjustable Shocks (041753-SDS) - 1967 - 1972 Chevrolet C10 / GMC C15
Give your 1967-1972 Chevrolet C10 or GMC C15 a major upgrade in rear suspension control, ride quality, and stance with the Detroit Speed QUADRALink Rear Suspension Kit. DSE 041753-SDS replaces the original truck-arm rear suspension with Detroit Speed's performance-focused 4-link geometry and adds DSE/JRi single-adjustable coilover shocks for useful suspension tuning. Bolt-on axle brackets are designed to work with the factory rear axle, while an adjustable 5.5-inch to 7.5-inch drop range lets you dial in the aggressive stance these classic GM trucks deserve.
Detroit Speed's patented Swivel-Link technology works with tuned high-durometer rubber bushings to let the suspension fully articulate with smooth, quiet motion instead of binding. An adjustable horizontal track bar precisely controls lateral rear axle location during hard cornering and provides roll-center adjustment at different ride heights. The single-adjustable DSE/JRi coilovers give you additional control over suspension response without stepping all the way up to a double-adjustable shock package. Combined with 200 pounds per inch coilover springs, adjustable Swivel-Links, frame notch components, chassis brackets, and installation hardware, 041753-SDS delivers an integrated rear suspension package built to make a properly equipped C10 or C15 drive as good as its lowered stance looks.
Specifications
- Part Number: 041753-SDS
- Product Type: QUADRALink Rear Suspension Kit
- Position: Rear
- Application: 1967-1972 Chevrolet C10 / GMC C15
- Drive Configuration: 2-Wheel Drive
- Original Rear Suspension Required: Truck Arm / Coil Spring
- Shock Type: Single-Adjustable
- Shock Design: DSE/JRi Coilover
- Suspension Design: 4-Link with Adjustable Horizontal Track Bar
- Ride Height Adjustment Range: 5.5 inches to 7.5 inches of Drop
- Spring Rate: 200 pounds per inch
- Spring Free Length: 10 inches
- Coilover Springs Included: Yes
- Axle: Stock
- Axle Brackets: Bolt-On
- Track Bar: Included and Adjustable
- Frame Notch: Included
- Upper Shock Mount Adjustment: 1 inch from Nominal Position
- Link Technology: Detroit Speed Swivel-Link
- Link Bushings: Tuned High-Durometer Rubber
- Installation Hardware: Included
- Finish: Powder-Coated Suspension Components
Features
- Upgrades the original truck-arm rear suspension to Detroit Speed QUADRALink 4-link geometry
- Designed for 1967-1972 2-wheel-drive trucks originally equipped with truck-arm and coil-spring rear suspension
- Adjustable 5.5-inch to 7.5-inch drop range lets you dial in the truck's stance
- DSE/JRi single-adjustable coilover shocks provide additional suspension tuning capability
- 200 pounds per inch coilover springs with a 10-inch free length
- Patented Swivel-Link technology allows smooth suspension articulation without binding
- Tuned high-durometer rubber bushings provide smooth and quiet suspension movement
- Swivel-Links allow pinion angle and wheelbase adjustment without unbolting the links from the truck
- Adjustable horizontal track bar provides precise lateral rear axle location during hard cornering
- Track bar adjustment provides roll-center control at different ride heights
- Rear crossmembers add strength and rigidity to the rear body and frame section
- Bolt-on axle brackets are designed for use with the factory rear axle
- Bolt-on axle bracket configuration provides a 100 percent bolt-in axle installation
- Laser-cut brackets are compatible with the original axle, wiring, and brake lines
- Adjustable upper shock mount relocates 1 inch from nominal to change ride height without affecting shock travel
- Included C-Notch plate creates additional axle clearance at lower ride heights
- Includes adjustable Detroit Speed Swivel-Links, coilover shocks and springs, frame notch, chassis brackets, and installation hardware
- Powder-coated 4-link components provide corrosion protection and a clean finished appearance
- Engineered to improve ride quality and stance for daily driving and light-duty hauling
Fitment
- 1967 Chevrolet C10
- 1967 GMC C15
- 1968 Chevrolet C10
- 1968 GMC C15
- 1969 Chevrolet C10
- 1969 GMC C15
- 1970 Chevrolet C10
- 1970 GMC C15
- 1971 Chevrolet C10
- 1971 GMC C15
- 1972 Chevrolet C10
- 1972 GMC C15
Fitment Notes
DSE 041753-SDS fits 2-wheel-drive 1967-1972 Chevrolet C10 and GMC C15 trucks originally equipped with truck-arm and coil-spring rear suspension. It does not fit trucks originally equipped with leaf-spring rear suspension. Most Chevrolet C10 and C20 trucks were originally equipped with truck-arm and coil-spring rear suspension, although leaf springs were optional. GMC applications must have been factory equipped with the optional truck-arm and coil-spring rear suspension. C20 and C25 trucks equipped with the correct factory suspension can also use this system, but Detroit Speed notes that load capacity will be reduced and recommends the weld-on axle bracket configuration for those applications. Basic fabrication skills including measuring, cutting, and drilling are required. Detroit Speed identifies Holley fuel tank 19-185 as compatible with the QUADRALink rear suspension. This suspension system and fuel tank require custom exhaust routing.
FAQs
Will DSE 041753-SDS fit a truck that originally came with rear leaf springs?
No. Detroit Speed specifies 041753-SDS for 2-wheel-drive trucks originally equipped with truck-arm and coil-spring rear suspension. It does not fit factory leaf-spring rear suspension applications.
What shocks are included with DSE 041753-SDS?
The kit includes DSE/JRi single-adjustable coilover shocks. This configuration provides additional suspension tuning capability while remaining well suited to street-driven performance trucks.
How much does DSE 041753-SDS lower a C10 or C15?
Detroit Speed specifies an adjustable ride-height range of 5.5 inches to 7.5 inches of drop. The adjustable upper shock mount and included C-Notch components help accommodate the lowered stance while maintaining shock travel and additional axle clearance.
