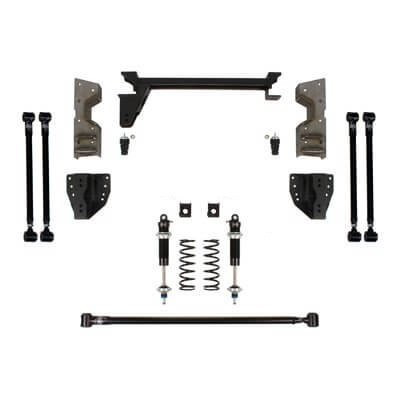

DSE QuadraLink Rear Suspension Kit - No Axle Brackets - Single-Adjustable Shocks (041752-SDS) - 1973 - 1987 Chevrolet C10 / GMC C15
Bring modern rear suspension performance and useful shock tuning to your 1973-1987 Chevrolet C10 or GMC C15 with the Detroit Speed QUADRALink Rear Suspension Kit. DSE 041752-SDS replaces the factory trailing-arm suspension with Detroit Speed's performance-focused 4-link geometry, giving your Squarebody improved rear axle control, handling, ride quality, and stance. This version includes single-adjustable coilover shocks but does not include axle brackets, making it the right configuration for a build using a rear-end assembly already equipped with the required QUADRALink axle mounting provisions.
Detroit Speed's patented Swivel-Link technology combines with tuned high-durometer rubber bushings to let the suspension articulate smoothly and quietly without binding. The horizontal adjustable track bar precisely controls lateral rear axle location during hard cornering and allows roll-center adjustment at different ride heights, while the rear crossmembers add strength and rigidity to the rear body and frame section. Single-adjustable shocks feature Detroit Tuned valving plus an installed rebound adjustment knob, allowing you to fine-tune shock response with a simple adjustment while maintaining excellent street ride quality. An adjustable 5-inch to 7.5-inch drop range, coilover springs, adjustable upper shock mounts, and C-Notch provisions complete a package designed to give your C10 or C15 the stance and suspension control to match the rest of the build.
Specifications
- Part Number: 041752-SDS
- Product Type: QUADRALink Rear Suspension Kit
- Position: Rear
- Shock Type: Single-Adjustable
- Shock Valving: Detroit Tuned
- Shock Adjustment: Rebound Adjustment with Installed Knob
- Suspension Design: 4-Link with Horizontal Track Bar
- Ride Height Adjustment Range: 5 inches to 7.5 inches of Drop
- Axle Configuration: Without Axle Brackets
- Axle Brackets: Not Included
- Link Technology: Detroit Speed Swivel-Link
- Link Bushings: Tuned High-Durometer Rubber
- Rear Axle Lateral Control: Adjustable Horizontal Track Bar
- Upper Shock Mount Adjustment: 1 inch Up or Down from Nominal Position
- C-Notch Plate: Included
- Coilover Shocks: Included
- Coilover Springs: Included
- Installation Hardware: Included
- C-Notch Cut Template: Included
- Suspension Finish: Powder Coat
Features
- Upgrades the factory trailing-arm rear suspension with Detroit Speed QUADRALink 4-link geometry
- Adjustable ride height provides a 5-inch to 7.5-inch drop for dialing in the truck's stance
- Designed to improve ride quality and stance for daily driving and light-duty hauling
- Patented Swivel-Link technology allows smooth suspension articulation without binding
- Tuned high-durometer rubber bushings provide smooth and quiet suspension movement
- Swivel-Links allow pinion angle and wheelbase adjustment without unbolting the links from the truck
- Single-adjustable shocks feature Detroit Tuned valving for performance-focused ride control
- Installed rebound adjustment knob makes shock tuning quick and straightforward
- Single-adjustable shock package provides tuning capability while maintaining excellent street ride quality
- Horizontal track bar provides precise lateral rear axle location during hard cornering
- Adjustable track bar provides roll-center control at different ride heights
- Rear crossmembers add strength and rigidity to the rear body and frame section
- Includes adjustable Detroit Speed Swivel-Links, coilover shocks, and coilover springs
- Axle brackets are not included with this configuration
- Designed for builds using a rear-end assembly with the required QUADRALink axle mounting provisions
- Adjustable upper shock mounts can be relocated 1 inch up or down from the nominal position
- Upper shock mount adjustment allows ride-height changes without affecting available shock travel
- Included C-Notch plate provides additional axle clearance at lower ride heights
- Includes installation hardware and C-Notch cut template
- Powder-coated 4-link suspension components provide corrosion protection and a finished appearance
Fitment
- 1973 Chevrolet C10
- 1973 GMC C15
- 1974 Chevrolet C10
- 1974 GMC C15
- 1975 Chevrolet C10
- 1975 GMC C15
- 1976 Chevrolet C10
- 1976 GMC C15
- 1977 Chevrolet C10
- 1977 GMC C15
- 1978 Chevrolet C10
- 1978 GMC C15
- 1979 Chevrolet C10
- 1979 GMC C15
- 1980 Chevrolet C10
- 1980 GMC C15
- 1981 Chevrolet C10
- 1981 GMC C15
- 1982 Chevrolet C10
- 1982 GMC C15
- 1983 Chevrolet C10
- 1983 GMC C15
- 1984 Chevrolet C10
- 1984 GMC C15
- 1985 Chevrolet C10
- 1985 GMC C15
- 1986 Chevrolet C10
- 1986 GMC C15
- 1987 Chevrolet C10
- 1987 GMC C15
Fitment Notes
DSE 041752-SDS is designed for 1973-1987 Chevrolet C10 and GMC C15 applications. Axle brackets are not included with this configuration, so the rear-end assembly must have the required QUADRALink axle mounting provisions. The system provides an adjustable 5-inch to 7.5-inch drop range. Its adjustable upper shock mounts can be repositioned 1 inch up or down from nominal to change ride height without affecting shock travel, while the included C-Notch plate provides additional axle clearance at lower ride heights.
FAQs
Does DSE 041752-SDS include axle brackets?
No. Detroit Speed specifically identifies 041752-SDS as the QUADRALink configuration without axle brackets. The rear-end assembly must have the required QUADRALink axle mounting provisions.
What adjustment do the shocks on DSE 041752-SDS provide?
The included single-adjustable shocks feature Detroit Tuned valving and an installed rebound adjustment knob. This provides convenient rebound tuning while retaining excellent ride quality for street use.
How much can DSE 041752-SDS lower a C10 or C15?
Detroit Speed specifies an adjustable ride-height range of 5 inches to 7.5 inches of drop. Adjustable upper shock mounts and the included C-Notch plate help accommodate changes in ride height while maintaining shock travel and additional axle clearance.
