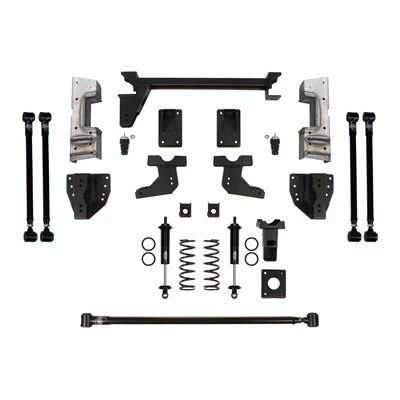

DSE QuadraLink Rear Suspension Kit - Bolt-In Axle Brackets - Non-Adjustable Shocks (041750DS) - 1973 - 1987 Chevrolet C10 / GMC C15
Transform the rear suspension of your 1973-1987 Chevrolet C10 or GMC C15 with the Detroit Speed QUADRALink Rear Suspension Kit. DSE 041750DS replaces the factory trailing-arm suspension with Detroit Speed's performance-focused 4-link geometry, giving your Squarebody improved rear axle control, ride quality, handling, and the ability to dial in the truck's stance. This version combines non-adjustable coilover shocks with bolt-in axle brackets for a 100 percent bolt-on installation that does not require welding.
At the heart of the system is Detroit Speed's patented Swivel-Link technology paired with tuned high-durometer rubber bushings, allowing the suspension to articulate smoothly and quietly without binding. A horizontal adjustable track bar precisely locates the rear axle laterally during hard cornering and provides roll-center control at different ride heights. The included rear crossmembers add strength and rigidity to the rear frame structure, while adjustable upper shock mounts and the supplied C-Notch components provide the clearance and geometry needed to take advantage of the system's 5-inch to 7.5-inch drop range.
Specifications
- Part Number: 041750DS
- Product Type: QUADRALink Rear Suspension Kit
- Position: Rear
- Shock Type: Non-Adjustable
- Suspension Design: 4-Link with Horizontal Track Bar
- Ride Height Adjustment Range: 5 inches to 7.5 inches of Drop
- Axle: Stock
- Axle Brackets: Bolt-In
- Installation: 100 Percent Bolt-On
- Welding Required: No
- Link Technology: Detroit Speed Swivel-Link
- Link Bushings: Tuned High-Durometer Rubber
- Rear Axle Lateral Control: Adjustable Horizontal Track Bar
- Upper Shock Mount: Adjustable 1 inch Up or Down from Nominal Position
- C-Notch Plate: Included
- Coilover Shocks: Included
- Coilover Springs: Included
- Installation Hardware: Included
- C-Notch Cut Template: Included
- Finish: Black Powder Coat
Features
- Upgrades the factory trailing-arm rear suspension to Detroit Speed QUADRALink 4-link geometry
- Adjustable ride height provides a 5-inch to 7.5-inch drop for dialing in the truck's stance
- Designed to improve ride quality and handling for daily driving and light-duty hauling
- Patented Swivel-Link technology allows smooth, bind-free suspension articulation
- Tuned high-durometer rubber bushings provide smooth and quiet suspension movement
- Swivel-Links allow pinion angle and wheelbase adjustment without unbolting the links from the truck
- Horizontal track bar precisely controls lateral rear axle location during hard cornering
- Adjustable track bar provides roll-center control at different ride heights
- Rear crossmembers add strength and rigidity to the rear frame structure
- Includes non-adjustable coilover shocks for consistent, performance-focused ride control without external damping adjustments
- Includes coilover springs for ride-height adjustment
- Laser-cut bolt-in axle brackets are compatible with the original axle, wiring, and brake lines
- Adjustable upper shock mounts can be relocated 1 inch up or down from the nominal position
- Upper shock mount adjustment allows ride-height changes without compromising available shock travel
- Included C-Notch plates provide additional axle clearance at lower ride heights
- Powder-coated suspension components provide corrosion protection and a finished appearance
- Includes installation hardware and C-Notch cut template
- 100 percent bolt-on design eliminates welding during installation
Fitment
- 1973 Chevrolet C10
- 1973 GMC C15
- 1974 Chevrolet C10
- 1974 GMC C15
- 1975 Chevrolet C10
- 1975 GMC C15
- 1976 Chevrolet C10
- 1976 GMC C15
- 1977 Chevrolet C10
- 1977 GMC C15
- 1978 Chevrolet C10
- 1978 GMC C15
- 1979 Chevrolet C10
- 1979 GMC C15
- 1980 Chevrolet C10
- 1980 GMC C15
- 1981 Chevrolet C10
- 1981 GMC C15
- 1982 Chevrolet C10
- 1982 GMC C15
- 1983 Chevrolet C10
- 1983 GMC C15
- 1984 Chevrolet C10
- 1984 GMC C15
- 1985 Chevrolet C10
- 1985 GMC C15
- 1986 Chevrolet C10
- 1986 GMC C15
- 1987 Chevrolet C10
- 1987 GMC C15
Fitment Notes
DSE 041750DS is designed for 1973-1987 Chevrolet C10 and GMC C15 trucks. This configuration uses bolt-in axle brackets designed for compatibility with the original axle, wiring, and brake lines. The complete system is designed as a 100 percent bolt-on installation with no welding required. The included C-Notch components provide additional axle clearance when setting the truck at lower ride heights.
FAQs
Does DSE 041750DS require welding?
No. The 041750DS configuration uses bolt-in axle brackets and is designed by Detroit Speed as a 100 percent bolt-on installation. This distinguishes it from QUADRALink configurations that use weld-in axle brackets.
How much can the DSE 041750DS lower a C10 or C15?
Detroit Speed specifies an adjustable ride-height range from 5 inches to 7.5 inches of drop, allowing the truck's stance to be tailored while maintaining the intended QUADRALink suspension geometry.
Can the pinion angle be adjusted with the QUADRALink installed?
Yes. Detroit Speed's Swivel-Links allow the pinion angle and/or wheelbase to be adjusted without unbolting the link from the truck, making setup and suspension tuning more straightforward.
