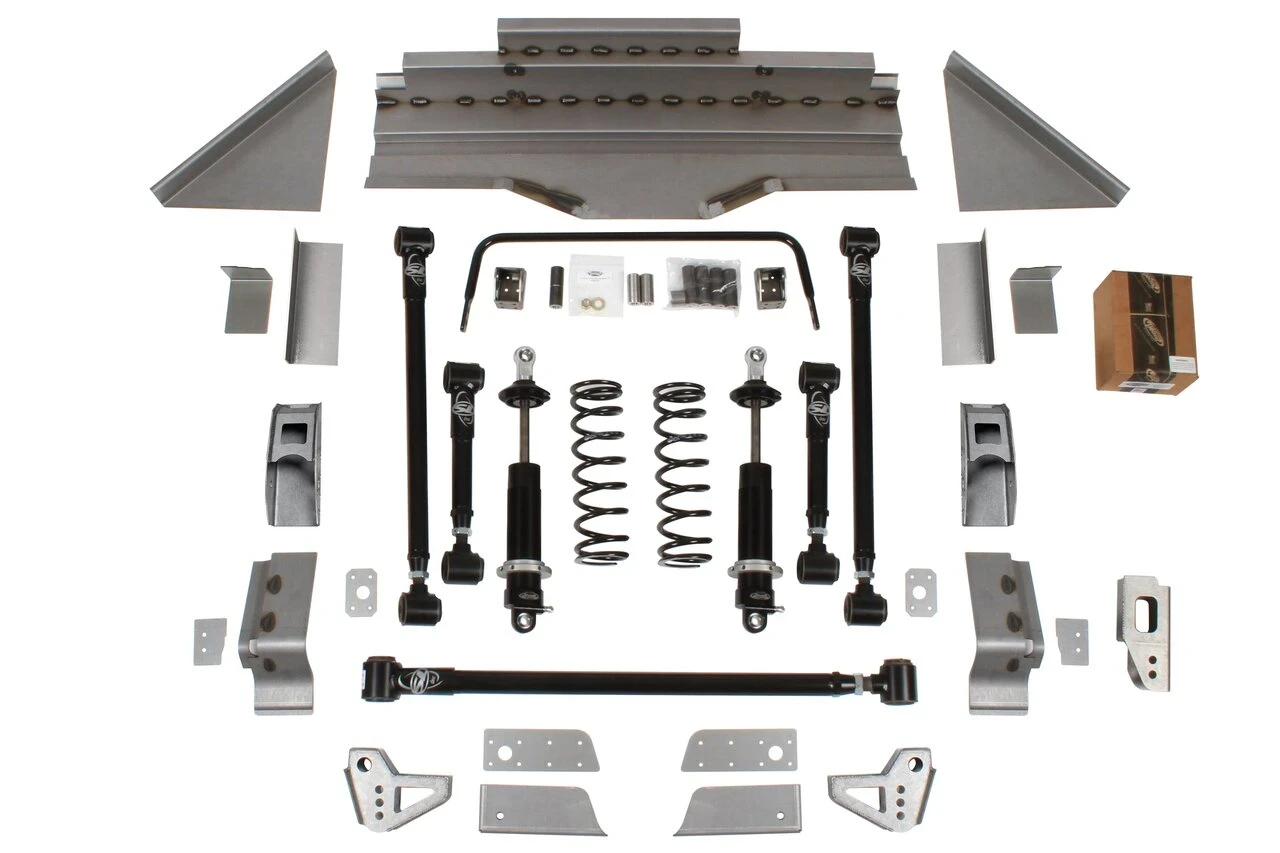

DSE QuadraLink Rear Suspension Kit - No Axle Brackets - Non-Adjustable Shocks (041733DS) - 1964 - 1970 Ford Mustang
Transform the rear suspension of your 1964-1970 Ford Mustang with the Detroit Speed QUADRALink Rear Suspension Kit. Designed to replace the original leaf spring suspension, DSE 041733DS combines Detroit Speed's performance-focused 4-link geometry with DSE/JRi non-adjustable coilover shocks for improved handling, rear axle control, ride quality, and chassis response. Detroit Speed's patented Swivel-Link technology allows the suspension to articulate smoothly without binding while using tuned high-durometer rubber bushings instead of heim joints or urethane bushings.
The 041733DS configuration features DSE/JRi aluminum-body non-adjustable coilover shocks with Detroit Tuned valving, delivering performance-focused damping without requiring external shock adjustments. Long upper links provide excellent pinion and U-joint angle control, while the adjustable Panhard rod precisely locates the rear axle laterally during hard cornering and allows roll-center control as ride height changes. The upper floor pan crossmember assembly adds strength and rigidity to the rear body and frame section, while the included rear sway bar further improves suspension control. This version does not include axle brackets and is intended for use with complete rear-end assemblies equipped with the appropriate QUADRALink mounting provisions.
Specifications
- Part Number: 041733DS
- Product Type: QUADRALink Rear Suspension Kit
- Shock Type: Non-Adjustable
- Shock Design: DSE/JRi Aluminum-Body Coilover
- Shock Valving: Detroit Tuned
- Spring Rate: 175 pounds per inch
- Spring Free Length: 11 inches
- Axle Configuration: Without Axle Brackets
- Axle Brackets: Not Included
- Link Technology: Patented Detroit Speed Swivel-Link
- Swivel-Link Patent Number: 7,398,984
- Link Bushings: Tuned High-Durometer Rubber
- Rear Axle Lateral Control: Adjustable Panhard Rod
- Rear Sway Bar: Included
- Rear Sway Bar Size: 0.750-inch OD x 0.156-inch Wall
- Suspension Link Finish: Satin Black Powder Coat
- Exhaust Compatibility: Designed for 3-inch Exhaust
- Spanner Tool: Included
Features
- Replaces the original Mustang leaf spring rear suspension with Detroit Speed QUADRALink 4-link geometry
- No-compromise suspension geometry engineered for improved handling performance
- Patented Swivel-Link technology provides smooth suspension articulation without binding
- Tuned high-durometer rubber bushings eliminate the need for heim joints or urethane bushings
- Swivel-Links allow pinion angle and wheelbase adjustment without unbolting the links from the vehicle
- Long upper links provide excellent pinion and U-joint angle control
- DSE/JRi aluminum-body non-adjustable coilover shocks feature Detroit Tuned valving
- Non-adjustable shock configuration provides performance-focused damping without requiring external shock tuning
- 175 pounds per inch coilover springs with an 11-inch free length
- Long adjustable Panhard rod provides precise rear axle lateral control during hard cornering
- Panhard rod adjustment provides roll-center control as ride height changes
- Adjustable mounting points maintain proper suspension geometry at different ride heights
- Upper floor pan crossmember assembly adds strength and rigidity to the rear body and frame section
- Includes 0.750-inch OD x 0.156-inch wall rear sway bar
- Rear sway bar includes end links, bushings, and mounting brackets
- Designed to work with Detroit Speed Mustang Mini-Tubs
- Designed to accommodate a 3-inch exhaust system
- Axle brackets are not included for use with complete rear-end assemblies equipped with the appropriate QUADRALink mounting provisions
- Includes a spanner tool for coilover adjustment
- Suspension links feature a satin black powder-coated finish
Fitment
- 1964 Ford Mustang
- 1965 Ford Mustang
- 1966 Ford Mustang
- 1967 Ford Mustang
- 1968 Ford Mustang
- 1969 Ford Mustang
- 1970 Ford Mustang
Fitment Notes
DSE 041733DS is designed for 1964-1970 Ford Mustang applications. Axle brackets are not included with this configuration, and Detroit Speed intends the kit for use with complete rear-end assemblies equipped with the appropriate QUADRALink mounting provisions. A narrowed fuel tank is required with the QUADRALink system. Detroit Speed lists 080123DS for fuel-injected applications, 080188DS for applications requiring a Holley fuel pump, 080122DS for carbureted applications, and 080151DS for the 1000 Series fuel pump. The system is also designed to work with Detroit Speed Mustang Mini-Tubs.
FAQs
Does DSE 041733DS include axle brackets?
No. Part number 041733DS is specifically the QUADRALink configuration without axle brackets. Detroit Speed intends this version for complete rear-end assemblies equipped with the appropriate QUADRALink mounting provisions.
Are the shocks included with DSE 041733DS adjustable?
No. The kit includes DSE/JRi aluminum-body non-adjustable coilover shocks with Detroit Tuned valving, providing performance-focused damping without requiring external shock adjustments.
Does DSE 041733DS require a narrowed fuel tank?
Yes. Detroit Speed specifies that a narrowed fuel tank is required with the Mustang QUADRALink system and offers multiple tank configurations based on the vehicle's fuel system requirements.
