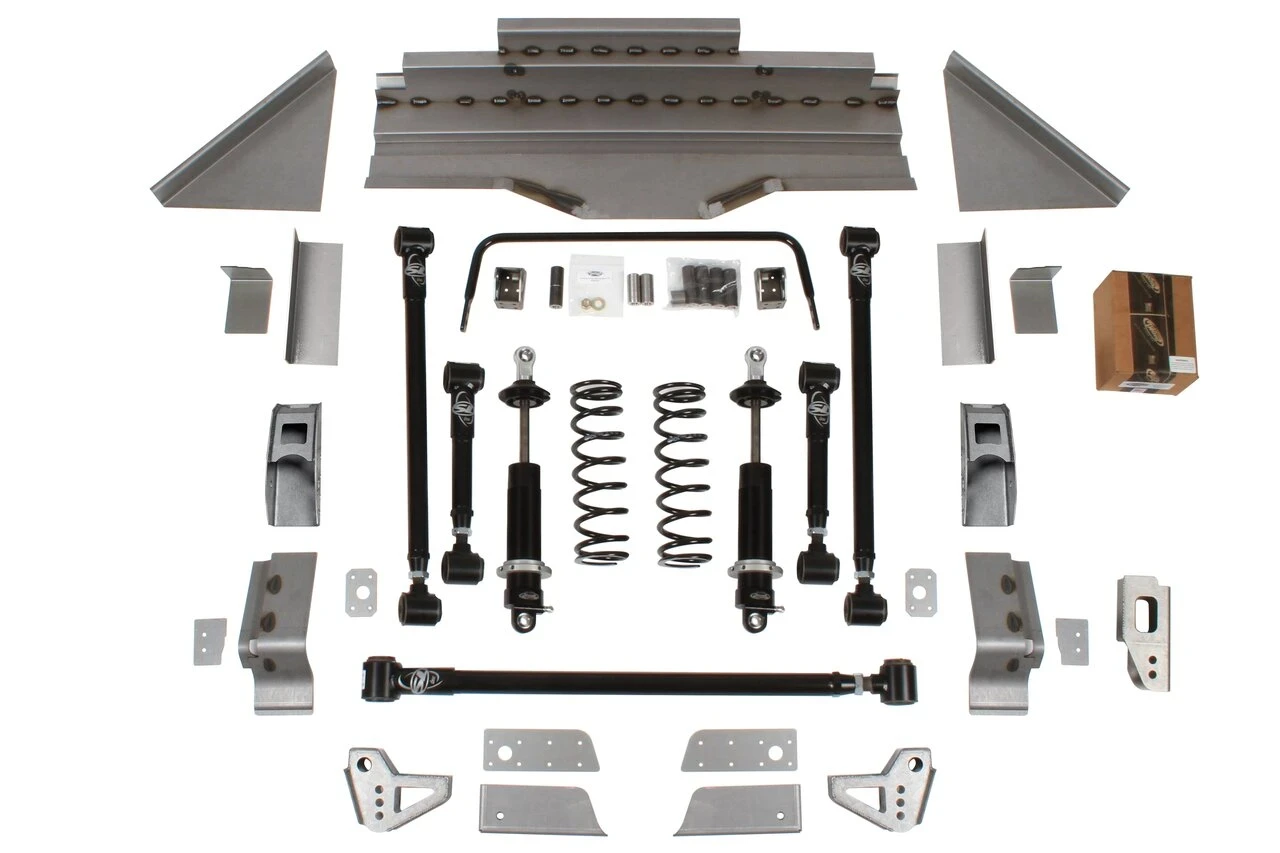

DSE QuadraLink Rear Suspension Kit - No Axle Brackets - Single-Adjustable Shocks (041733-SDS) - 1964 - 1970 Ford Mustang
Upgrade your 1964-1970 Ford Mustang from its original leaf spring rear suspension to the control, adjustability, and performance of the Detroit Speed QUADRALink Rear Suspension Kit. DSE 041733-SDS combines Detroit Speed's performance-focused 4-link geometry with single-adjustable DSE/JRi coilovers, giving you improved rear axle control and the ability to fine-tune shock response for your combination. Detroit Speed's patented Swivel-Link technology allows the suspension to articulate smoothly without binding while using tuned high-durometer rubber bushings instead of heim joints or urethane bushings.
The 041733-SDS configuration features DSE/JRi aluminum-body single-adjustable coilover shocks with Detroit Tuned valving plus an installed rebound adjustment knob for straightforward suspension tuning. Long upper links provide excellent pinion and U-joint angle control, while the adjustable Panhard rod provides precise lateral rear axle location during hard cornering and allows roll-center adjustment as ride height changes. The system also includes 175 pounds per inch coilover springs, an upper floor pan crossmember assembly that adds strength and rigidity to the rear structure, and a rear sway bar. Axle brackets are not included with 041733-SDS, making this version intended for complete rear-end assemblies equipped with the appropriate QUADRALink mounting provisions.
Specifications
- Part Number: 041733-SDS
- Product Type: QUADRALink Rear Suspension Kit
- Shock Type: Single-Adjustable
- Shock Design: DSE/JRi Aluminum-Body Coilover
- Shock Valving: Detroit Tuned
- Shock Adjustment: Rebound Adjustment with Installed Knob
- Spring Rate: 175 pounds per inch
- Spring Free Length: 11 inches
- Axle Configuration: Without Axle Brackets
- Axle Brackets: Not Included
- Link Technology: Patented Detroit Speed Swivel-Link
- Swivel-Link Patent Number: 7,398,984
- Link Bushings: Tuned High-Durometer Rubber
- Rear Axle Lateral Control: Adjustable Panhard Rod
- Rear Sway Bar: Included
- Rear Sway Bar Size: 0.750-inch OD x 0.156-inch Wall
- Suspension Link Finish: Satin Black Powder Coat
- Exhaust Compatibility: Designed for 3-inch Exhaust
- Spanner Tool: Included
Features
- Replaces the original Mustang leaf spring rear suspension with Detroit Speed QUADRALink 4-link geometry
- No-compromise suspension geometry engineered for improved handling and rear axle control
- Patented Swivel-Link technology provides smooth suspension articulation without binding
- Tuned high-durometer rubber bushings provide controlled articulation without heim joints or urethane bushings
- Swivel-Links allow pinion angle and wheelbase adjustment without unbolting the links from the vehicle
- Long upper links provide excellent pinion and U-joint angle control
- DSE/JRi aluminum-body single-adjustable coilover shocks feature Detroit Tuned valving
- Installed rebound adjustment knob makes shock tuning quick and straightforward
- Single-adjustable shocks provide added tuning capability while maintaining excellent street ride quality
- 175 pounds per inch coilover springs with an 11-inch free length
- Long adjustable Panhard rod provides precise rear axle lateral control during hard cornering
- Panhard rod adjustment provides roll-center control as ride height changes
- Adjustable mounting points help maintain correct suspension geometry at different ride heights
- Upper floor pan crossmember assembly significantly stiffens the rear body and frame section
- Includes 0.750-inch OD x 0.156-inch wall rear sway bar
- Rear sway bar includes end links, bushings, and mounting brackets
- Designed to work with Detroit Speed Mustang Mini-Tubs
- Designed to accommodate a 3-inch exhaust system
- Axle brackets are not included for use with complete rear-end assemblies equipped with the appropriate QUADRALink mounting provisions
- Includes a spanner tool for easy shock adjustments
- Suspension links feature a satin black powder-coated finish
Fitment
- 1964 Ford Mustang
- 1965 Ford Mustang
- 1966 Ford Mustang
- 1967 Ford Mustang
- 1968 Ford Mustang
- 1969 Ford Mustang
- 1970 Ford Mustang
Fitment Notes
DSE 041733-SDS is designed for 1964-1970 Ford Mustang applications. Axle brackets are not included with this configuration, and Detroit Speed intends the kit for use with complete rear-end assemblies equipped with the appropriate QUADRALink mounting provisions. A narrowed fuel tank is required with the QUADRALink system. Detroit Speed lists 080123DS for fuel-injected applications, 080188DS for applications requiring a Holley fuel pump, 080122DS for carbureted applications, and 080151DS for the 1000 Series fuel pump. The system is also designed to work with Detroit Speed Mustang Mini-Tubs.
FAQs
Does DSE 041733-SDS include axle brackets?
No. Part number 041733-SDS is specifically the QUADRALink configuration without axle brackets. It is intended for complete rear-end assemblies equipped with the appropriate QUADRALink mounting provisions.
What is adjustable on the shocks included with DSE 041733-SDS?
The DSE/JRi single-adjustable coilovers feature Detroit Tuned valving plus an installed knob for rebound adjustment. This allows you to fine-tune shock response while maintaining excellent street ride quality.
Does DSE 041733-SDS require a narrowed fuel tank?
Yes. Detroit Speed specifies that a narrowed fuel tank is required with the Mustang QUADRALink system and lists multiple tank configurations for different fuel system requirements.
