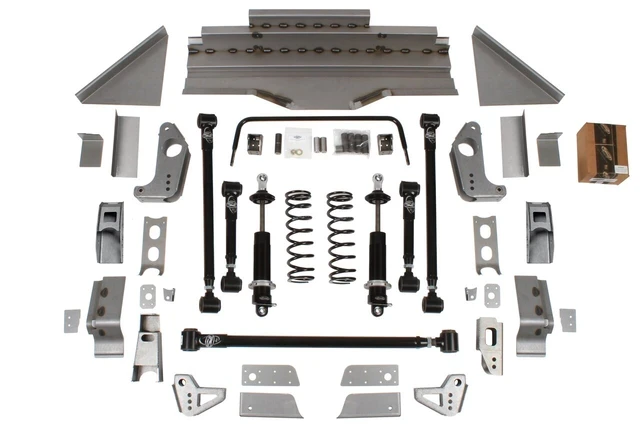

DSE QuadraLink Rear Suspension Kit - Remote-Reservoir Double-Adjustable Shocks (041731-RDS) - 1964 - 1970 Ford Mustang
Give your 1964-1970 Ford Mustang the rear suspension control and adjustability of a serious modern performance build with the Detroit Speed QUADRALink Rear Suspension Kit. DSE 041731-RDS replaces the original leaf spring suspension with Detroit Speed's performance-focused 4-link geometry and pairs it with remote-reservoir double-adjustable coilovers for extensive chassis tuning. Patented Swivel-Link technology allows the suspension to articulate smoothly without binding, while tuned high-durometer rubber bushings provide controlled, quiet movement without relying on heim joints or urethane bushings.
The 041731-RDS takes the Mustang QUADRALink package to its highest level of shock adjustability with DSE/JRi aluminum-body double-adjustable remote-reservoir coilovers featuring Detroit Tuned valving. The remote-canister design incorporates a gas-charged bladder to provide high-frequency and low-speed damping control, while billet aluminum mounts secure the remote canisters to the vehicle. Long upper links provide excellent pinion and U-joint angle control, and the adjustable Panhard rod precisely locates the rear axle laterally during hard cornering while allowing roll-center adjustment for different ride heights. The system also includes 175 pounds per inch coilover springs, a rear sway bar, an upper floor pan crossmember assembly for added chassis rigidity, and weld-on axle brackets for 3-inch axle tubes.
Specifications
- Part Number: 041731-RDS
- Product Type: QUADRALink Rear Suspension Kit
- Shock Type: Double-Adjustable Remote Reservoir
- Shock Design: DSE/JRi Aluminum-Body Coilover with Remote Canister
- Shock Valving: Detroit Tuned
- Remote Reservoir Design: Gas-Charged Bladder
- Remote Canister Mounts: Billet Aluminum
- Spring Rate: 175 pounds per inch
- Spring Free Length: 11 inches
- Axle: Stock
- Axle Brackets: Weld-On
- Required Axle Tube Diameter: 3 inches
- Link Technology: Patented Detroit Speed Swivel-Link
- Link Bushings: Tuned High-Durometer Rubber
- Rear Axle Lateral Control: Adjustable Panhard Rod
- Rear Sway Bar: Included
- Rear Sway Bar Size: 0.750-inch OD x 0.156-inch Wall
- Suspension Link Finish: Satin Black Powder Coat
- Exhaust Compatibility: Designed for 3-inch Exhaust
- Spanner Tool: Included
Features
- Replaces the original Mustang leaf spring rear suspension with Detroit Speed QUADRALink 4-link geometry
- Patented Swivel-Link technology provides smooth suspension articulation without binding
- Tuned high-durometer rubber bushings provide controlled and quiet suspension movement without heim joints
- Swivel-Links allow pinion angle and wheelbase adjustment without unbolting the links from the vehicle
- Long upper links provide excellent pinion and U-joint angle control
- DSE/JRi aluminum-body remote-reservoir coilover shocks feature Detroit Tuned valving
- Double-adjustable shock design provides extensive suspension tuning capability
- Gas-charged remote-canister bladder provides high-frequency and low-speed damping control
- Billet aluminum mounts secure the remote shock canisters to the vehicle
- 175 pounds per inch coilover springs with an 11-inch free length
- Long adjustable Panhard rod provides precise lateral rear axle control during hard cornering
- Adjustable mounting points allow proper suspension geometry at different ride heights
- Upper floor pan crossmember assembly significantly stiffens the rear body and frame section
- Includes 0.750-inch OD x 0.156-inch wall rear sway bar
- Rear sway bar includes end links, bushings, and mounting brackets
- Designed to work with Detroit Speed Mustang Mini-Tubs
- Designed to accommodate a 3-inch exhaust system
- Weld-on axle brackets require 3-inch axle tubes
- Includes a spanner tool for coilover adjustment
- Suspension links feature a satin black powder-coated finish
Fitment
- 1964 Ford Mustang
- 1965 Ford Mustang
- 1966 Ford Mustang
- 1967 Ford Mustang
- 1968 Ford Mustang
- 1969 Ford Mustang
- 1970 Ford Mustang
Fitment Notes
DSE 041731-RDS is designed for 1964-1970 Ford Mustang applications. The included weld-on axle brackets require 3-inch axle tubes. If you plan to order a complete rear-end assembly, Detroit Speed recommends ordering the corresponding QUADRALink kit without axle brackets. A narrowed fuel tank is required with the QUADRALink system. Detroit Speed lists 080123DS for fuel-injected applications, 080188DS for applications requiring a Holley fuel pump, 080122DS for carbureted applications, and 080151DS for the 1000 Series fuel pump. The system is designed to work with Detroit Speed Mustang Mini-Tubs.
FAQs
What makes the shocks in DSE 041731-RDS different from standard double-adjustable shocks?
The DSE/JRi shocks combine double-adjustable tuning with remote canisters containing gas-charged bladders for high-frequency and low-speed damping control. Billet aluminum mounts are included to secure the remote canisters to the Mustang.
Does DSE 041731-RDS require a narrowed fuel tank?
Yes. Detroit Speed specifies that a narrowed fuel tank is required with the Mustang QUADRALink system and offers multiple tank configurations for different fuel system requirements.
What axle tubes are required for DSE 041731-RDS?
The included weld-on axle brackets require 3-inch axle tubes. For a complete rear-end assembly already configured with the appropriate QUADRALink mounting provisions, Detroit Speed recommends ordering the corresponding kit without axle brackets.
Why Buy Detroit Speed from Beefcake Racing?
Beefcake Racing is your source for Detroit Speed suspension components and complete performance solutions for street, autocross, road course, and pro-touring builds. Our team can help you match the correct QUADRALink configuration, fuel system components, and supporting suspension parts to your Mustang project. Questions about DSE 041731-RDS or your rear suspension setup? Email sales@beefcakeracing.com or call 1-855-827-7223 for assistance.
