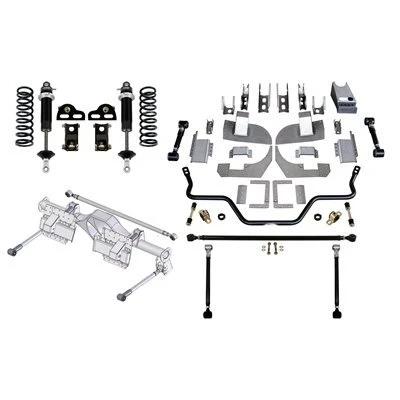

DSE QuadraLink Rear Suspension Kit - 3in Axle - Single-Adjustable Shocks (041722-SDS) - 1982 - 1992 Chevrolet Camaro / Pontiac Firebird
Upgrade your 1982-1992 Chevrolet Camaro or Pontiac Firebird with the Detroit Speed QUADRALink Rear Suspension Kit and replace the factory torque-arm configuration with a performance-focused 4-link system engineered for improved handling, rear axle control, and suspension tunability. Detroit Speed designed the QUADRALink with no-compromise suspension geometry and independently adjustable links, giving third-generation F-Body owners a serious foundation for street, autocross, road course, and pro-touring performance.
The 041722-SDS configuration is engineered for rear axle housings with 3-inch axle tubes and includes single-adjustable shocks with Detroit Tuned valving. An installed adjustment knob provides convenient rebound adjustment, allowing you to fine-tune shock response while maintaining excellent street ride quality. Upper and lower links incorporate Detroit Speed's Swivel-Link technology for smooth suspension articulation, while an adjustable track bar with cross-axis pivot bushings provides precise lateral axle control. The system adds upper link mounts to the stock unibody structure and relocates the lower links on the axle with adjustable adapter brackets, creating a comprehensive rear suspension upgrade built around the demands of a performance-driven third-generation Camaro or Firebird.
Specifications
- Part Number: 041722-SDS
- Product Type: QUADRALink Rear Suspension Kit
- Suspension Configuration: 4-Link
- Shock Type: Single-Adjustable
- Shock Valving: Detroit Tuned
- Shock Adjustment: Rebound Adjustment with Installed Knob
- Spring Rate: 275 pounds per inch
- Spring Free Length: 10 inches
- Axle Tube Diameter: 3 inches
- Axle Brackets: Weld-On
- Upper and Lower Link Design: Swivel-Link Technology
- Suspension Links: Independently Adjustable
- Track Bar: Adjustable with Cross-Axis Pivot Bushings
Features
- Eliminates the factory torque-arm rear suspension configuration
- Detroit Speed QUADRALink geometry engineered for high-performance handling and rear axle control
- Designed specifically for 1982-1992 Chevrolet Camaro and Pontiac Firebird applications
- Designed for rear axle housings with 3-inch axle tubes
- Includes weld-on axle brackets for 3-inch axle tubes
- Single-adjustable shocks feature Detroit Tuned valving
- Installed adjustment knob provides convenient rebound tuning
- Allows shock response to be fine-tuned while maintaining excellent street ride quality
- 275 pounds per inch springs with a 10-inch free length
- All suspension links are independently adjustable
- Upper and lower links incorporate Detroit Speed Swivel-Link technology
- Swivel-Link design promotes smooth suspension articulation
- Adds upper link mounts to the stock unibody structure
- Relocates the lower links on the axle using adjustable adapter brackets
- Adjustable track bar provides precise lateral rear axle control
- Track bar incorporates cross-axis pivot bushings for controlled articulation
Fitment
- 1982 Chevrolet Camaro
- 1982 Pontiac Firebird
- 1983 Chevrolet Camaro
- 1983 Pontiac Firebird
- 1984 Chevrolet Camaro
- 1984 Pontiac Firebird
- 1985 Chevrolet Camaro
- 1985 Pontiac Firebird
- 1986 Chevrolet Camaro
- 1986 Pontiac Firebird
- 1987 Chevrolet Camaro
- 1987 Pontiac Firebird
- 1988 Chevrolet Camaro
- 1988 Pontiac Firebird
- 1989 Chevrolet Camaro
- 1989 Pontiac Firebird
- 1990 Chevrolet Camaro
- 1990 Pontiac Firebird
- 1991 Chevrolet Camaro
- 1991 Pontiac Firebird
- 1992 Chevrolet Camaro
- 1992 Pontiac Firebird
Fitment Notes
DSE 041722-SDS is designed for 1982-1992 Chevrolet Camaro and Pontiac Firebird applications using rear axle housings with 3-inch axle tubes. The kit uses weld-on axle brackets. If you plan to order a complete rear-end assembly, Detroit Speed recommends ordering the corresponding QUADRALink kit without axle brackets.
FAQs
What is adjustable on the shocks included with DSE 041722-SDS?
The single-adjustable shocks feature an installed adjustment knob that allows rebound tuning. This gives you the ability to fine-tune shock response while retaining Detroit Speed's Detroit Tuned valving and excellent street ride quality.
What axle housing is DSE 041722-SDS designed for?
Detroit Speed designed 041722-SDS for rear axle housings with 3-inch axle tubes. This configuration uses weld-on axle brackets for the 3-inch tubes.
What factory suspension does DSE 041722-SDS replace?
The QUADRALink eliminates the factory torque-arm configuration used on the 1982-1992 Camaro and Firebird and replaces it with Detroit Speed's performance-oriented 4-link rear suspension system.
Why Buy Detroit Speed from Beefcake Racing?
Beefcake Racing is your source for Detroit Speed suspension components and complete performance solutions for street, autocross, road course, and pro-touring builds. Our team can help you match the correct QUADRALink configuration and supporting components to your third-generation F-Body project. Questions about DSE 041722-SDS or your rear suspension setup? Email sales@beefcakeracing.com or call 1-855-827-7223 for assistance.
