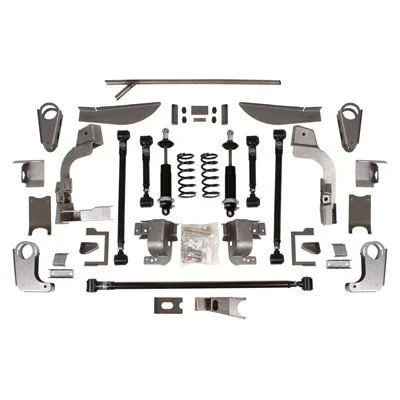

DSE QuadraLink Rear Suspension Kit - Non-Adjustable Shocks (041714DS) - 1970 - 1981 Pontiac Firebird
Bring modern rear suspension performance to your 1970-1981 Pontiac Firebird with the Detroit Speed QUADRALink Rear Suspension Kit. Designed to replace the original leaf spring suspension, the QUADRALink combines Detroit Speed's exclusive 4-link geometry with its patented Swivel-Link technology for improved handling, precise rear axle control, excellent ride quality, and smooth suspension articulation. The Swivel-Link design allows the suspension to pivot without binding, while tuned high-durometer rubber bushings eliminate the noise, wear, and compromised street manners associated with heim joints.
The 041714DS configuration includes DSE/JRi aluminum-body non-adjustable coilover shocks with Detroit Tuned valving, giving your second-generation Firebird performance-focused damping without the need for external shock adjustments. Long upper links provide excellent pinion and U-joint angle control, while improved anti-squat geometry helps keep the rear suspension composed under acceleration. A long adjustable Panhard rod precisely locates the rear axle laterally during hard cornering and allows roll center adjustment as ride height changes. The rear upper shock crossmember strengthens the rear body and frame section, while inboard-offset lower links provide additional tire clearance for performance-oriented wheel and tire combinations.
Specifications
- Part Number: 041714DS
- Product Type: QUADRALink Rear Suspension Kit
- Shock Type: Non-Adjustable
- Shock Construction: DSE/JRi Aluminum-Body Coilover
- Shock Valving: Detroit Tuned
- Spring Rate: 250 pounds per inch
- Spring Free Length: 8 inches
- Axle: Stock
- Axle Brackets: Weld-On
- Required Axle Tube Diameter: 3 inches
- Link Finish: Black Powder Coat
- Compatible Tub Configuration: Detroit Speed Mini-Tubs or Stock Tubs
Features
- Exclusive Detroit Speed 4-link geometry engineered for high-performance handling
- Patented Swivel-Link technology allows smooth, no-bind suspension articulation
- Swivel-Link design helps eliminate unwanted torsional loading caused by suspension bind
- Pinion angle and wheelbase can be adjusted without unbolting the links from the car
- Tuned high-durometer rubber bushings provide quiet, durable operation without heim joints
- DSE/JRi aluminum-body non-adjustable coilover shocks with Detroit Tuned valving
- 250 pounds per inch coilover springs with an 8-inch free length
- Long upper links provide excellent pinion and U-joint angle control
- Improved anti-squat geometry enhances rear suspension control under acceleration
- Long Panhard rod provides precise rear axle lateral control during hard cornering
- Adjustable Panhard rod provides roll center control as ride height changes
- Rear upper shock crossmember strengthens the rear body and frame section
- Lower links are offset inboard for additional tire clearance
- Designed to work with Detroit Speed Mini-Tubs or stock tubs
- Allows continued use of the stock rear seat
- Includes coilover springs
- Includes a spanner tool for coilover adjustment
- All suspension links are powder coated black
Fitment
- 1970 Pontiac Firebird
- 1971 Pontiac Firebird
- 1972 Pontiac Firebird
- 1973 Pontiac Firebird
- 1974 Pontiac Firebird
- 1975 Pontiac Firebird
- 1976 Pontiac Firebird
- 1977 Pontiac Firebird
- 1978 Pontiac Firebird
- 1979 Pontiac Firebird
- 1980 Pontiac Firebird
- 1981 Pontiac Firebird
Fitment Notes
DSE 041714DS is configured for a stock axle and includes weld-on axle brackets. Detroit Speed specifies that the axle brackets require 3-inch axle tubes. If you plan to order a complete rear-end assembly, Detroit Speed recommends ordering the QUADRALink version without axle brackets. The suspension is designed to work with either Detroit Speed Mini-Tubs or stock tubs, and the appropriate tub configuration should be specified for the vehicle.
FAQs
What shocks are included with DSE 041714DS?
The kit includes DSE/JRi aluminum-body non-adjustable coilover shocks with Detroit Tuned valving. This provides performance-focused damping without requiring external shock adjustments.
What axle tube size is required for DSE 041714DS?
Detroit Speed specifies 3-inch axle tubes for the weld-on axle brackets included with 041714DS. If you are ordering a complete rear-end assembly, Detroit Speed recommends selecting the QUADRALink version without axle brackets.
Can DSE 041714DS be used with stock wheel tubs?
Yes. Detroit Speed states that the QUADRALink system is designed to work with either stock tubs or Detroit Speed Mini-Tubs. The appropriate configuration should be specified when ordering.
Why Buy Detroit Speed from Beefcake Racing?
Beefcake Racing is your source for Detroit Speed suspension components and complete performance solutions for classic muscle car builds. Whether you are modernizing a street-driven second-generation Firebird or building a serious pro-touring combination, our team can help you select the right QUADRALink components and supporting parts for your build. Questions about DSE 041714DS or your complete rear suspension setup? Email sales@beefcakeracing.com or call 1-855-827-7223 for assistance.
