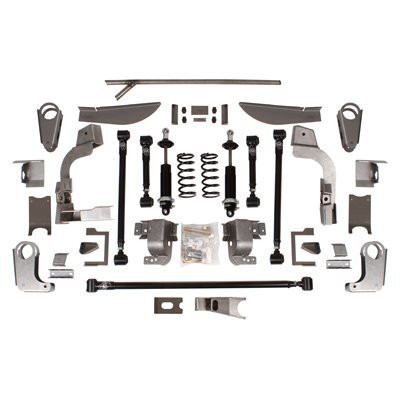

DSE QuadraLink Rear Suspension Kit - Single-Adjustable Shocks (041714-SDS) - 1970 - 1981 Pontiac Firebird
Give your 1970-1981 Pontiac Firebird the rear suspension control of a modern performance car with the Detroit Speed QUADRALink Rear Suspension Kit. Engineered to replace the factory leaf spring setup, the QUADRALink combines Detroit Speed's exclusive 4-link geometry with patented Swivel-Link technology to deliver excellent handling, ride quality, axle control, and smooth suspension articulation. Instead of using rod ends that can become noisy and wear over time, Detroit Speed uses tuned high-durometer rubber bushings to maintain responsive suspension movement while keeping the system well suited for a street-driven performance build.
The 041714-SDS configuration steps up to DSE/JRi aluminum-body single-adjustable coilover shocks with Detroit Tuned valving. An installed adjustment knob provides rebound adjustment, letting you fine-tune shock response while maintaining excellent street ride quality. Long upper links provide excellent pinion and U-joint angle control, improved anti-squat geometry helps control rear suspension movement under acceleration, and a long adjustable Panhard rod precisely locates the rear axle laterally during hard cornering. With weld-on axle brackets for 3-inch axle tubes, additional tire clearance from the inboard-offset lower links, and compatibility with stock tubs or Detroit Speed Mini-Tubs, 041714-SDS provides a serious suspension foundation for a second-generation Firebird.
Specifications
- Part Number: 041714-SDS
- Product Type: QUADRALink Rear Suspension Kit
- Shock Type: Single-Adjustable
- Shock Construction: DSE/JRi Aluminum-Body Coilover
- Shock Valving: Detroit Tuned
- Shock Adjustment: Rebound Adjustment with Installed Knob
- Spring Rate: 250 pounds per inch
- Spring Free Length: 8 inches
- Axle: Stock
- Axle Brackets: Weld-On
- Required Axle Tube Diameter: 3 inches
- Link Finish: Black Powder Coat
- Compatible Tub Configuration: Detroit Speed Mini-Tubs or Stock Tubs
Features
- Detroit Speed exclusive 4-link geometry engineered for high-performance handling
- Patented Swivel-Link technology allows smooth suspension articulation without binding
- Swivel-Links allow pinion angle and wheelbase adjustments without unbolting the links from the car
- Tuned high-durometer rubber bushings eliminate the need for noisy, wear-prone rod ends
- DSE/JRi aluminum-body single-adjustable coilover shocks with Detroit Tuned valving
- Installed adjustment knob provides convenient rebound tuning
- 250 pounds per inch coilover springs with an 8-inch free length
- Long upper links provide excellent pinion and U-joint angle control
- Improved anti-squat geometry enhances rear suspension control under acceleration
- Long adjustable Panhard rod provides precise rear axle lateral control during hard cornering
- Panhard rod adjustment provides roll center control as ride height changes
- Rear upper shock crossmember strengthens the rear body and frame section
- Lower links are offset inboard for additional tire clearance
- Designed to work with Detroit Speed Mini-Tubs or stock tubs
- Allows continued use of the stock rear seat
- Includes coilover springs
- Includes a spanner tool for easy shock adjustment
- All suspension links are powder coated black
Fitment
- 1970 Pontiac Firebird
- 1971 Pontiac Firebird
- 1972 Pontiac Firebird
- 1973 Pontiac Firebird
- 1974 Pontiac Firebird
- 1975 Pontiac Firebird
- 1976 Pontiac Firebird
- 1977 Pontiac Firebird
- 1978 Pontiac Firebird
- 1979 Pontiac Firebird
- 1980 Pontiac Firebird
- 1981 Pontiac Firebird
Fitment Notes
DSE 041714-SDS is configured for a stock axle and includes weld-on axle brackets. Detroit Speed specifies that these brackets require a 3-inch axle tube. If you plan to use a complete rear-end assembly, Detroit Speed recommends ordering the QUADRALink kit without axle brackets. The suspension is designed to work with either Detroit Speed Mini-Tubs or stock tubs, and the appropriate tub configuration should be specified for the vehicle.
FAQs
What can be adjusted on the shocks included with DSE 041714-SDS?
The DSE/JRi single-adjustable coilover shocks feature an installed knob for rebound adjustment. This allows you to fine-tune shock response while retaining Detroit Speed's performance-focused Detroit Tuned valving and excellent street ride quality.
What axle tube size is required for DSE 041714-SDS?
Detroit Speed specifies a 3-inch axle tube for the weld-on axle brackets included with 041714-SDS. For a build using a complete rear-end assembly, Detroit Speed recommends ordering the corresponding QUADRALink configuration without axle brackets.
Can DSE 041714-SDS be installed with stock wheel tubs?
Yes. Detroit Speed designed the QUADRALink system for use with either stock tubs or Detroit Speed Mini-Tubs. The appropriate configuration should be specified for your vehicle.
