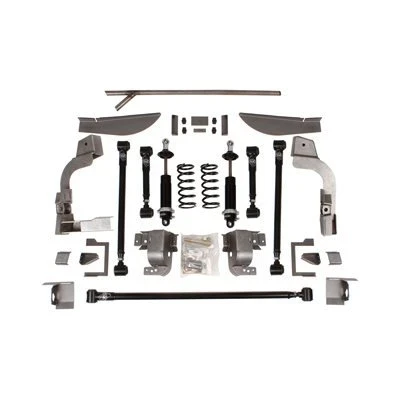

DSE QuadraLink Rear Suspension Kit - No Axle Brackets - Non-Adjustable Shocks (041712DS) - 1970 - 1981 Chevrolet Camaro
Upgrade your 1970-1981 Chevrolet Camaro from its original leaf spring suspension with the Detroit Speed QUADRALink Rear Suspension Kit. Engineered around Detroit Speed's exclusive 4-link geometry, the QUADRALink is designed to deliver modern handling, precise rear axle control, excellent ride quality, and smooth suspension articulation. Detroit Speed's patented Swivel-Link technology allows the suspension to articulate without binding, while tuned high-durometer rubber bushings provide smooth, quiet operation without the wear and noise associated with heim joints.
The 041712DS configuration includes DSE/JRi aluminum-body non-adjustable coilover shocks with Detroit Tuned valving, providing performance-focused damping without requiring external shock adjustments. Long suspension links provide excellent pinion and U-joint angle control, while improved anti-squat geometry helps manage rear suspension movement under acceleration. A long adjustable track bar precisely locates the rear axle laterally during hard cornering and provides roll center control at different ride heights. This version is supplied without axle brackets, making it the appropriate QUADRALink configuration for builds using a complete rear-end assembly with the necessary mounting provisions.
Specifications
- Part Number: 041712DS
- Product Type: QUADRALink Rear Suspension Kit
- Shock Type: Non-Adjustable
- Shock Construction: DSE/JRi Aluminum-Body Coilover
- Shock Valving: Detroit Tuned
- Spring Rate: 250 pounds per inch
- Spring Free Length: 8 inches
- Axle Configuration: Without Axle Brackets
- Axle Brackets: Not Included
- Link Finish: Black Powder Coat
- Compatible Tub Configuration: Detroit Speed Mini-Tubs or Stock Tubs
Features
- Detroit Speed exclusive 4-link geometry engineered for high-performance handling
- Patented Swivel-Link technology provides smooth, no-bind suspension articulation
- Swivel-Link design allows the suspension links to pivot and reduces unwanted torsional loading
- Pinion angle and wheelbase can be adjusted through the Swivel-Links without unbolting the links from the car
- Tuned high-durometer rubber bushings provide quiet, durable operation without heim joints
- DSE/JRi aluminum-body non-adjustable coilover shocks with Detroit Tuned valving
- 250 pounds per inch coilover springs with an 8-inch free length
- Long suspension links provide excellent pinion and U-joint angle control
- Improved anti-squat geometry enhances rear suspension control under acceleration
- Long adjustable track bar provides precise rear axle lateral location during hard cornering
- Adjustable track bar provides roll center control at different ride heights
- Rear upper shock crossmember strengthens the rear body and frame section
- Lower links are offset inboard for additional tire clearance
- Designed to work with Detroit Speed Mini-Tubs or stock tubs
- Allows continued use of the stock rear seat
- Includes coilover springs
- Includes a spanner tool for coilover adjustment
- All suspension links are powder coated black
- Axle brackets are not included for use with complete rear-end assemblies
Fitment
- 1970 Chevrolet Camaro
- 1971 Chevrolet Camaro
- 1972 Chevrolet Camaro
- 1973 Chevrolet Camaro
- 1974 Chevrolet Camaro
- 1975 Chevrolet Camaro
- 1976 Chevrolet Camaro
- 1977 Chevrolet Camaro
- 1978 Chevrolet Camaro
- 1979 Chevrolet Camaro
- 1980 Chevrolet Camaro
- 1981 Chevrolet Camaro
Fitment Notes
Axle brackets are not included with DSE 041712DS. Detroit Speed identifies this configuration for applications using complete rear-end assemblies. The QUADRALink system is designed to work with either Detroit Speed Mini-Tubs or stock tubs, and the appropriate tub configuration should be specified for the vehicle.
FAQs
Does DSE 041712DS include axle brackets?
No. Part number 041712DS is specifically the QUADRALink configuration without axle brackets and is intended for builds using a complete rear-end assembly with the appropriate mounting provisions.
What shocks are included with DSE 041712DS?
The kit includes DSE/JRi aluminum-body non-adjustable coilover shocks with Detroit Tuned valving. They provide performance-focused damping without requiring external shock adjustments.
Can DSE 041712DS be used with stock wheel tubs?
Yes. Detroit Speed states that the QUADRALink system is designed to work with either stock tubs or Detroit Speed Mini-Tubs. The appropriate configuration should be specified for the vehicle.
