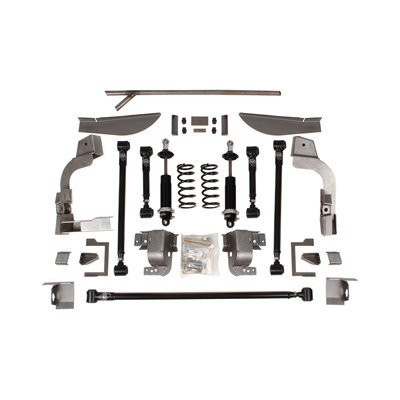

DSE QuadraLink Rear Suspension Kit - No Axle Brackets - Single-Adjustable Shocks (041712-SADS) - 1970 - 1981 Chevrolet Camaro
Replace the original leaf spring suspension on your 1970-1981 Chevrolet Camaro with the Detroit Speed QUADRALink Rear Suspension Kit and bring modern suspension control to your second-generation F-Body. Detroit Speed's exclusive 4-link geometry is engineered to improve handling, rear axle control, ride quality, and suspension articulation. The patented Swivel-Link technology allows the suspension to articulate smoothly without binding, while tuned high-durometer rubber bushings deliver quiet, durable operation without relying on heim joints.
The 041712-SADS configuration adds DSE/JRi aluminum-body single-adjustable coilover shocks with Detroit Tuned valving, giving you the ability to fine-tune rebound response with an installed adjustment knob. Long suspension links provide excellent pinion and U-joint angle control, while improved anti-squat geometry helps keep the rear suspension controlled under acceleration. A long adjustable track bar precisely locates the rear axle laterally during hard cornering and allows roll center adjustment at different ride heights. This configuration is supplied without axle brackets, making it the appropriate QUADRALink package for builds using a complete rear-end assembly with the necessary mounting provisions.
Specifications
- Part Number: 041712-SADS
- Product Type: QUADRALink Rear Suspension Kit
- Shock Type: Single-Adjustable
- Shock Construction: DSE/JRi Aluminum-Body Coilover
- Shock Valving: Detroit Tuned
- Shock Adjustment: Rebound
- Spring Rate: 250 pounds per inch
- Spring Free Length: 8 inches
- Axle Configuration: Without Axle Brackets
- Axle Brackets: Not Included
- Link Finish: Black Powder Coat
- Compatible Tub Configuration: Detroit Speed Mini-Tubs or Stock Tubs
Features
- Detroit Speed exclusive 4-link geometry engineered for high-performance handling
- Patented Swivel-Link technology provides smooth, no-bind suspension articulation
- Swivel-Links allow pinion angle and wheelbase adjustments without unbolting the links from the car
- Tuned high-durometer rubber bushings provide quiet, durable operation without heim joints
- DSE/JRi aluminum-body single-adjustable coilover shocks with Detroit Tuned valving
- Installed rebound adjustment knob provides convenient shock tuning
- 250 pounds per inch coilover springs with an 8-inch free length
- Long suspension links provide excellent pinion and U-joint angle control
- Improved anti-squat geometry enhances rear suspension control under acceleration
- Long adjustable track bar provides precise lateral rear axle control during hard cornering
- Track bar adjustment provides roll center control at different ride heights
- Rear upper shock crossmember strengthens the rear body and frame section
- Lower links are offset inboard for additional tire clearance
- Designed to work with Detroit Speed Mini-Tubs or stock tubs
- Allows continued use of the stock rear seat
- Includes coilover springs
- Includes a spanner tool for coilover adjustment
- All suspension links are powder coated black
- Supplied without axle brackets for use with complete rear-end assemblies
Fitment
- 1970 Chevrolet Camaro
- 1971 Chevrolet Camaro
- 1972 Chevrolet Camaro
- 1973 Chevrolet Camaro
- 1974 Chevrolet Camaro
- 1975 Chevrolet Camaro
- 1976 Chevrolet Camaro
- 1977 Chevrolet Camaro
- 1978 Chevrolet Camaro
- 1979 Chevrolet Camaro
- 1980 Chevrolet Camaro
- 1981 Chevrolet Camaro
Fitment Notes
Axle brackets are not included with DSE 041712-SADS. Detroit Speed identifies this configuration for applications using complete rear-end assemblies. The QUADRALink system is designed to work with either Detroit Speed Mini-Tubs or stock tubs, and the appropriate tub configuration should be specified for the vehicle.
FAQs
Does DSE 041712-SADS include axle brackets?
No. Part number 041712-SADS is specifically the QUADRALink configuration without axle brackets. It is intended for builds using a complete rear-end assembly with the appropriate QUADRALink mounting provisions.
What is adjustable on the shocks included with DSE 041712-SADS?
The DSE/JRi single-adjustable coilover shocks provide rebound adjustment through an installed adjustment knob. This allows shock response to be fine-tuned while retaining Detroit Speed's performance-focused valving.
Can DSE 041712-SADS be used with stock wheel tubs?
Yes. Detroit Speed designed the QUADRALink system to work with either stock tubs or Detroit Speed Mini-Tubs. The appropriate configuration should be specified for the vehicle.
