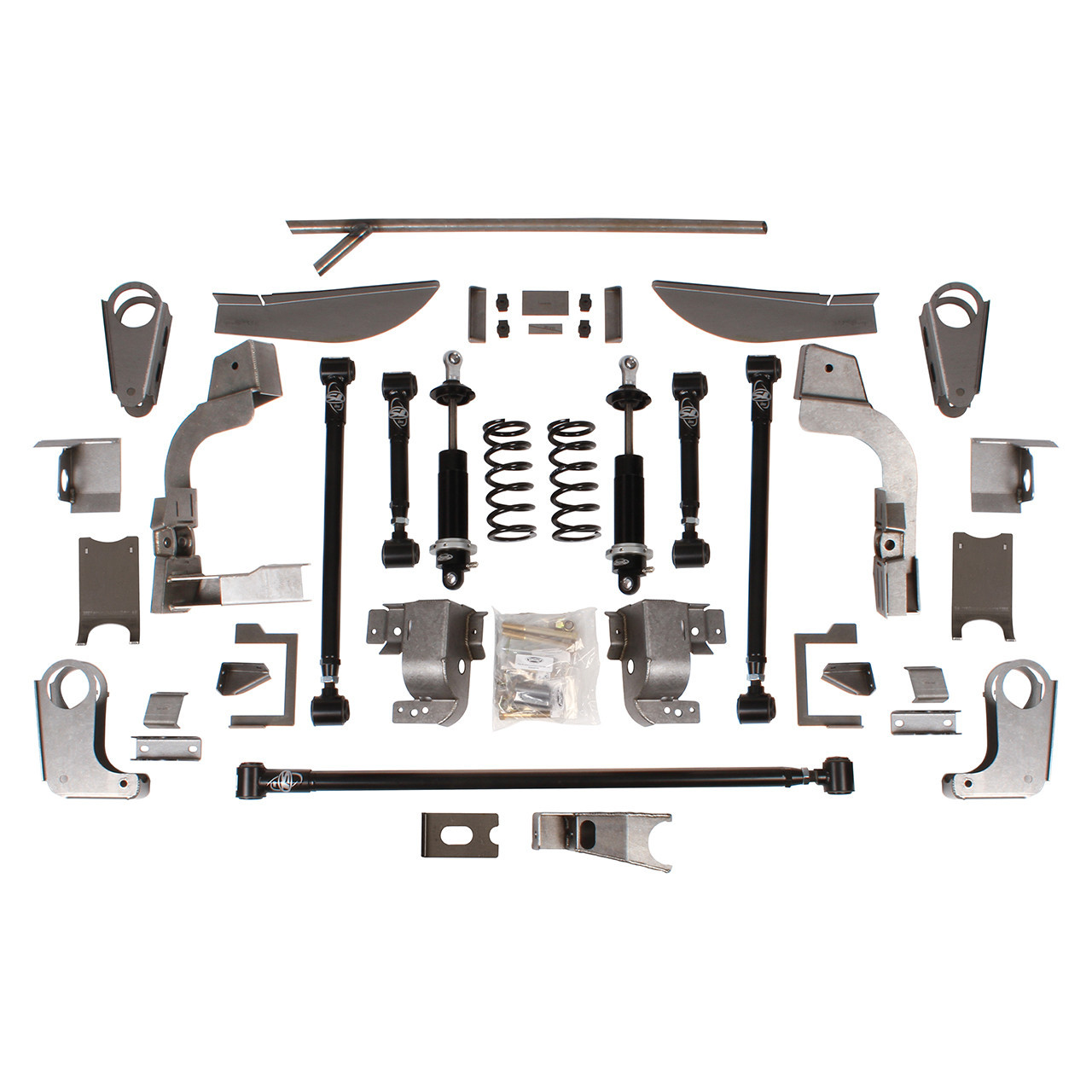

DSE QuadraLink Rear Suspension Kit - Non-Adjustable Shocks (041711DS) - 1970 - 1981 Chevrolet Camaro
Give your 1970-1981 Chevrolet Camaro a major rear suspension upgrade with the Detroit Speed QUADRALink Rear Suspension Kit. Engineered to replace the original leaf spring suspension, the QUADRALink uses Detroit Speed's exclusive 4-link geometry to improve handling, rear axle control, ride quality, and suspension articulation. Detroit Speed's patented Swivel-Link technology allows the suspension to articulate smoothly without binding, while tuned high-durometer rubber bushings provide quiet, durable operation without the wear and noise associated with heim joints.
The 041711DS configuration includes DSE/JRi aluminum-body non-adjustable coilover shocks with Detroit Tuned valving, delivering performance-focused damping without requiring external shock adjustments. Long upper links provide excellent pinion and U-joint angle control, while improved anti-squat geometry helps keep the rear suspension composed under acceleration. A long adjustable panhard rod precisely locates the rear axle laterally during hard cornering and provides roll center control as ride height changes. The rear upper shock crossmember strengthens the rear body and frame section, while the lower links are offset inboard to provide additional tire clearance.
Specifications
- Part Number: 041711DS
- Product Type: QUADRALink Rear Suspension Kit
- Shock Type: Non-Adjustable
- Shock Construction: DSE/JRi Aluminum-Body Coilover
- Shock Valving: Detroit Tuned
- Spring Rate: 250 pounds per inch
- Spring Free Length: 8 inches
- Axle: Stock
- Axle Brackets: Weld-On
- Required Axle Tube Diameter: 3 inches
- Link Finish: Black Powder Coat
- Compatible Tub Configuration: Detroit Speed Mini-Tubs or Stock Tubs
Features
- Exclusive Detroit Speed 4-link geometry designed for high-performance handling
- Patented Swivel-Link technology allows smooth, no-bind suspension articulation
- Swivel-Links allow pinion angle and wheelbase adjustments without removing the links from the car
- Tuned high-durometer rubber bushings eliminate heim joints that can wear and create noise
- DSE/JRi aluminum-body non-adjustable coilover shocks with Detroit Tuned valving
- 250 pounds per inch coilover springs with an 8-inch free length
- Long upper arms provide excellent pinion and U-joint angle control
- Improved anti-squat geometry enhances rear suspension control under acceleration
- Long panhard rod provides precise lateral rear axle control during hard cornering
- Adjustable panhard rod provides roll center control at different ride heights
- Rear upper shock crossmember strengthens the rear body and frame section
- Lower links are offset inboard for additional tire clearance
- Designed for use with Detroit Speed Mini-Tubs or stock tubs
- Allows the stock rear seat to remain in the vehicle
- Includes coilover springs
- Includes a spanner tool for coilover adjustment
- All suspension links are powder coated black
Fitment
- 1970 Chevrolet Camaro
- 1971 Chevrolet Camaro
- 1972 Chevrolet Camaro
- 1973 Chevrolet Camaro
- 1974 Chevrolet Camaro
- 1975 Chevrolet Camaro
- 1976 Chevrolet Camaro
- 1977 Chevrolet Camaro
- 1978 Chevrolet Camaro
- 1979 Chevrolet Camaro
- 1980 Chevrolet Camaro
- 1981 Chevrolet Camaro
Fitment Notes
DSE 041711DS is configured for a stock axle and includes weld-on axle brackets. Detroit Speed specifies that these axle brackets require a 3-inch axle tube. If you plan to use a complete rear-end assembly, Detroit Speed recommends ordering the QUADRALink version without axle brackets. The system is designed to work with either Detroit Speed Mini-Tubs or stock tubs.
FAQs
What shocks are included with DSE 041711DS?
The kit includes DSE/JRi aluminum-body non-adjustable coilover shocks with Detroit Tuned valving. They provide performance-oriented damping without requiring external shock adjustments.
What axle tube size is required for DSE 041711DS?
Detroit Speed specifies 3-inch axle tubes for the weld-on axle brackets included with 041711DS. For a complete rear-end assembly, Detroit Speed recommends using the QUADRALink version without axle brackets.
Can DSE 041711DS be used with stock wheel tubs?
Yes. Detroit Speed designed the QUADRALink system to work with either stock tubs or Detroit Speed Mini-Tubs. The appropriate configuration should be specified for the vehicle.
