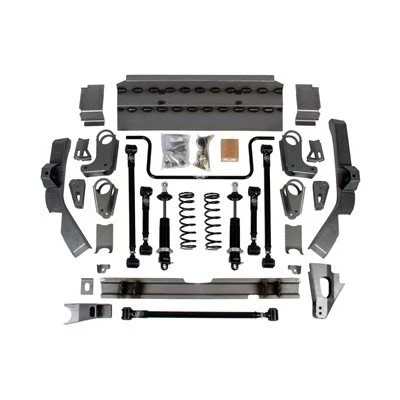

DSE QuadraLink Rear Suspension Kit - Single-Adjustable Shocks (041707-SDS) - 1962 - 1967 Chevrolet Chevy II
Replace the original leaf spring suspension on your 1962-1967 Chevrolet Chevy II with the Detroit Speed QUADRALink Rear Suspension Kit. Built around Detroit Speed's performance-focused 4-link geometry, the QUADRALink is engineered to deliver improved handling, rear axle control, ride quality, and smooth suspension articulation. Detroit Speed's patented Swivel-Link technology allows the suspension to articulate without binding, while high-durometer rubber bushings eliminate heim joints that can wear and create unwanted noise.
The 041707-SDS configuration adds DSE/JRi aluminum-body single-adjustable coilover shocks with Detroit Tuned valving. External rebound adjustment lets you fine-tune shock response with the turn of a knob while retaining excellent street ride quality. Long upper links provide effective pinion angle control, improved anti-squat geometry helps manage rear suspension movement under acceleration, and a long adjustable panhard rod provides precise lateral axle control during hard cornering. Lower links are offset inboard for additional tire clearance, while the system is designed to work with either Detroit Speed Mini-Tubs or stock tubs and still allows use of the stock rear seat.
Specifications
- Part Number: 041707-SDS
- Product Type: QUADRALink Rear Suspension Kit
- Shock Type: Single-Adjustable
- Shock Construction: DSE/JRi Aluminum-Body Coilover
- Shock Valving: Detroit Tuned
- Shock Adjustment: Rebound
- Spring Rate: 175 pounds per inch
- Spring Free Length: 11 inches
- Axle: Stock
- Axle Brackets: Weld-On
- Required Axle Tube Diameter: 3 inches
- Narrowed Fuel Tank Required: Yes
- Narrowed Fuel Tank Part Number: 080184DS
- Link Finish: Black Powder Coat
- Compatible Tub Configuration: Detroit Speed Mini-Tubs or Stock Tubs
Features
- Detroit Speed 4-link geometry engineered for high-performance handling
- Patented no-bind Swivel-Link technology provides smooth suspension articulation
- Swivel-Links allow pinion angle and wheelbase adjustments without unbolting the links from the car
- High-durometer rubber bushings eliminate heim joints that can wear and create noise
- DSE/JRi aluminum-body single-adjustable coilover shocks with Detroit Tuned valving
- External rebound adjustment provides convenient suspension tuning with the turn of a knob
- 175 pounds per inch coilover springs with an 11-inch free length
- Long upper links provide effective pinion angle control
- Improved anti-squat geometry enhances rear suspension control under acceleration
- Long panhard rod provides precise rear axle lateral control during hard cornering
- Adjustable panhard rod accommodates ride-height changes for roll center control
- Lower links are offset inboard for additional tire clearance
- Rear upper shock crossmember strengthens the rear body and frame section
- Designed to work with Detroit Speed Mini-Tubs or stock tubs
- Allows continued use of the stock rear seat
- Includes coilover springs
- Includes a spanner tool for easy shock adjustment
- All suspension links are powder coated black
Fitment
- 1962 Chevrolet Chevy II
- 1963 Chevrolet Chevy II
- 1964 Chevrolet Chevy II
- 1965 Chevrolet Chevy II
- 1966 Chevrolet Chevy II
- 1967 Chevrolet Chevy II
Fitment Notes
DSE 041707-SDS requires a narrowed fuel tank. Detroit Speed specifies narrowed fuel tank part number 080184DS, with the appropriate fuel pump selected for the vehicle's fuel system. The included weld-on axle brackets require a 3-inch axle tube. If you plan to order a complete rear-end assembly, Detroit Speed recommends ordering the QUADRALink Kit without axle brackets. The suspension is designed to work with either Detroit Speed Mini-Tubs or stock tubs.
FAQs
What is adjustable on the shocks included with DSE 041707-SDS?
The DSE/JRi single-adjustable coilovers feature external rebound adjustment. Shock response can be fine-tuned with the turn of a knob while retaining Detroit Speed's street-focused ride quality.
Does DSE 041707-SDS require a narrowed fuel tank?
Yes. Detroit Speed specifies narrowed fuel tank 080184DS for this Chevy II QUADRALink application, along with the appropriate fuel pump for the vehicle's fuel system.
What axle tube size is required for DSE 041707-SDS?
The weld-on axle brackets included with this kit require a 3-inch axle tube. If you are purchasing a complete rear-end assembly, Detroit Speed recommends selecting a QUADRALink configuration without axle brackets.
