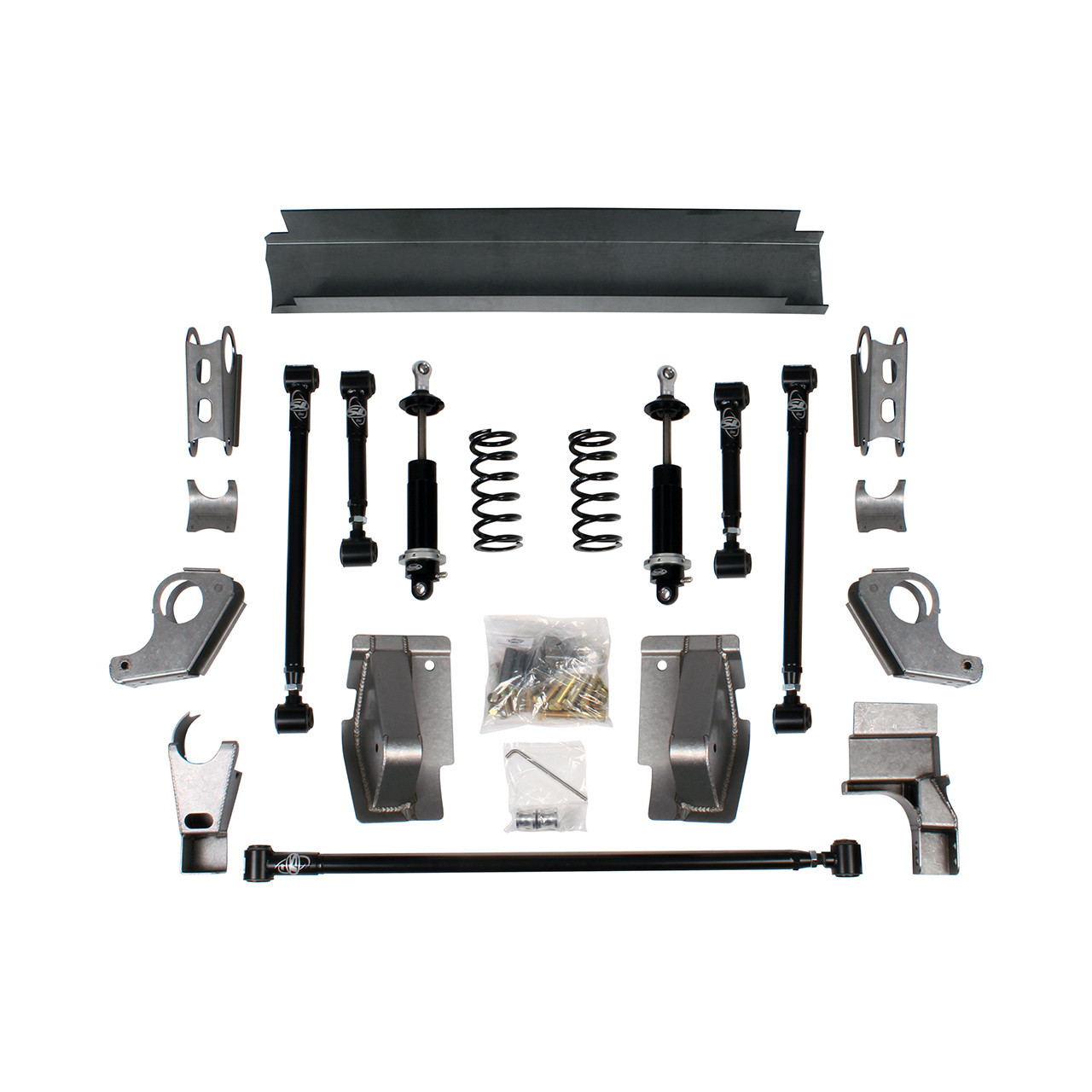

DSE QUADRALink Rear Suspension Kit - Non-Adjustable Shocks (041703DS) - 1967-1969 Chevrolet Camaro / Pontiac Firebird
Replace the original leaf spring suspension in your first-generation F-Body with a rear suspension engineered for serious handling and street performance. The Detroit Speed QUADRALink Rear Suspension Kit 041703DS uses exclusive 4-link geometry and patented Swivel-Link technology to let the suspension articulate smoothly without binding. Instead of relying on noisy heim joints, Detroit Speed uses tuned high-durometer rubber bushings to deliver controlled suspension movement with excellent ride quality and long-term street manners.
The system combines long upper links for improved pinion and U-joint angle control with an adjustable panhard rod that precisely locates the rear axle laterally during hard cornering. The panhard rod can be adjusted as ride height changes to provide roll center control, while the upper shock crossmember strengthens the rear body and frame area. This version includes DSE/JRi aluminum-body non-adjustable coilover shocks with Detroit Tuned valving and 250 lbs/in springs, giving builders a performance-focused package without the added complexity of externally adjustable shocks.
Specifications
- Manufacturer: Detroit Speed
- Part Number: 041703DS
- Product Type: QUADRALink Rear Suspension Kit
- Position: Rear
- Axle Application: Stock Axle
- Axle Brackets: Weld-On
- Required Axle Tube Diameter: 3 inches
- Suspension Configuration: 4-Link with Adjustable Panhard Rod
- Link Technology: Patented Detroit Speed Swivel-Link
- Shock Type: DSE/JRi Aluminum-Body Non-Adjustable Coilover
- Shock Valving: Detroit Tuned
- Spring Type: Coilover
- Spring Rate: 250 lbs/in
- Spring Free Length: 8 inches
- Bushing Type: High-Durometer Rubber
- Lower Links: Offset Inboard for Additional Tire Clearance
- Link Finish: Black Powdercoat
- Stock Rear Seat Compatibility: Yes
- Compatible Tub Configurations: Detroit Speed Mini-Tubs or Stock Tubs
- Spanner Tool: Included
Features
- Converts the original leaf spring rear suspension to Detroit Speed's performance-oriented QUADRALink 4-link system
- Patented Swivel-Link technology allows smooth suspension articulation without binding
- Swivel-Links allow pinion angle and wheelbase adjustment without unbolting the links from the vehicle
- High-durometer rubber bushings provide controlled articulation without noisy, wear-prone heim joints
- Long upper links provide improved pinion and U-joint angle control
- Improved anti-squat geometry helps manage rear suspension behavior under acceleration
- Long adjustable panhard rod provides precise lateral axle control during hard cornering
- Panhard rod adjustment provides roll center control as ride height changes
- Rear upper shock crossmember strengthens the rear body and frame section
- DSE/JRi aluminum-body non-adjustable coilover shocks feature Detroit Tuned valving
- 250 lbs/in coilover springs with an 8-inch free length
- Lower links are offset inboard for additional wheel and tire clearance
- Designed for use with Detroit Speed Mini-Tubs or stock wheel tubs
- Allows the stock rear seat to remain in place
- All suspension links are powdercoated black for durability
- Includes a spanner tool for coilover adjustment
Fitment Notes
The supplied weld-on axle brackets require a 3-inch axle tube. Specify whether the vehicle uses Detroit Speed Mini-Tubs or stock wheel tubs when ordering. If you plan to order a complete rear-end assembly, Detroit Speed recommends ordering the corresponding QUADRALink kit without axle brackets.
Fitment
- 1967 Chevrolet Camaro
- 1968 Chevrolet Camaro
- 1969 Chevrolet Camaro
- 1967 Pontiac Firebird
- 1968 Pontiac Firebird
- 1969 Pontiac Firebird
FAQs
What shocks are included with DSE 041703DS?
This version includes DSE/JRi aluminum-body non-adjustable coilover shocks with Detroit Tuned valving and 250 lbs/in coilover springs.
Does the DSE QUADRALink use heim joints?
No. Detroit Speed uses its patented Swivel-Link technology with tuned high-durometer rubber bushings to allow smooth suspension articulation without relying on heim joints.
Can DSE 041703DS be used with Mini-Tubs?
Yes. The system is designed to work with either Detroit Speed Mini-Tubs or stock wheel tubs. The supplied axle brackets require a 3-inch axle tube.
