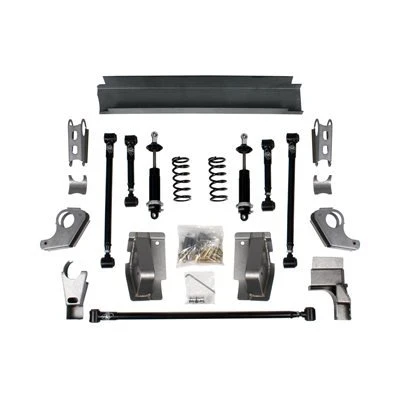

DSE QuadraLink Rear Suspension Kit - Single-Adjustable Shocks (041703-SDS) - 1967 - 1969 Chevrolet Camaro / Pontiac Firebird
Transform the rear suspension of your first-generation Camaro or Firebird with the Detroit Speed QUADRALink Rear Suspension Kit. Designed as a serious performance upgrade from the original leaf spring suspension, the QUADRALink combines Detroit Speed's purpose-built 4-link geometry with its patented Swivel-Link technology to provide smooth suspension articulation without binding. The system delivers improved axle control, anti-squat geometry, cornering stability, and ride quality while retaining the factory rear seat.
This version of the QUADRALink is equipped with DSE/JRi aluminum-body single-adjustable coilover shocks featuring Detroit Tuned valving. Rebound adjustment is controlled with the turn of a knob, giving drivers the ability to fine-tune suspension response while maintaining excellent street manners. Long upper links help control pinion and U-joint angles, while the long adjustable panhard rod precisely locates the rear axle laterally during hard cornering and allows roll center adjustment as ride height changes. High-durometer rubber bushings eliminate the need for heim joints, helping provide quiet, durable articulation for a suspension equally at home on the street or during aggressive performance driving.
Specifications
- Part Number: 041703-SDS
- Product Type: QUADRALink Rear Suspension Kit
- Suspension Design: 4-Link
- Shock Type: Single-Adjustable Coilover
- Shock Construction: DSE/JRi Aluminum Body
- Shock Valving: Detroit Tuned
- Adjustment: Rebound
- Spring Rate: 250 pounds per inch
- Spring Free Length: 8 inches
- Axle Brackets: Weld-On
- Required Axle Tube Diameter: 3 inches
- Link Finish: Black Powder Coat
- Compatible Tub Configuration: Detroit Speed Mini-Tubs or Stock Tubs
Features
- Purpose-designed QUADRALink suspension geometry for improved handling and rear axle control
- Detroit Speed patented no-bind Swivel-Link technology allows smooth suspension articulation
- Swivel-Links allow pinion angle and wheelbase adjustments without removing the link from the vehicle
- High-durometer rubber bushings provide quiet, durable operation without heim joints
- Long upper links provide precise pinion and U-joint angle control
- Improved anti-squat geometry helps enhance rear suspension performance under acceleration
- Long adjustable panhard rod provides precise lateral axle control during hard cornering
- Panhard rod adjustment accommodates ride-height changes for roll center control
- DSE/JRi aluminum-body single-adjustable coilover shocks with Detroit Tuned valving
- Rebound adjustment allows suspension tuning with the turn of a knob
- Lower links are offset inboard to provide additional tire clearance
- Rear upper shock crossmember strengthens the rear body and frame area
- Designed for use with either Detroit Speed Mini-Tubs or factory stock tubs
- Retains use of the factory rear seat
- Includes coilover springs
- Includes spanner tool for coilover adjustment
- All suspension links are finished in black powder coat
Fitment
- 1967 Chevrolet Camaro
- 1968 Chevrolet Camaro
- 1969 Chevrolet Camaro
- 1967 Pontiac Firebird
- 1968 Pontiac Firebird
- 1969 Pontiac Firebird
Fitment Notes
The weld-on axle brackets included with this configuration require a 3-inch axle tube. The QUADRALink is designed for use with either Detroit Speed Mini-Tubs or stock wheel tubs. If a complete rear-end assembly will also be ordered, Detroit Speed recommends ordering the QUADRALink Kit without axle brackets.
FAQs
What makes the Detroit Speed QUADRALink different from the factory rear suspension?
The QUADRALink replaces the original leaf spring arrangement with a performance-oriented 4-link suspension system engineered for improved axle control, suspension articulation, anti-squat geometry, cornering performance, and ride quality.
What can be adjusted on the single-adjustable shocks included with 041703-SDS?
The DSE/JRi single-adjustable coilovers provide rebound adjustment through an externally accessible adjustment knob, allowing the driver to fine-tune shock response for the vehicle and driving conditions.
Can the 041703-SDS QUADRALink be used with stock wheel tubs?
Yes. Detroit Speed designed the system to work with either stock wheel tubs or Detroit Speed Mini-Tubs. The lower links are positioned inboard to provide additional tire clearance.
