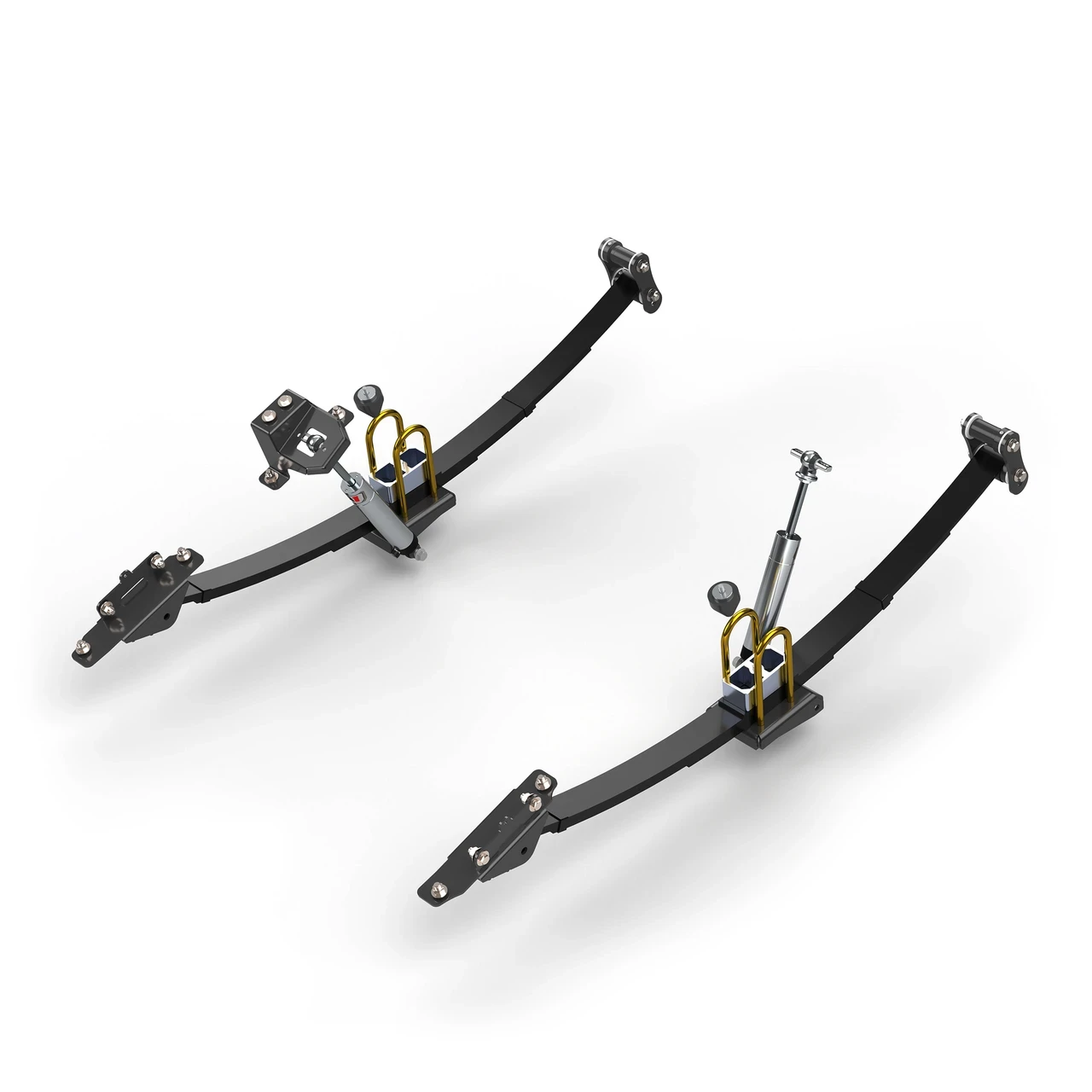

DSE Rear Speed Kit 3 (041655DS) - 1982-2003 S10 / S15 / Sonoma 2WD
Take your S-Series leaf spring suspension to its highest level with the Detroit Speed Rear Speed Kit 3. Part number 041655DS builds on the performance of Speed Kit 2 by adding Detroit Speed's premium Delrin bushing and shackle kit for tighter rear suspension control, reduced bushing deflection, and more precise response. Combined with up to 5 inches of rear lowering, double-adjustable shocks, forward-biased reverse-eye leaf springs, and optimized suspension geometry, this package delivers the aggressive stance and connected handling serious street and performance builds demand.
The system combines reverse-eye leaf springs with 2-inch lowering blocks to achieve up to 5 inches of rear drop without requiring a frame notch. The lowering blocks incorporate 3 degrees of angle to help dial in pinion angle and maintain proper driveline geometry. Stocker Star double-adjustable shocks provide 18 clicks of compression and 18 clicks of rebound adjustment, while forward-biased springs, staggered shock positioning, and optimized front spring mounting help control wheel hop and axle wrap while improving anti-squat characteristics. Precision-machined Delrin bushings further reduce unwanted suspension movement for sharper, more predictable rear-end response.
Specifications
- Manufacturer: Detroit Speed
- Part Number: 041655DS
- Product Type: Rear Speed Kit
- Speed Kit: Rear Speed Kit 3
- Position: Rear
- Drivetrain Application: 2WD
- Suspension Type: Leaf Spring
- Rear Drop: Up to 5 inches
- Leaf Spring Design: Reverse-Eye
- Leaf Spring Bias: Forward
- Lowering Blocks: 2 inches
- Lowering Block Angle: 3 Degrees
- Shock Type: Stocker Star Double Adjustable
- Compression Adjustment: 18 Clicks
- Rebound Adjustment: 18 Clicks
- Shock Arrangement: Staggered
- Bushing Material: Delrin
- Delrin Bushing and Shackle Kit: Included
- Frame Notch Required: No
- Factory Sway Bar Compatibility: Yes, Where Equipped
- Crew Cab Compatibility: No
- Installation: Bolt-In with Minor Cutting and Drilling Potentially Required
- Country of Manufacture: USA
Features
- Speed Kit 3 adds a premium Delrin bushing and shackle kit to the Speed Kit 2 suspension package
- Precision-machined Delrin bushings reduce compliance and unwanted suspension movement for tighter rear-end control
- Provides up to 5 inches of rear lowering while maintaining useful suspension travel and bed functionality
- Reverse-eye leaf springs lower the truck without sacrificing ride quality or suspension geometry
- 2-inch lowering blocks provide additional drop without requiring a frame notch
- Lowering blocks incorporate 3 degrees of angle to help dial in pinion angle and maintain driveline geometry
- Forward-biased leaf springs and staggered shocks help minimize wheel hop and axle wrap under load
- Optimized front spring mounting improves anti-squat characteristics for better traction
- Stocker Star double-adjustable shocks provide 18 clicks of compression adjustment
- Stocker Star shocks provide 18 clicks of rebound adjustment for extensive damping control
- Optimized upper shock mounting improves shock angles and rear suspension performance
- Delrin bushings help eliminate side-to-side flex for more predictable response during cornering, acceleration, and transitions
- No frame notch is required to achieve the full rear drop
- Works with the factory sway bar where equipped
- Leaf springs, mounts, lowering blocks, shocks, bushings, and shackles are engineered to function together as a complete system
- Bolt-in design installs in factory mounting locations without fabrication
- Minor cutting and drilling may be required during installation
- Designed, tested, and manufactured in the USA
Fitment Notes
Designed for 2WD applications and not compatible with Crew Cab trucks. No frame notch is required. The system works with the factory sway bar where equipped. Detroit Speed recommends pairing the rear system with a Detroit Speed front suspension kit for best overall results. Installation uses factory mounting locations without fabrication, although minor cutting and drilling may be required.
Fitment
- 1982 Chevrolet S10
- 1983 Chevrolet S10
- 1984 Chevrolet S10
- 1985 Chevrolet S10
- 1986 Chevrolet S10
- 1987 Chevrolet S10
- 1988 Chevrolet S10
- 1989 Chevrolet S10
- 1990 Chevrolet S10
- 1991 Chevrolet S10
- 1992 Chevrolet S10
- 1993 Chevrolet S10
- 1994 Chevrolet S10
- 1995 Chevrolet S10
- 1996 Chevrolet S10
- 1997 Chevrolet S10
- 1998 Chevrolet S10
- 1999 Chevrolet S10
- 2000 Chevrolet S10
- 2001 Chevrolet S10
- 2002 Chevrolet S10
- 2003 Chevrolet S10
- 2004 Chevrolet S10
- 2016 Chevrolet S10
- 2017 Chevrolet S10
- 1982 GMC S15
- 1983 GMC S15
- 1984 GMC S15
- 1985 GMC S15
- 1986 GMC S15
- 1987 GMC S15
- 1988 GMC S15
- 1989 GMC S15
- 1990 GMC S15
- 1991 GMC S15
- 1992 GMC S15
- 1993 GMC S15
- 1982 GMC Sonoma
- 1983 GMC Sonoma
- 1984 GMC Sonoma
- 1985 GMC Sonoma
- 1986 GMC Sonoma
- 1987 GMC Sonoma
- 1988 GMC Sonoma
- 1989 GMC Sonoma
- 1990 GMC Sonoma
- 1991 GMC Sonoma
- 1992 GMC Sonoma
- 1993 GMC Sonoma
- 1994 GMC Sonoma
- 1995 GMC Sonoma
- 1996 GMC Sonoma
- 1997 GMC Sonoma
- 1998 GMC Sonoma
- 1999 GMC Sonoma
- 2000 GMC Sonoma
- 2001 GMC Sonoma
- 2002 GMC Sonoma
- 2003 GMC Sonoma
- 2004 GMC Sonoma
FAQs
What makes DSE Rear Speed Kit 3 041655DS different from Speed Kit 2?
Speed Kit 3 adds Detroit Speed's Delrin bushing and shackle kit. The precision-machined Delrin components reduce bushing compliance and unwanted movement for tighter, more responsive rear suspension behavior.
How much does DSE 041655DS lower an S10?
The system provides up to 5 inches of rear lowering by combining reverse-eye leaf springs with 2-inch lowering blocks, without requiring a frame notch.
How adjustable are the shocks in DSE 041655DS?
The included Stocker Star double-adjustable shocks provide 18 clicks of compression adjustment and 18 clicks of rebound adjustment, allowing rear damping to be fine-tuned for the truck and driving style.
