DSE Rear Speed Kit 2 (041652DS) - 1967-1972 Chevrolet C10 / GMC C15 with Truck Arms and Rear Coil Springs
Lower your classic GM truck while adding meaningful rear suspension adjustability with the Detroit Speed Rear Speed Kit 2. Designed for compatible 1967-1972 Chevrolet C10 and GMC C15 trucks equipped with factory truck arms and rear coil springs, 041652DS delivers approximately 5.5 to 7 inches of rear lowering along with improved axle control, stability, ride quality, and handling. The package combines custom-wound lowering springs, Detroit Tuned drop shocks, a frame notch, adjustable track bar and shock relocation system, trailing arm bushings, and an anti-squat kit into a comprehensive rear suspension upgrade.
Detroit Speed's anti-squat system takes this package beyond a basic lowering kit. Multiple trailing arm mounting locations and hard-anodized angled lowering blocks provide adjustment for anti-squat percentage, pinion angle, and ride height, making the system especially valuable for higher-horsepower trucks that need better control under acceleration. The relocated adjustable track bar helps center the rear axle after lowering while improving stability and providing multiple roll center adjustments. Relocated shock mounts improve rear axle control and create additional exhaust clearance, while the frame notch provides the clearance required at the lowered ride height and reinforces the chassis around the coil spring mounting points.
Specifications
- Manufacturer: Detroit Speed
- Part Number: 041652DS
- Product Type: Rear Speed Kit
- Speed Kit: Rear Speed Kit 2
- Position: Rear
- Axle Application: Stock
- Required Rear Suspension: Factory Truck Arms with Coil Springs
- Overall Rear Lowering: Approximately 5.5 to 7 inches
- Coil Spring Lowering: 5.5 inches
- Coil Springs Included: Yes
- Shock Type: Detroit Tuned Non-Adjustable Drop Shocks
- Adjustable Track Bar: Included
- Anti-Squat Kit: Included
- Pinion Angle Adjustment: Yes
- Ride Height Adjustment: Yes
- Anti-Squat Adjustment: Yes
- Trailing Arm Bushings: Included
- Factory-Length U-Bolts: Included
- U-Bolt Finish: Electroplated for Corrosion Resistance
- Installation Hardware: Included
- Basic Fabrication Required: Measuring, Cutting, and Drilling
Features
- Complete performance lowering system for factory truck-arm and coil-spring rear suspensions
- Lowers rear ride height approximately 5.5 to 7 inches for an aggressive stance
- Custom-wound coil springs provide 5.5 inches of lowering while maintaining hauling capacity
- Detroit Tuned non-adjustable drop shocks provide controlled suspension response and comfortable ride quality
- Relocated shock mounts improve the shocks' ability to control rear axle movement
- Shock relocation creates additional exhaust clearance
- Frame notch provides necessary axle-to-frame clearance at the lowered ride height
- Frame notch design improves chassis rigidity around the coil spring mounting points
- Adjustable track bar allows the rear axle to be properly centered after lowering
- Cross-axis pivot bushings provide controlled track bar articulation
- Lengthened and leveled track bar geometry improves rear suspension stability
- Relocated track bar mounting provides multiple rear roll center adjustment positions
- Anti-squat kit provides multiple trailing arm mounting locations for suspension geometry tuning
- Replacement trailing arm mounts provide anti-squat adjustment to improve performance in higher-horsepower trucks
- Angled lowering blocks provide additional ride height and pinion angle adjustment
- Lowering blocks feature a hard-anodized finish for corrosion protection
- Factory-length U-bolts are electroplated for corrosion resistance
- Replacement trailing arm bushings help restore proper performance of the factory trailing arms
- Frame notch and track bar are the same components used with the Detroit Speed QUADRALink system, simplifying a potential future QUADRALink upgrade

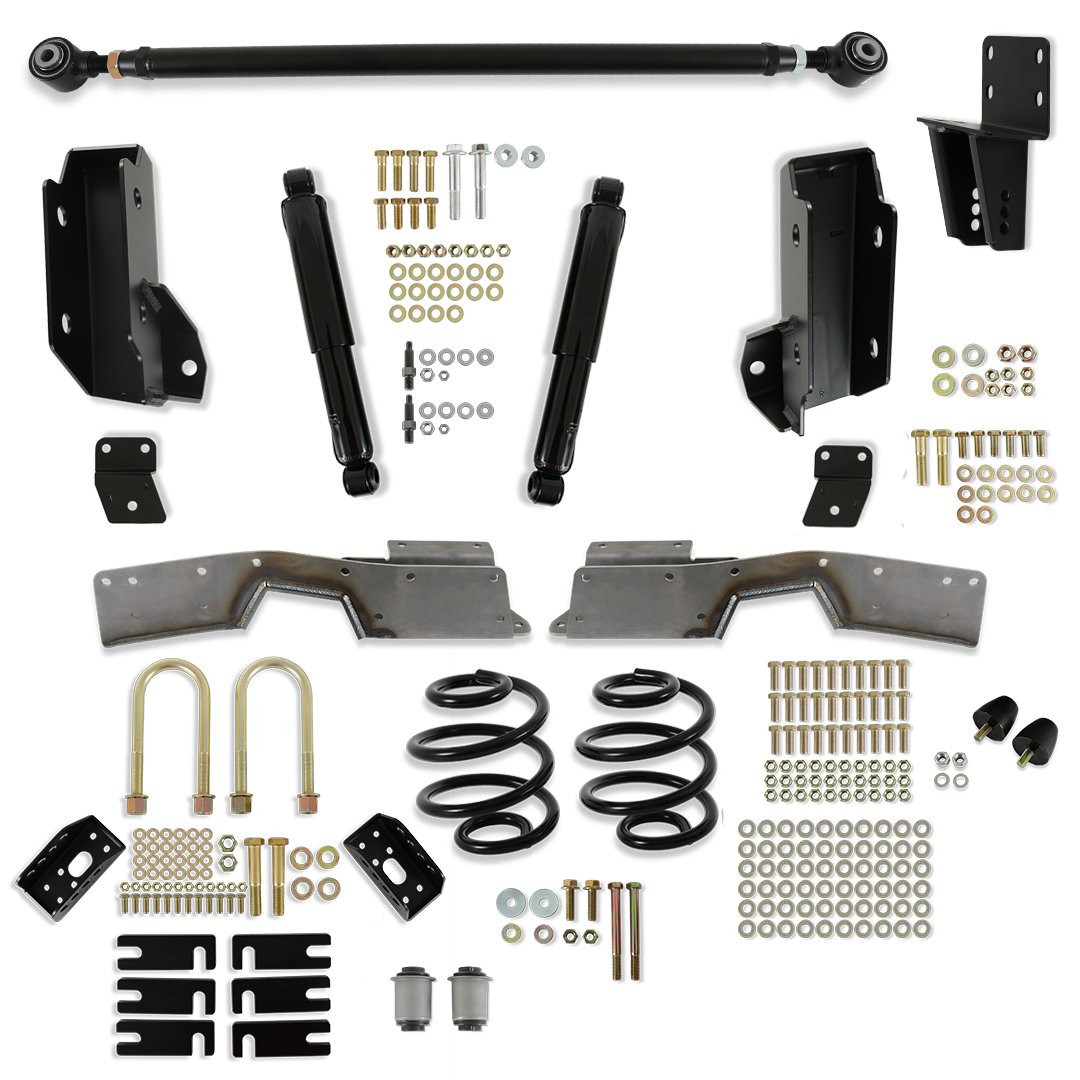

- Includes lowering coil springs, drop shocks, frame notch, adjustable track bar and shock relocation components, anti-squat kit, trailing arm bushings, U-bolts, and installation hardware
Fitment Notes
This suspension system fits trucks equipped with factory truck arms and rear coil springs only. It does not fit trucks equipped with leaf spring rear suspension because the frame configuration is different. Compatible 1967-1972 GMC C15/C1500 trucks must have the optional factory truck-arm and coil-spring rear suspension. Installation requires basic fabrication skills including measuring, cutting, and drilling. The relocated track bar allows 3-inch exhaust to be routed above the track bar on the passenger side. A factory-style differential cover is required to provide the necessary differential and exhaust clearance. Oversized aluminum differential covers do not provide the required clearance.
Fitment
- 1967 Chevrolet C10 Pickup
- 1968 Chevrolet C10 Pickup
- 1969 Chevrolet C10 Pickup
- 1970 Chevrolet C10 Pickup
- 1971 Chevrolet C10 Pickup
- 1972 Chevrolet C10 Pickup
- 1967 GMC C15/C1500 Pickup with factory optional truck-arm and coil-spring rear suspension
- 1968 GMC C15/C1500 Pickup with factory optional truck-arm and coil-spring rear suspension
- 1969 GMC C15/C1500 Pickup with factory optional truck-arm and coil-spring rear suspension
- 1970 GMC C15/C1500 Pickup with factory optional truck-arm and coil-spring rear suspension
- 1971 GMC C15/C1500 Pickup with factory optional truck-arm and coil-spring rear suspension
- 1972 GMC C15/C1500 Pickup with factory optional truck-arm and coil-spring rear suspension
FAQs
How much does DSE Rear Speed Kit 2 041652DS lower a C10?
The included coil springs provide 5.5 inches of lowering, while the complete system provides approximately 5.5 to 7 inches of rear lowering through its additional ride-height adjustment.
What does the anti-squat kit in DSE 041652DS allow you to adjust?
The anti-squat system uses multiple trailing arm mounting positions and angled lowering blocks to provide adjustment of anti-squat percentage, pinion angle, and rear ride height.
Does DSE 041652DS require fabrication?
Yes. Detroit Speed specifies that installation requires basic fabrication skills, including measuring, cutting, and drilling. The kit is only for trucks equipped with the factory truck-arm and coil-spring rear suspension.
