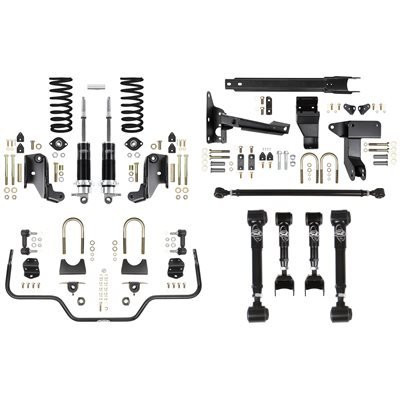

DSE Rear Speed Kit 3 - Single Adjustable Shocks (041647-SDS) - 1979-1993 Ford Mustang / 1979-1986 Mercury Capri
Take control of the Fox Body rear suspension with the Detroit Speed Rear Speed Kit 3. Designed for 1979-1993 Ford Mustang and 1979-1986 Mercury Capri applications, 041647-SDS addresses key limitations of the factory suspension while improving geometry, traction, stability, ride quality, and overall driving confidence. The system combines Detroit Speed's Rear Coilover Conversion, Swivel-Link rear suspension, tubular rear sway bar, and Adjustable Track Bar into a comprehensive package built for everything from daily driving and spirited street use to the dragstrip, autocross, and track.
The single adjustable shocks feature Detroit Tuned valving with convenient rebound adjustment using a simple knob, giving you meaningful suspension tuning while maintaining excellent street ride quality. Swivel-Links eliminate suspension bind and allow full articulation without noisy spherical rod ends, while the 3/4-inch tubular sway bar provides effective chassis-to-axle roll control. The Adjustable Track Bar adds the lateral axle control missing from the factory Fox Body four-link, helping keep the rear axle centered throughout suspension travel and locating the rear roll center 1-1/2 inches below the axle centerline.
Specifications
- Manufacturer: Detroit Speed
- Part Number: 041647-SDS
- Product Type: Rear Speed Kit
- Speed Kit: Rear Speed Kit 3
- Position: Rear
- Axle Application: Stock
- Shock Type: Single Adjustable
- Shock Valving: Detroit Tuned
- Shock Adjustment: Rebound
- Shock Adjustment Method: Knob
- Rear Suspension: Coilover Conversion with Swivel-Links
- Rear Sway Bar: Tubular
- Rear Sway Bar Diameter: 3/4 inch
- Adjustable Track Bar: Included
- Rear Roll Center Location: 1-1/2 inches below axle centerline
- Ride Height Adjustment: Yes
- Pinion Angle Adjustment: Yes
- Wheelbase Adjustment: Yes
Features
- Comprehensive rear suspension system engineered to address common Fox Body suspension limitations
- Combines Rear Coilover Conversion, Swivel-Link rear suspension, tubular rear sway bar, and Adjustable Track Bar systems
- Designed to improve traction, stability, suspension geometry, ride quality, and overall driving characteristics
- Suitable for daily driving, dragstrip, autocross, and track applications
- Bolt-on coilover conversion relocates the springs and shocks to the frame rails for maximum strength and increased wheel and tire clearance
- Detroit Tuned coilover shocks and springs provide modern suspension control and ride-height adjustment
- Single adjustable shocks provide convenient rebound tuning with the turn of a knob
- Swivel-Links are stronger than factory control arms and eliminate suspension bind while allowing full articulation
- Swivel-Link design eliminates the need for noisy spherical rod ends
- Wheelbase and pinion angle can be adjusted without unbolting the Swivel-Links from the vehicle
- Adjustable pinion angle helps improve traction and reduce driveline vibration
- 3/4-inch tubular rear sway bar mounts directly to the chassis and axle for more effective roll control than the factory arrangement
- Low-friction ball-style sway bar end links allow free articulation and help eliminate binding throughout suspension travel
- Adjustable Track Bar helps prevent unwanted side-to-side rear axle movement
- Track Bar keeps the rear axle centered under the chassis throughout suspension travel for improved stability and grip
- Rear roll center is located 1-1/2 inches below the axle centerline for improved handling characteristics
- Laser-cut brackets are compatible with original frames and axles
- Provides clearance for custom exhaust up to 3 inches depending on tire and mini-tub width
- Fuel tank modification may be required depending on tire and mini-tub width
- Detroit Speed Mini-Tubs can be installed after completing the coilover conversion
Fitment Notes
Detroit Speed 041647-SDS is designed for compatible Fox Body applications using the stock axle configuration. The Adjustable Track Bar brackets attach using holes added to the frame rail and U-bolts at the factory 8.8-inch rear axle. The coilover conversion is required before installing the Swivel-Links because the links do not incorporate factory-style spring perches. Custom exhaust clearance up to 3 inches depends on tire and mini-tub width, and fuel tank modification may be required with some combinations.
Fitment
- 1979 Ford Mustang
- 1980 Ford Mustang
- 1981 Ford Mustang
- 1982 Ford Mustang
- 1983 Ford Mustang
- 1984 Ford Mustang
- 1985 Ford Mustang
- 1986 Ford Mustang
- 1987 Ford Mustang
- 1988 Ford Mustang
- 1989 Ford Mustang
- 1990 Ford Mustang
- 1991 Ford Mustang
- 1992 Ford Mustang
- 1993 Ford Mustang
- 1979 Mercury Capri
- 1980 Mercury Capri
- 1981 Mercury Capri
- 1982 Mercury Capri
- 1983 Mercury Capri
- 1984 Mercury Capri
- 1985 Mercury Capri
- 1986 Mercury Capri
FAQs
What is included with DSE Rear Speed Kit 3 041647-SDS?
The system combines Detroit Speed's Rear Coilover Conversion, Swivel-Link rear suspension, 3/4-inch tubular rear sway bar, Adjustable Track Bar, and single adjustable shocks into a comprehensive Fox Body rear suspension package.
What can be adjusted on the shocks in DSE 041647-SDS?
The single adjustable shocks feature Detroit Tuned valving with rebound adjustment. Rebound can be changed with the turn of a knob to fine-tune rear suspension response while maintaining street-friendly ride quality.
What does the Adjustable Track Bar do?
The Track Bar connects the rear axle to the chassis to control unwanted side-to-side axle movement during suspension travel, helping keep the axle centered for better stability, grip, and cornering confidence.
