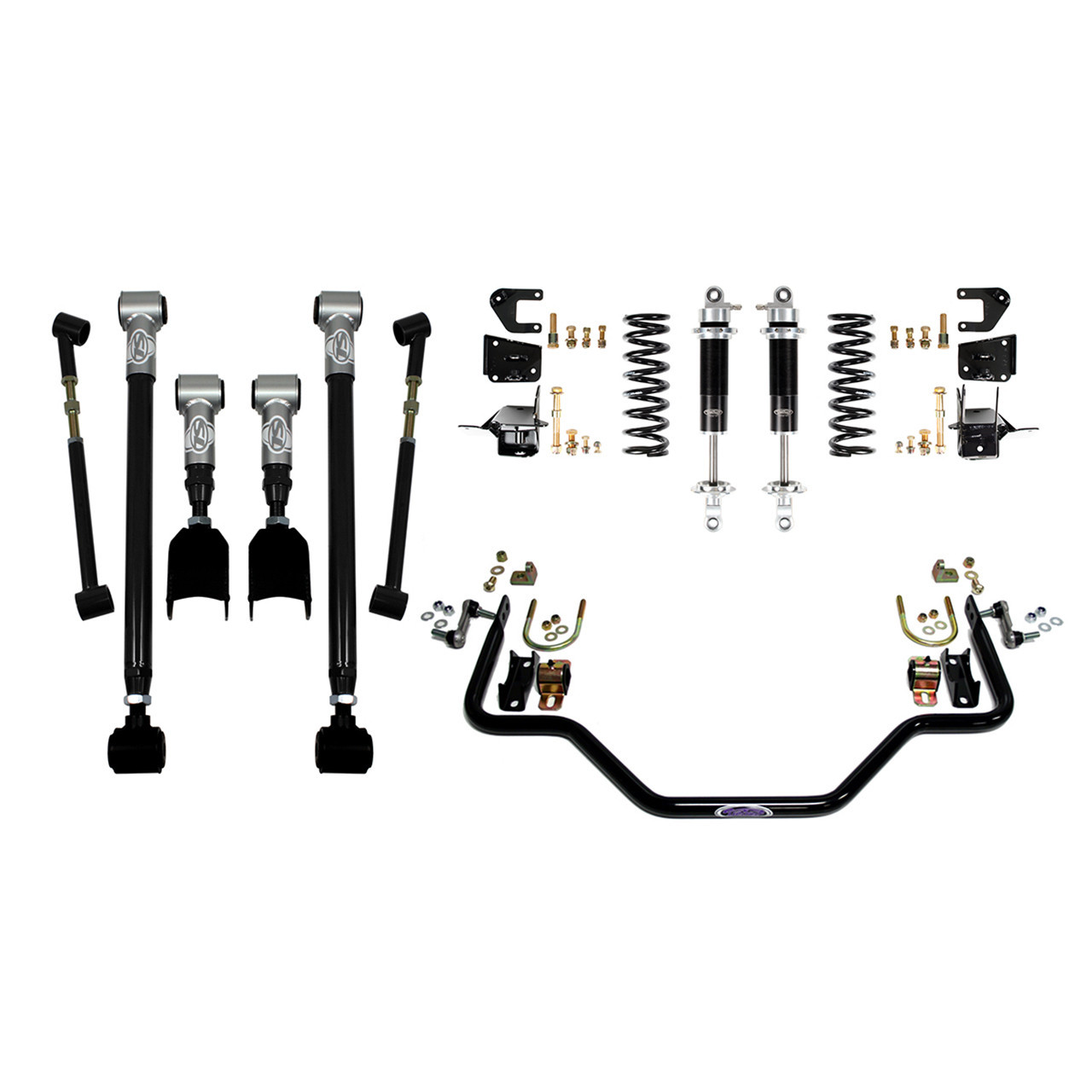

DSE Rear Speed Kit 3 - Single Adjustable Shocks - Stock Axle (041611-SDS) - 1964-1966 GM A-Body
Give your classic GM A-Body serious suspension capability with the Detroit Speed Rear Speed Kit 3. Designed for 1964-1966 applications using a stock rear axle, 041611-SDS combines Detroit Speed's patented Swivel-Link suspension technology with single-adjustable shocks, springs, and a chassis-mounted tubular rear sway bar. The complete system is engineered to maintain optimum suspension geometry and tire contact throughout the full range of rear suspension travel, delivering the control and predictability needed for aggressive street driving and performance use.
Detroit Speed's patented Swivel-Links allow the rear axle housing to fully articulate without relying on noisy spherical heim joints. The design also allows pinion angle and wheelbase adjustments without unbolting the links from the vehicle. This single-adjustable version adds Detroit Tuned shock valving with rebound adjustment through the simple turn of a knob, giving you the ability to fine-tune suspension response while maintaining excellent street ride quality. Combined with the tubular rear sway bar, 041611-SDS delivers an adjustable, integrated rear suspension package designed to complement Detroit Speed front suspension systems.
Specifications
- Manufacturer: Detroit Speed
- Part Number: 041611-SDS
- Product Type: Rear Speed Kit
- Speed Kit: Rear Speed Kit 3
- Position: Rear
- Rear Suspension Design: Swivel-Link
- Shock Type: Single Adjustable
- Shock Valving: Detroit Tuned
- Shock Adjustment: Rebound
- Rebound Adjustment Method: Knob
- Rear Sway Bar: Tubular
- Axle Application: Stock
- Pinion Angle Adjustment: Yes
- Wheelbase Adjustment: Yes
- Wagon Applications: Excluded
Features
- Rear Speed Kit 3 engineered for high-performance 1964-1966 GM A-Body applications
- Designed to maintain optimum rear suspension geometry throughout suspension travel
- Helps maintain consistent tire contact through the full range of rear suspension movement
- Patented Detroit Speed Swivel-Links allow the rear axle housing to fully articulate
- Provides articulation without relying on noisy spherical heim joints
- Allows pinion angle adjustment without unbolting the Swivel-Links from the vehicle
- Allows wheelbase adjustment without unbolting the Swivel-Links from the vehicle
- Single-adjustable shocks feature Detroit Tuned valving
- Knob-adjustable rebound makes suspension tuning straightforward
- Allows shock response to be fine-tuned for driving style and vehicle setup
- Engineered to provide excellent ride quality for street use
- Chassis-mounted tubular rear sway bar provides a substantial improvement in cornering ability
- Designed for use with the stock rear axle
- Engineered to complement Detroit Speed front suspension systems for balanced handling performance
Fitment Notes
Detroit Speed 041611-SDS excludes wagon applications. The bushing supplied with the kit may not fit some 1964 GM A-Body axle housings due to the overall diameter of the bushing. Detroit Speed offers a smaller 1.360-inch diameter bushing, P/N 99040249, for applications where the supplied bushing does not fit the rear axle housing.
Fitment
- 1964 Buick Skylark
- 1965 Buick Skylark
- 1966 Buick Skylark
- 1964 Buick Special
- 1965 Buick Special
- 1966 Buick Special
- 1964 Chevrolet Chevelle
- 1965 Chevrolet Chevelle
- 1966 Chevrolet Chevelle
- 1967 Chevrolet Chevelle
- 1964 Chevrolet Malibu
- 1965 Chevrolet Malibu
- 1966 Chevrolet Malibu
- 1964 Oldsmobile 442
- 1965 Oldsmobile 442
- 1966 Oldsmobile 442
- 1964 Oldsmobile Cutlass
- 1965 Oldsmobile Cutlass
- 1966 Oldsmobile Cutlass
- 1964 Oldsmobile F85
- 1965 Oldsmobile F85
- 1966 Oldsmobile F85
- 1964 Pontiac Beaumont
- 1965 Pontiac Beaumont
- 1966 Pontiac Beaumont
- 1964 Pontiac GTO
- 1965 Pontiac GTO
- 1966 Pontiac GTO
- 1967 Pontiac GTO
- 1964 Pontiac LeMans
- 1965 Pontiac LeMans
- 1966 Pontiac LeMans
- 1964 Pontiac Tempest
- 1965 Pontiac Tempest
- 1966 Pontiac Tempest
FAQs
What can be adjusted on the shocks in DSE 041611-SDS?
The single-adjustable shocks feature Detroit Tuned valving with rebound adjustment. Rebound can be adjusted with the turn of a knob, allowing suspension response to be tuned for the vehicle and driving style.
Can pinion angle and wheelbase be adjusted with DSE 041611-SDS?
Yes. Detroit Speed's patented Swivel-Link design allows both pinion angle and wheelbase adjustments without requiring the links to be unbolted from the vehicle.
Does DSE 041611-SDS fit wagon applications?
No. Wagon applications are excluded. Some 1964 A-Body axle housings may also require Detroit Speed's smaller 1.360-inch diameter bushing, P/N 99040249.
