DSE Mini Tub Spring Kit - 2in Drop (041235DS) - 1970-1981 Pontiac Firebird
Give your second-generation Firebird the rear tire clearance and stance a serious performance build deserves with the Detroit Speed Mini Tub Spring Kit. Designed for 1970-1981 Pontiac Firebird applications, 041235DS combines 175 lbs/in leaf springs with the supporting suspension hardware required for a Mini-Tub setup. The springs lower the Firebird 2 inches from factory ride height while delivering responsive handling without sacrificing the ride quality needed for a street-driven car. When paired with available Detroit Speed Mini-Tubs, the system can accommodate rear tires up to 335mm wide.
Detroit Speed engineers these leaf springs with a tapered-leaf design and anti-friction pads between each leaf to promote smooth suspension movement and ride quality. The kit includes leaf springs, offset shackles, U-bolts, shocks, shock mounts, and mounting hardware, making it an ideal solution for Firebirds that already have DSE Mini-Tubs installed or builds where the tubs will be purchased separately. A narrowed fuel tank is required for the Mini-Tub conversion.
Specifications
- Manufacturer: Detroit Speed
- Part Number: 041235DS
- Product Type: Mini Tub Spring Kit
- Position: Rear
- Ride Height: 2-inch drop from factory ride height
- Spring Rate: 175 lbs/in
- Maximum Rear Tire Width: Up to 335mm when used with available DSE Mini-Tubs
- Mini-Tubs Included: No

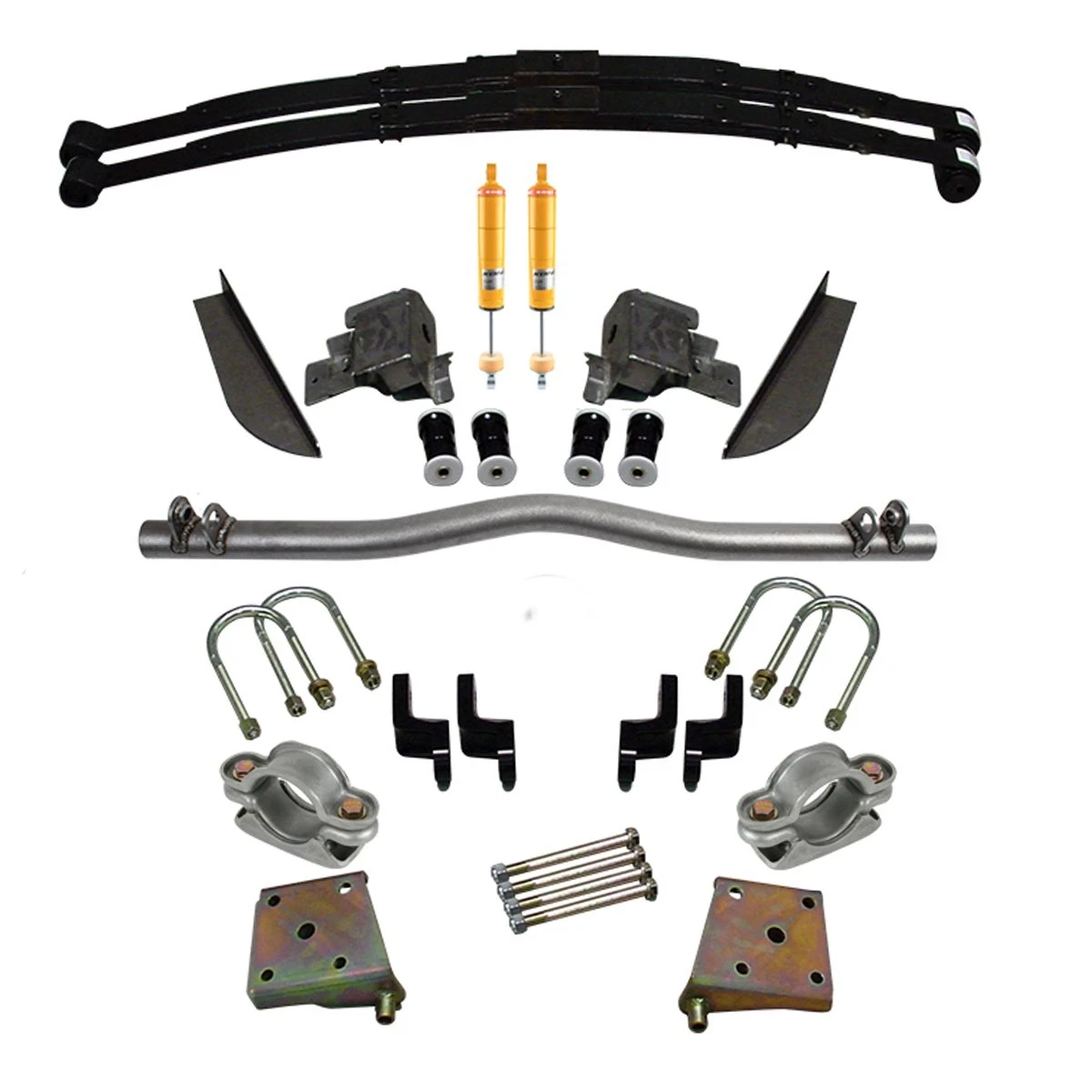

- Includes: Leaf springs, offset shackles, U-bolts, shocks, shock mounts, and mounting hardware
- Narrowed Fuel Tank Required: Yes
Features
- Designed for 1970-1981 Pontiac Firebird applications
- Allows up to 335mm-wide rear tires when paired with available Detroit Speed Mini-Tubs
- 2-inch drop provides a lower, performance-oriented stance
- 175 lbs/in rear spring rate
- Engineered for improved handling without sacrificing ride quality
- Tapered leaf construction promotes smooth and controlled suspension movement
- Anti-friction pads between each leaf help provide a smooth ride
- Includes leaf springs, offset shackles, U-bolts, shocks, shock mounts, and mounting hardware
- Ideal for Firebirds with Detroit Speed Mini-Tubs already installed
- Detroit Speed rear Mini-Tubs are available separately
- Complete packaged Mini-Tub kits are also available separately
- Requires a narrowed fuel tank
Fitment Notes
A narrowed fuel tank is required when using this Mini Tub Spring Kit. For 1970-1973 Camaro/Firebird applications, Detroit Speed lists 080181DS for applications requiring a Holley pump, 080113DS for carbureted engines, 080135DS Super Tank 1000, and 080172DS Super Tank LT1/4. For 1974-1975 Firebird applications, Detroit Speed lists 080182DS for applications requiring a Holley pump, 080115DS for carbureted engines, 080137DS Super Tank 1000, and 080173DS Super Tank LT1/4. Verify the appropriate fuel tank and fuel-system configuration for the specific vehicle before ordering.
Fitment
- 1970 Pontiac Firebird
- 1971 Pontiac Firebird
- 1972 Pontiac Firebird
- 1973 Pontiac Firebird
- 1974 Pontiac Firebird
- 1975 Pontiac Firebird
- 1976 Pontiac Firebird
- 1977 Pontiac Firebird
- 1978 Pontiac Firebird
- 1979 Pontiac Firebird
- 1980 Pontiac Firebird
- 1981 Pontiac Firebird
FAQs
How much does the DSE 041235DS Mini Tub Spring Kit lower a Firebird?
The included 175 lbs/in Detroit Speed leaf springs lower the 1970-1981 Pontiac Firebird 2 inches from factory ride height.
How wide of a rear tire can I run with DSE 041235DS?
When paired with the available Detroit Speed Mini-Tubs, the system can accommodate rear tires up to 335mm wide.
Are Mini-Tubs included with DSE 041235DS?
No. Part number 041235DS is the Mini Tub Spring Kit. Detroit Speed rear Mini-Tubs are available separately, making this package ideal for vehicles that already have the Mini-Tubs installed or builds where the tubs are being purchased separately.
What is included with the DSE 041235DS Mini Tub Spring Kit?
The kit includes leaf springs, offset shackles, U-bolts, shocks, shock mounts, and mounting hardware.
Does the DSE 041235DS require a narrowed fuel tank?
Yes. A narrowed fuel tank is required for the Mini-Tub conversion. Fuel tank compatibility depends on the Firebird model year and fuel-system configuration, so the correct tank should be verified before ordering.
