DSE Mini-Tub Kit - 3in Drop (041204DS) - 1967 Chevrolet Camaro / Pontiac Firebird

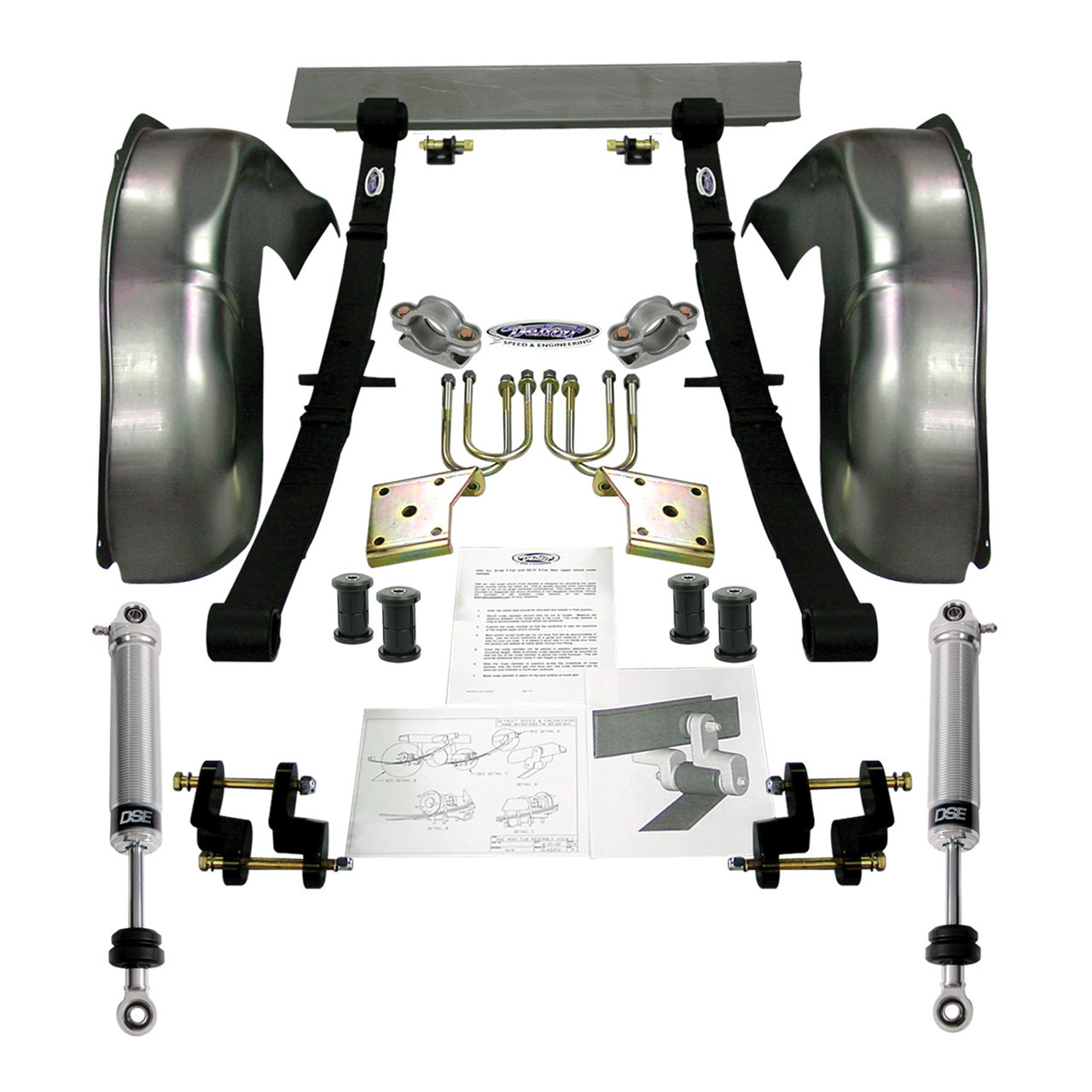

Give your 1967 Camaro or Firebird the rear tire clearance, lowered stance, and matched suspension components needed for a serious performance build with the Detroit Speed Mini-Tub Kit. Part number 041204DS combines Detroit Speed Mini-Tubs with a 3-inch drop rear leaf spring package, offset shackles, shocks, shock mounting components, adjustable leaf spring pads, U-bolts, bushings, and installation hardware. Instead of piecing together a Mini-Tub conversion component by component, this package provides the major parts engineered to work together as a complete rear suspension and wheelhouse solution.
The included rear leaf springs feature a 175 lbs/in spring rate with a 4-inch arc height and provide a 3-inch drop for a lower, more aggressive stance. The 2.75-inch Mini-Tubs create substantially more room for wider rear wheel and tire combinations, while the offset shackles relocate the leaf springs inward to take advantage of that additional clearance. The package also includes Mini-Tub shocks, a rear upper shock crossmember, lower shock plates, adjustable leaf spring pads, urethane bushings, U-bolts, and mounting hardware. A narrowed fuel tank is required for installation and is available separately.
Specifications
- Part Number: 041204DS
- Product: Rear Mini-Tub Kit
- Application: 1967 Chevrolet Camaro / Pontiac Firebird
- Position: Rear
- Ride Height: 3-Inch Drop
- Mini-Tub Width: 2.75 Inches
- Rear Spring Rate: 175 lbs/in
- Rear Spring Arc Height: 4 Inches
- Total Spring Height: 5-1/4 Inches
- Mini-Tubs Included: Yes
- Rear Leaf Springs Included: Yes
- Offset Shackle Set Included: Yes
- Adjustable Leaf Spring Pads Included: Yes
- Mini-Tub Shocks Included: Yes
- Rear Upper Shock Crossmember Included: Yes
- Lower Shock Plates Included: Yes
- Urethane Bushings Included: Yes
- U-Bolts Included: Yes
- Mounting Hardware Included: Yes
- Narrowed Fuel Tank Required: Yes
Features
- Complete rear Mini-Tub package engineered specifically for the 1967 Camaro and Firebird
- Provides a 3-inch rear ride height drop for a lower, more aggressive stance
- 2.75-inch Mini-Tubs create additional room for wider rear wheel and tire combinations
- 175 lbs/in rear leaf springs provide matched spring performance for the Mini-Tub suspension system
- Offset shackles relocate the rear leaf springs inward to increase available tire clearance
- Adjustable leaf spring pads provide the required interface between the leaf springs and rear axle
- Includes Mini-Tub-specific rear shocks
- Rear upper shock crossmember provides the required upper shock mounting arrangement
- Includes application-specific lower shock plates
- Includes urethane bushings and U-bolts
- Complete package eliminates the need to source the primary Mini-Tub and rear suspension components individually
Fitment Notes
- A narrowed fuel tank is required when installing this Mini-Tub kit
- Bolt-in narrowed stainless steel fuel tanks are available separately
- Designed specifically for 1967 Chevrolet Camaro and 1967 Pontiac Firebird applications
Fitment
- 1967 Chevrolet Camaro
- 1967 Pontiac Firebird
FAQs
How much does DSE 041204DS lower a 1967 Camaro or Firebird?
Detroit Speed 041204DS uses 175 lbs/in rear leaf springs designed to provide a 3-inch rear drop, delivering a lower stance as part of the complete Mini-Tub suspension package.
What components are included with DSE 041204DS?
The kit includes Detroit Speed Mini-Tubs, rear leaf springs, offset shackles, adjustable leaf spring pads, Mini-Tub shocks, a rear upper shock crossmember, lower shock plates, urethane bushings, U-bolts, and required mounting hardware.
Does DSE 041204DS require a narrowed fuel tank?
Yes. A narrowed fuel tank is required to provide the necessary clearance for the Mini-Tub and relocated leaf spring configuration. Bolt-in narrowed stainless steel fuel tanks are available separately.
