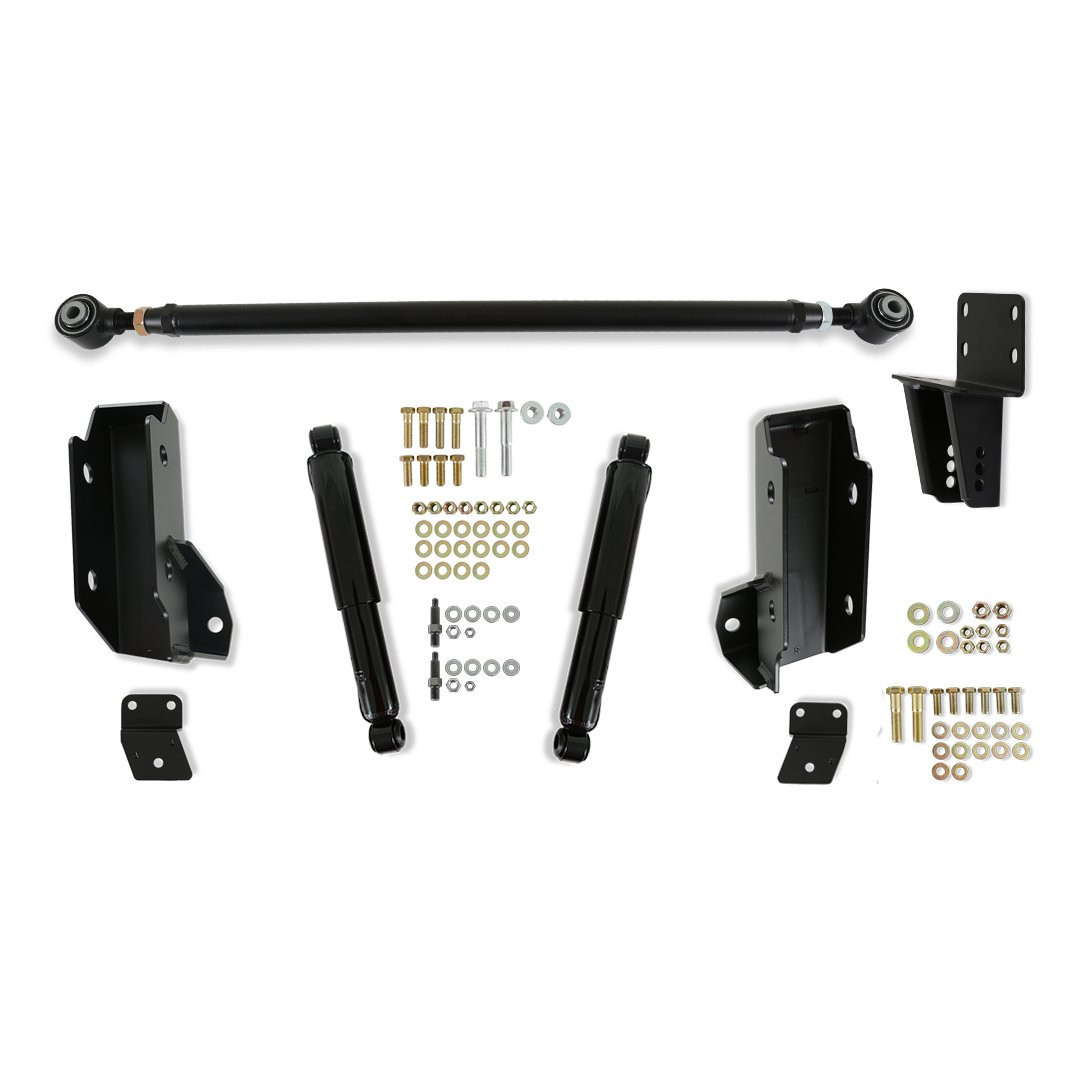

DSE Track Bar and Shock Relocation Kit (040118DS) - 1967-1972 Chevrolet C10 with Truck Arms and Rear Coil Springs
Get the rear suspension geometry of your lowered C10 working the way it should with the Detroit Speed Track Bar and Shock Relocation Kit. Designed for 1967-1972 Chevrolet C10 trucks equipped with factory truck arms and rear coil springs, part number 040118DS combines an adjustable track bar, relocated shock mounts, and non-adjustable drop shocks to improve rear axle control, cornering, and ride quality on trucks lowered 4 inches or more. Instead of accepting the axle offset and compromised shock travel that can come with lowering the factory suspension, this system is engineered specifically around the geometry of a lowered truck.
The adjustable track bar uses cross-axis pivot bushings and allows the rear axle to be centered by changing the bar length. Detroit Speed also lengthens and levels the track bar to improve rear stability, while multiple mounting positions provide roll center adjustment for fine-tuning handling. Relocated shock mounts restore proper shock travel and control while maintaining ground clearance and creating additional room for exhaust routing. The included non-adjustable drop shocks are engineered for lowered applications and pair especially well with Detroit Speed lowering springs.
Specifications
- Part Number: 040118DS
- Product: Track Bar and Shock Relocation Kit
- Application: 1967-1972 Chevrolet C10 with Truck Arms and Rear Coil Springs
- Position: Rear
- Minimum Intended Drop: 4 inches
- Track Bar: Adjustable
- Track Bar Bushings: Cross-Axis Pivot Bushings
- Track Bar Finish: Gloss Black Powder Coat
- Rear Axle Centering Adjustment: Yes
- Roll Center Adjustment: Multiple Positions
- Shock Mounts: Relocated Upper and Lower Mounts
- Shocks: Non-Adjustable Rear Drop Shocks
- Rear Drop Shocks Included: Two
- Installation: 100 Percent Bolt-On
- Factory Coil Spring Frame Rails Required: Yes
- 3-Inch Exhaust Routing Above Passenger-Side Track Bar: Supported
- Factory-Style Differential Cover Required for Specified Differential and Exhaust Clearance: Yes
- Oversize Aluminum Differential Cover Compatible with Specified Clearance: No
Features
- Improves rear suspension control, cornering, and ride quality on lowered C10 trucks
- Designed specifically for trucks lowered 4 inches or more
- Adjustable track bar allows the rear axle to be centered under the truck
- Helps eliminate the side-to-side axle offset that can occur when lowering a truck with the factory track bar
- Cross-axis pivot bushings provide controlled track bar articulation
- Lengthened and leveled track bar geometry improves rear stability
- Multiple track bar mounting positions provide adjustable rear roll center height
- Relocated shock mounts provide proper shock travel at lowered ride heights
- Shock relocation improves suspension control while maintaining excellent ground clearance
- Relocated shock mounting provides additional exhaust clearance
- Includes non-adjustable drop shocks designed for lowered trucks
- Non-adjustable drop shocks provide excellent ride quality when paired with Detroit Speed lowering springs
- Gloss black powder-coated components provide corrosion protection and a durable finish
- 100 percent bolt-on design simplifies installation
Fitment Notes
- Fits 1967-1972 Chevrolet C10 trucks with truck arms and factory rear coil spring suspension only
- Also fits some 1967-1972 GMC C15 trucks when equipped with the factory optional truck arm and rear coil spring suspension
- Designed for trucks lowered 4 inches or more
- Designed to work with factory coil spring frame rails only
- Track bar location allows 3-inch exhaust to be routed above the track bar on the passenger side
- A factory-style differential cover is required to provide the necessary differential and exhaust clearance
- Oversize aluminum differential covers do not provide the required clearance
Fitment
- 1967 Chevrolet C10 Pickup with Truck Arms and Rear Coil Springs
- 1968 Chevrolet C10 Pickup with Truck Arms and Rear Coil Springs
- 1969 Chevrolet C10 Pickup with Truck Arms and Rear Coil Springs
- 1970 Chevrolet C10 Pickup with Truck Arms and Rear Coil Springs
- 1971 Chevrolet C10 Pickup with Truck Arms and Rear Coil Springs
- 1972 Chevrolet C10 Pickup with Truck Arms and Rear Coil Springs
- 1967 GMC C15/C1500 Pickup with Factory Truck Arms and Rear Coil Springs
- 1968 GMC C15/C1500 Pickup with Factory Truck Arms and Rear Coil Springs
- 1969 GMC C15/C1500 Pickup with Factory Truck Arms and Rear Coil Springs
- 1970 GMC C15/C1500 Pickup with Factory Truck Arms and Rear Coil Springs
- 1971 GMC C15/C1500 Pickup with Factory Truck Arms and Rear Coil Springs
- 1972 GMC C15/C1500 Pickup with Factory Truck Arms and Rear Coil Springs
FAQs
What does the adjustable track bar on DSE 040118DS do?
The adjustable track bar allows you to center the rear axle under a lowered truck, helping eliminate the axle offset that can occur when lowering a C10 with the factory track bar. Its relocated mounting positions also provide multiple roll center adjustments for handling tuning.
How low should my truck be for DSE 040118DS?
Detroit Speed designed the included non-adjustable drop shocks and relocation system for trucks lowered 4 inches or more. The relocated shock mounts provide proper shock travel and improved control at the lowered ride height.
Are there exhaust or differential cover restrictions with DSE 040118DS?
Yes. The track bar location allows 3-inch exhaust to pass above the track bar on the passenger side, but a factory-style differential cover is required for the necessary differential and exhaust clearance. Oversize aluminum differential covers do not provide the required clearance.
