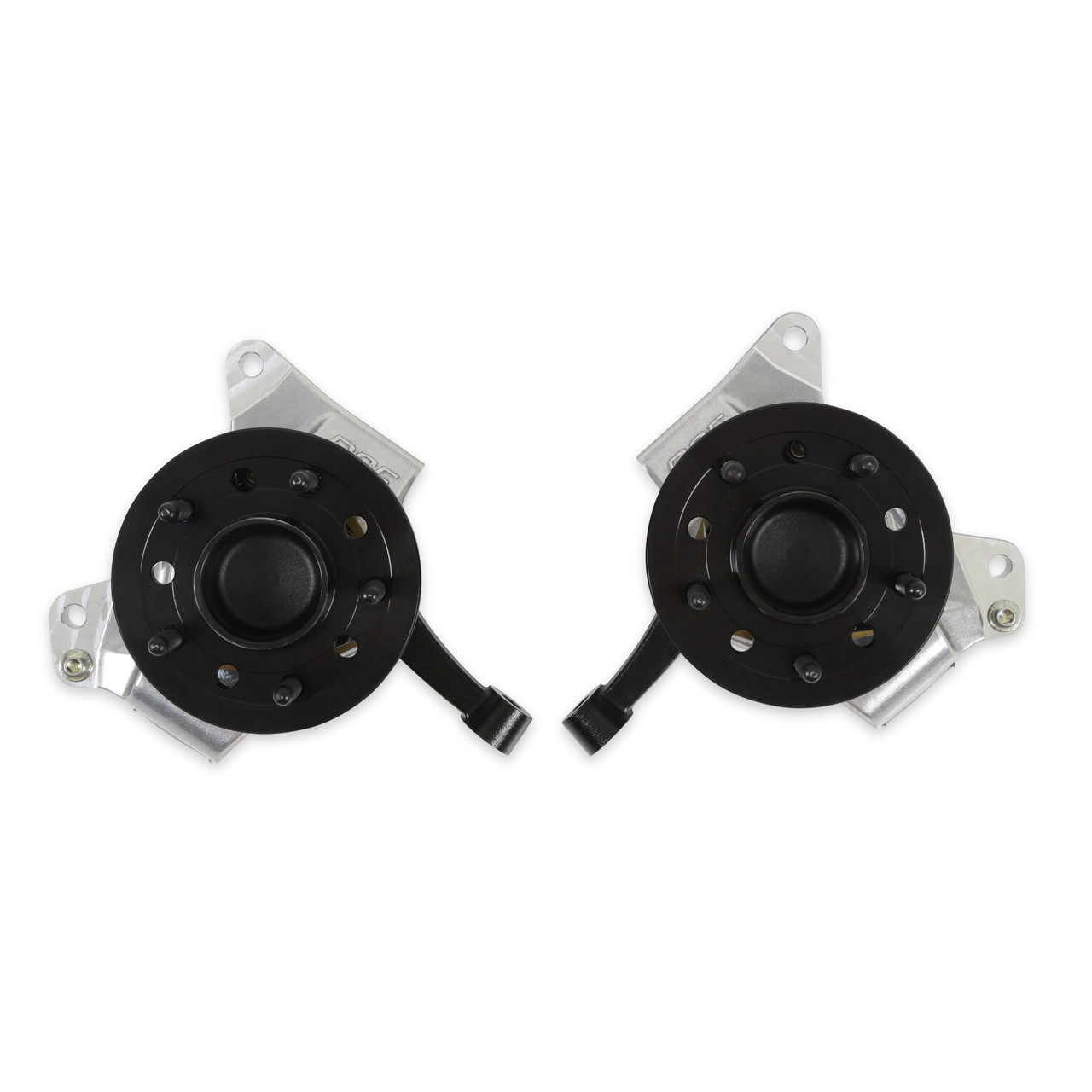

DSE Front Drop Spindle Kit (032090DS) - 1973-1987 Chevrolet C10 / GMC C15 Trucks
Lower the front of your classic GM truck without sacrificing the strength and performance demanded by a full-size pickup with the Detroit Speed Front Drop Spindle Kit. Designed for 1973-1987 Chevrolet C10 and GMC C15 trucks, part number 032090DS delivers a 2.5-inch front drop using Made-in-the-USA forged aluminum spindles paired with forged steel steering arms. The result is an aggressive lowered stance combined with modern hub-pack wheel bearings and brake compatibility in a 100% bolt-on package.
Detroit Speed equips these drop spindles with modern GMT800-style truck hub-pack wheel bearings, eliminating the need to pack conventional front wheel bearings while providing dual 5 x 5-inch and 5 x 4.75-inch wheel bolt patterns. The hub assemblies use OE-style 1999-2006 GMT800 Silverado brake architecture and are designed for GMT800 brake calipers, brackets, and pads with DSE 13-inch dual-drilled rotors. Compatible aftermarket brake options can also be used. This kit retains the truck's steering-box configuration and includes the spindles, hub and wheel bearing assemblies, and steering arms needed for the conversion.
Specifications
- Part Number: 032090DS
- Product: Front Drop Spindle Kit
- Application: 1973-1987 Chevrolet C10 / GMC C15 Trucks
- Position: Front
- Lowering: 2.5 inches
- Drop Spindle Material: Forged Aluminum
- Steering Arm Material: Forged Steel
- Wheel Bearing Type: Modern GMT800-Style Truck Hub Pack
- Wheel Bolt Patterns: 5 x 5 inches and 5 x 4.75 inches
- Brake Configuration: OE-Style GMT800
- Brake Application: 1999-2006 Silverado-Style Components
- Installation Type: 100% Bolt-On
- Steering Configuration: Steering Box
- Minimum Wheel Size: 17 inches
- Minimum Inside Wheel Diameter: 16.250 inches
- Coil Springs Included: No
- Sway Bar Included: No
- Spindles Included: Yes
- Hub / Wheel Bearings Included: Yes
- Steering Arms Included: Yes
Features
- Lowers the front ride height 2.5 inches for a more aggressive truck stance
- Designed specifically for 1973-1987 Chevrolet C10 and GMC C15 truck applications
- 100% bolt-on design provides a straightforward installation
- Made-in-the-USA Detroit Speed forged aluminum spindles provide strength and durability
- Forged steel steering arms provide strong, durable steering connections
- Modern GMT800 Silverado-style truck hub-pack wheel bearings eliminate the need to pack conventional front wheel bearings
- Dual 5 x 5-inch and 5 x 4.75-inch wheel bolt patterns provide additional wheel compatibility
- Designed around OE-style 1999-2006 GMT800 Silverado brake architecture
- Designed to use GMT800 brake calipers, brackets, and pads with DSE 13-inch dual-drilled rotors
- GMT800 brake configuration also supports compatible aftermarket brake options
- Provides a 2.5-inch drop without requiring lowering coil springs as part of the kit
- Designed for trucks retaining a steering box
- Includes forged aluminum spindles, hub and wheel bearing assemblies, and forged steel steering arms
Installation & Fitment Notes
- Requires wheels measuring at least 17 inches with a minimum inside wheel diameter of 16.250 inches
- Brakes are required for installation
- GMT800-style brakes are required for installation unless using a compatible aftermarket brake option
- DSE 13-inch dual-drilled rotors are required when using the specified GMT800 brake components
- This kit is designed for use with a steering box
Fitment
- 1973 Chevrolet C10 Pickup
- 1974 Chevrolet C10 Pickup
- 1975 Chevrolet C10 Pickup
- 1976 Chevrolet C10 Pickup
- 1977 Chevrolet C10 Pickup
- 1978 Chevrolet C10 Pickup
- 1979 Chevrolet C10 Pickup
- 1980 Chevrolet C10 Pickup
- 1981 Chevrolet C10 Pickup
- 1982 Chevrolet C10 Pickup
- 1983 Chevrolet C10 Pickup
- 1984 Chevrolet C10 Pickup
- 1985 Chevrolet C10 Pickup
- 1986 Chevrolet C10 Pickup
- 1982 Chevrolet C15
- 1983 Chevrolet C15
- 1984 Chevrolet C15
- 1985 Chevrolet C15
- 1986 Chevrolet C15
- 1987 Chevrolet C15
- 1987 Chevrolet R10
- 1975 GMC C15
- 1976 GMC C15
- 1977 GMC C15
- 1978 GMC C15
- 1973 GMC C15/C1500 Pickup
- 1974 GMC C15/C1500 Pickup
- 1975 GMC C15/C1500 Pickup
- 1976 GMC C15/C1500 Pickup
- 1977 GMC C15/C1500 Pickup
- 1978 GMC C15/C1500 Pickup
- 1979 GMC C15/C1500 Pickup
- 1980 GMC C15/C1500 Pickup
- 1981 GMC C15/C1500 Pickup
- 1982 GMC C15/C1500 Pickup
- 1983 GMC C15/C1500 Pickup
- 1984 GMC C15/C1500 Pickup
- 1985 GMC C15/C1500 Pickup
- 1986 GMC C15/C1500 Pickup
- 1979 GMC C1500
- 1980 GMC C1500
- 1981 GMC C1500
- 1982 GMC C1500
- 1983 GMC C1500
- 1984 GMC C1500
- 1985 GMC C1500
- 1986 GMC C1500
- 1987 GMC R1500
FAQs
How much does DSE Front Drop Spindle Kit 032090DS lower the truck?
The kit lowers the front ride height by 2.5 inches using forged aluminum drop spindles. Coil springs are not included or required as part of the spindle kit itself.
What comes with DSE 032090DS?
The kit includes the forged aluminum drop spindles, modern truck hub and wheel bearing assemblies, and forged steel steering arms. The hub packs feature dual 5 x 5-inch and 5 x 4.75-inch wheel bolt patterns.
What brakes and wheels are required with DSE 032090DS?
The kit requires at least 17-inch wheels with a minimum inside wheel diameter of 16.250 inches. The hub assemblies use GMT800-style brake architecture designed around 1999-2006 Silverado brake components with DSE 13-inch dual-drilled rotors, while compatible aftermarket brake options are also available.
