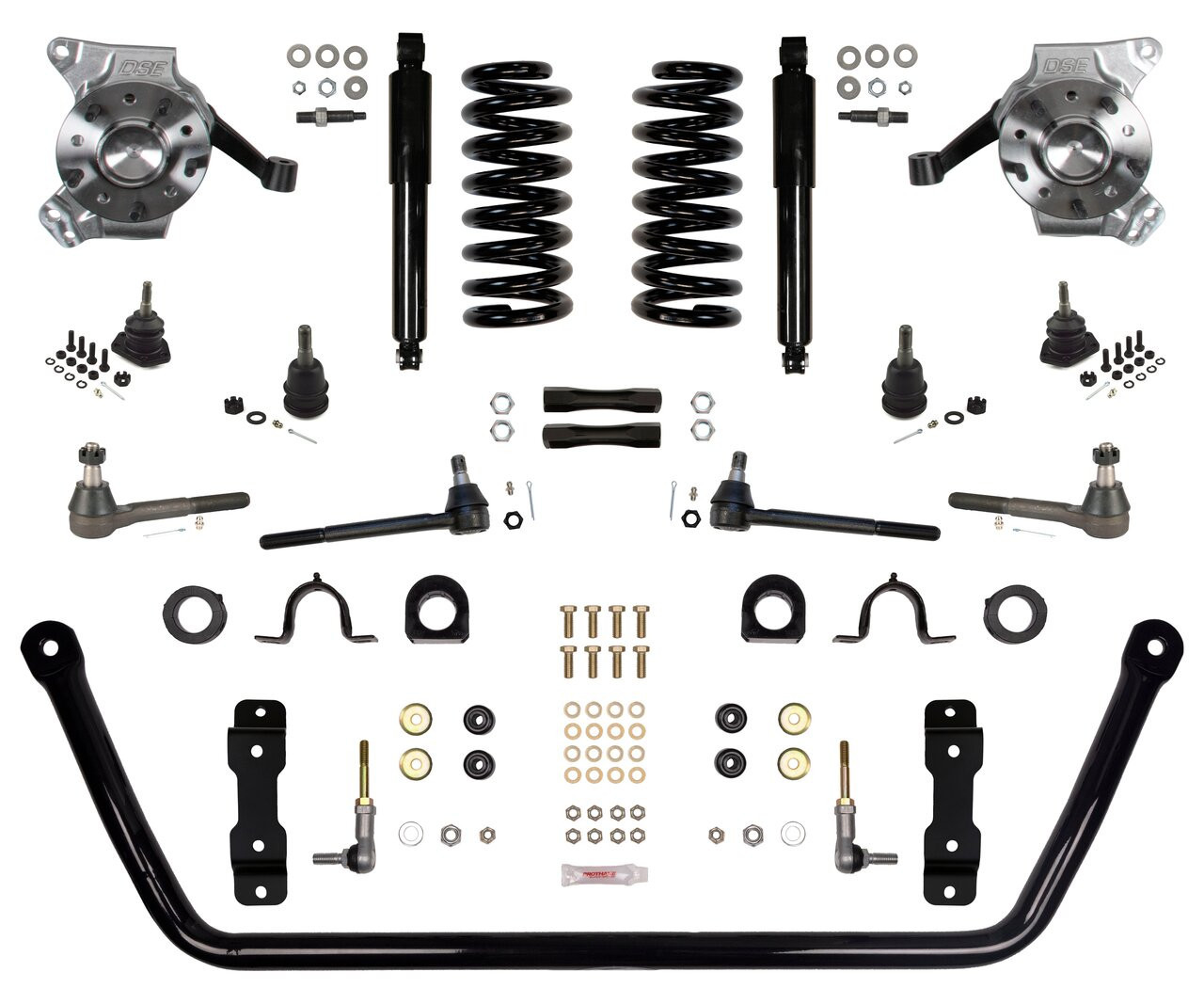

DSE Front Speed Kit 2 (032088DS) - 1971-1972 Chevrolet C10 / GMC C15 Trucks
Give your classic GM truck the lowered stance and tighter road manners it deserves with the Detroit Speed Front Speed Kit 2. Designed specifically for 1971-1972 Chevrolet C10 and GMC C15 2WD trucks, part number 032088DS combines drop springs, performance shocks, forged aluminum drop spindles, upgraded steering components, and a high-performance sway bar in a 100% bolt-on package. The system lowers the front ride height approximately 4.5 inches from stock while improving handling and body control, making it a well-rounded upgrade for street-driven, restomod, and performance-oriented C10 and C15 builds.
The 4.5-inch overall front drop is achieved by combining 2-inch drop coil springs with 2.5-inch drop spindle assemblies featuring Made-in-the-USA Detroit Speed forged aluminum uprights and forged steel steering arms. Modern GMT800-style truck hub-pack wheel bearings eliminate the need to pack traditional front wheel bearings and provide dual 5 x 5-inch and 5 x 4.75-inch wheel bolt patterns. The system is designed around 1999-2006 GMT800 Silverado brake architecture, allowing OE-style or compatible aftermarket brake options. Speed Kit 2 also includes a 1-7/16-inch diameter hollow tubular sway bar with a 0.188-inch wall that is 127% stiffer than the factory sway bar, along with upper and lower ball joints, inner and outer tie rod ends, and tubular tie rod adjusters for a comprehensive front suspension upgrade.
Specifications
- Part Number: 032088DS
- Product: Front Speed Kit 2
- Application: 1971-1972 Chevrolet C10 / GMC C15 2WD Trucks
- Position: Front
- Shock Type: Non-Adjustable
- Overall Front Drop: 4.5 inches
- Coil Spring Drop: 2 inches
- Spindle Drop: 2.5 inches
- Spindle / Upright Material: Forged Aluminum
- Steering Arm Material: Forged Steel
- Wheel Bearing Type: Modern GMT800-Style Truck Hub Pack
- Wheel Bolt Patterns: 5 x 5 inches and 5 x 4.75 inches
- Brake Configuration: OE-Style GMT800
- Brake Application: 1999-2006 Silverado-Style Components
- Sway Bar Diameter: 1-7/16 inches
- Sway Bar Design: Hollow Tubular
- Sway Bar Wall Thickness: 0.188 inch
- Sway Bar Rate: 127% Stiffer Than Factory Sway Bar
- Installation Type: 100% Bolt-On
- Steering Configuration: Steering Box
- Minimum Wheel Size: 17 inches
- Minimum Inside Wheel Diameter: 16.250 inches
- Coil Springs Included: Yes
- Shocks Included: Yes
- Sway Bar Included: Yes
- Upper Ball Joints Included: Yes
- Lower Ball Joints Included: Yes
- Inner Tie Rod Ends Included: Yes
- Outer Tie Rod Ends Included: Yes
- Tubular Tie Rod Adjusters Included: Yes
Features
- Front suspension and sway bar package engineered specifically for 1971-1972 Chevrolet C10 and GMC C15 2WD trucks
- Lowers the front ride height approximately 4.5 inches from stock for a more aggressive stance
- 100% bolt-on design provides a straightforward garage installation
- 2-inch drop coil springs and shocks provide improved ride and handling
- 2.5-inch drop spindle assemblies combine with the springs to achieve the complete 4.5-inch front drop
- Made-in-the-USA Detroit Speed forged aluminum uprights provide strength and durability
- Forged steel steering arms provide strong, durable steering connections
- Modern GMT800 Silverado-style hub-pack wheel bearings eliminate the need to pack traditional front wheel bearings
- Dual 5 x 5-inch and 5 x 4.75-inch wheel bolt patterns provide additional wheel compatibility
- Designed to use GMT800 brake calipers, brackets, and pads
- OE-style GMT800 brake architecture also allows compatible aftermarket brake options
- 1-7/16-inch diameter hollow tubular sway bar provides increased roll control
- 0.188-inch sway bar wall thickness combines strength with a hollow tubular design
- Sway bar is 127% stiffer than the factory sway bar for improved cornering and body control
- Includes upper and lower ball joints
- Includes inner and outer tie rod ends
- Includes tubular tie rod adjusters
- Designed for trucks retaining a steering box
- Comprehensive Speed Kit 2 package upgrades suspension, steering, stance, and body-roll control together
Installation & Fitment Notes
- Requires wheels measuring at least 17 inches with a minimum inside wheel diameter of 16.250 inches
- GMT800-style brakes are required for installation
- Designed to use GMT800 brake calipers, brackets, and pads with DSE 13-inch dual-drilled rotors
- This kit is designed for use with a steering box
- Designed for 2WD truck applications
Fitment
- 1971 Chevrolet C10 Pickup
- 1972 Chevrolet C10 Pickup
- 1971 GMC C15/C1500 Pickup
- 1972 GMC C15/C1500 Pickup
FAQs
How much does DSE Front Speed Kit 2 032088DS lower a 1971-1972 C10 or C15?
The kit lowers the front ride height approximately 4.5 inches from stock. Detroit Speed achieves the total drop by combining 2-inch drop coil springs with 2.5-inch drop spindle assemblies.
What does DSE 032088DS include?
The kit includes forged aluminum spindle assemblies, shocks, 2-inch drop coil springs, a 1-7/16-inch tubular sway bar, upper and lower ball joints, inner and outer tie rod ends, and tubular tie rod adjusters.
What brakes and wheels are required with DSE 032088DS?
GMT800-style brakes are required, and the system is designed around 1999-2006 Silverado brake components with DSE 13-inch dual-drilled rotors. Wheels must measure at least 17 inches with a minimum inside wheel diameter of 16.250 inches.
