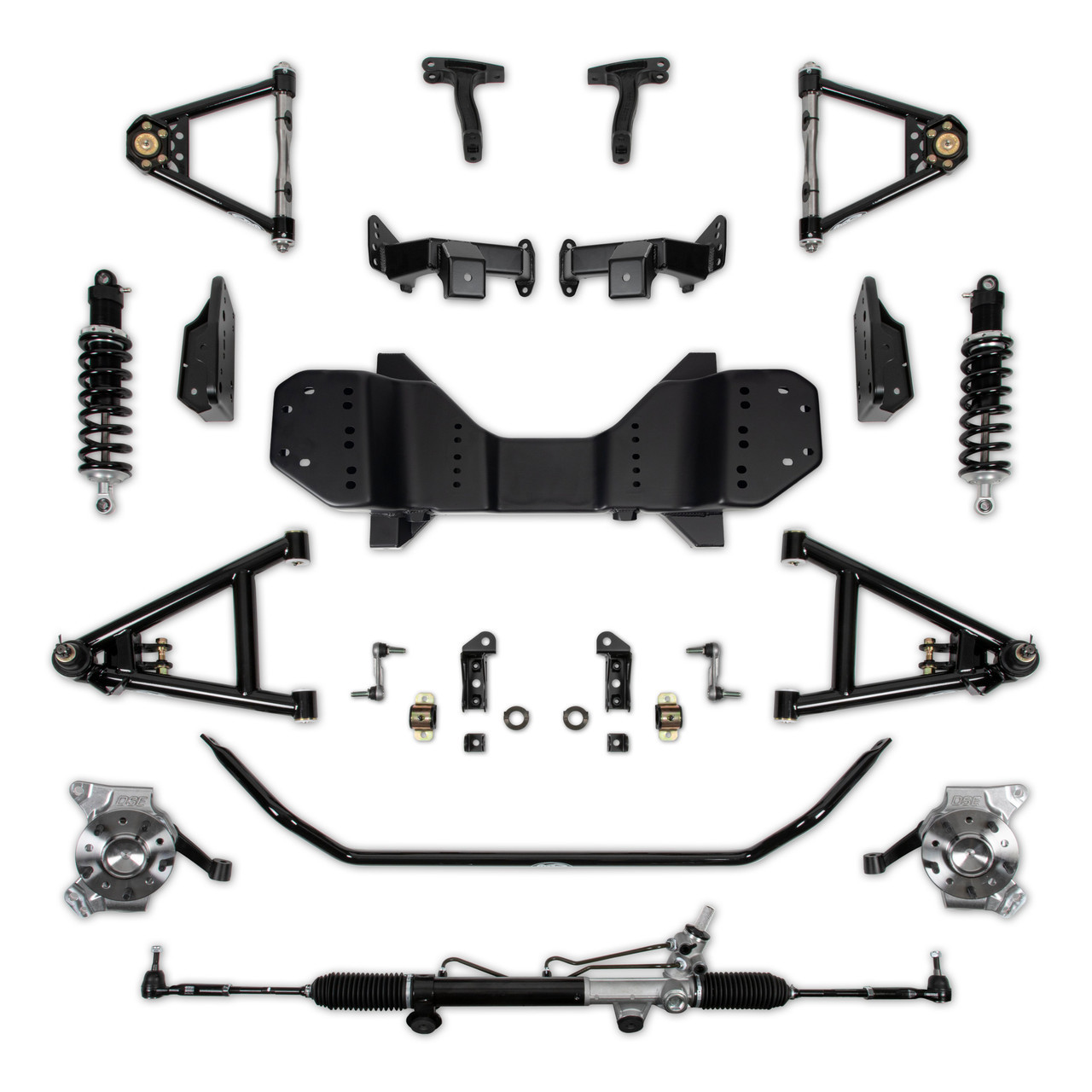

DSE SpeedMAX Front Suspension System - Double Adjustable Shocks (032082-DDS) - 1973-1987 Chevrolet C10 / GMC C15 SBC
Transform the front-end performance of your Squarebody GM pickup with the Detroit Speed SpeedMAX Front Suspension System. Designed specifically around the strength, weight, and demands of a truck platform, part number 032082-DDS combines Detroit Speed's exclusive suspension geometry with double-adjustable coilovers, Detroit Tuned rack and pinion steering, forged aluminum spindle assemblies, truck-specific tubular control arms, and an upgraded sway bar. Rather than relying on car-based suspension components, SpeedMAX uses truck-strength hardware engineered to deliver modern steering response, confident handling, excellent ride quality, and a properly lowered stance for your classic Chevrolet or GMC pickup.
This 100% bolt-on system can be installed without removing the engine or body panels and can be positioned in the stock location or 1 inch forward for improved wheel-to-fender alignment. Detroit Tuned aluminum-body coilover shocks pair with 550 pounds/inch springs to provide ride-height adjustment and spring-rate tuning while supporting a 4 to 6-inch drop. The double-adjustable shocks incorporate a gas-charged bladder and provide extensive damping control for drivers looking to fine-tune suspension performance. An ADI Austempered Ductile Iron upper shock bracket provides excellent wear resistance and fatigue strength, while forged-in-the-USA aluminum spindle assemblies use modern hub-pack wheel bearings and OE-style GMT800 brake architecture. Tubular control arms with Delrin bushings, stainless steel cross shafts with caster tuner bushings, and a performance sway bar complete a serious suspension package for street, restomod, and performance-oriented truck builds.
Specifications
- Part Number: 032082-DDS
- Product: SpeedMAX Front Suspension System
- Application: 1973-1987 Chevrolet / GMC Pickup
- Engine Specification: Small Block / LS
- Engine Mount Configuration: SBC Brackets
- Shock Type: Double Adjustable
- Shock Construction: Aluminum Body Coilover
- Shock Valving: Detroit Tuned
- Shock Design: Gas-Charged Bladder
- Spring Rate: 550 pounds/inch
- Installed Shock Length: 15 inches
- Drop Range: 4 to 6 inches
- Total Suspension Travel: 6 inches
- Static Camber: -0.5 degrees +/- 0.2 degrees
- Static Caster: 7 degrees +/- 0.5 degrees
- Static Toe: 0 degrees +/- 0.1 degrees
- Installation Type: 100% Bolt-On
- Installation Position: Stock Location or 1 Inch Forward
- Brake Design: OE-Style GMT800
- Brake Application: 1999-2006 GMT800 GM Truck Style
- Wheel Bolt Patterns: 5 x 5 inches and 5 x 4.75 inches
- Minimum Wheel Size: 17 inches
- Minimum Inside Wheel Diameter: 16.250 inches
- Finish: Powder Coated
Features
- Complete SpeedMAX front suspension engineered specifically for classic Chevrolet and GMC pickups
- Truck-strength components designed around the demands of a pickup platform
- Detroit Speed exclusive suspension geometry engineered for improved handling and ride quality at a lowered ride height
- 100% bolt-on design that can be installed without removing the engine or body panels
- Can be installed in the stock location or 1 inch forward for improved wheel-to-fender alignment
- Double-adjustable Detroit Tuned aluminum-body coilover shocks provide extensive suspension tuning capability
- Gas-charged bladder shock design provides high-frequency and low-speed damping control
- 550 pounds/inch coilover springs allow ride-height adjustment and spring-rate tuning
- Designed to provide a 4 to 6-inch lowered stance
- Detroit Tuned GMT800 rack and pinion provides positive and smooth steering response
- ADI Austempered Ductile Iron upper shock brackets provide excellent wear resistance and fatigue strength
- Forged-in-the-USA Detroit Speed aluminum spindle assemblies
- Modern hub-pack wheel bearings with dual 5 x 5-inch and 5 x 4.75-inch wheel bolt patterns
- OE-style GMT800 brake architecture allows stock or aftermarket brake options
- Designed around modern 1999-2006 GMT800 GM Truck brakes
- USA-forged steel steering arms bolt directly to the spindle assemblies
- Upgraded sway bar provides improved design and rate compared with the optional factory sway bar
- Polyurethane sway bar bushings and low-friction modern aluminum end links help control body roll
- Truck-specific tubular upper and lower control arms with Delrin bushings
- Stainless steel upper control arm cross shafts with caster tuner bushings
- Caster tuner bushings allow quick caster changes independent of camber
- SBC engine mount bracket configuration
Installation & Fitment Notes
- Requires wheels measuring at least 17 inches with a minimum inside wheel diameter of 16.250 inches
- DSE part number 050403DS brake rotors are required for this installation
- DSE part number 092531DS steering shaft is required for this installation
Fitment
- 1973 Chevrolet C10 Pickup
- 1974 Chevrolet C10 Pickup
- 1975 Chevrolet C10 Pickup
- 1976 Chevrolet C10 Pickup
- 1977 Chevrolet C10 Pickup
- 1978 Chevrolet C10 Pickup
- 1979 Chevrolet C10 Pickup
- 1980 Chevrolet C10 Pickup
- 1981 Chevrolet C10 Pickup
- 1982 Chevrolet C10 Pickup
- 1983 Chevrolet C10 Pickup
- 1984 Chevrolet C10 Pickup
- 1985 Chevrolet C10 Pickup
- 1986 Chevrolet C10 Pickup
- 1982 Chevrolet C15
- 1983 Chevrolet C15
- 1984 Chevrolet C15
- 1985 Chevrolet C15
- 1986 Chevrolet C15
- 1987 Chevrolet C15
- 1987 Chevrolet R10
- 1987 Chevrolet V10
- 1975 GMC C15
- 1976 GMC C15
- 1977 GMC C15
- 1978 GMC C15
- 1973 GMC C15/C1500 Pickup
- 1974 GMC C15/C1500 Pickup
- 1975 GMC C15/C1500 Pickup
- 1976 GMC C15/C1500 Pickup
- 1977 GMC C15/C1500 Pickup
- 1978 GMC C15/C1500 Pickup
FAQs
What do the double-adjustable shocks on DSE 032082-DDS offer?
The Detroit Tuned double-adjustable coilover shocks provide extensive damping control and incorporate a gas-charged bladder for high-frequency and low-speed damping control. This gives performance-focused drivers greater ability to tune suspension response while retaining excellent ride quality.
How much does the DSE 032082-DDS SpeedMAX system lower the truck?
The SpeedMAX front suspension is designed to provide a 4 to 6-inch drop. Its coilover design also allows ride-height adjustment and spring-rate tuning without requiring the control arms to be disassembled.
What additional parts and wheel requirements apply to DSE 032082-DDS?
The system requires wheels measuring at least 17 inches with a minimum inside wheel diameter of 16.250 inches. DSE part number 050403DS brake rotors and DSE part number 092531DS steering shaft are required for installation.
