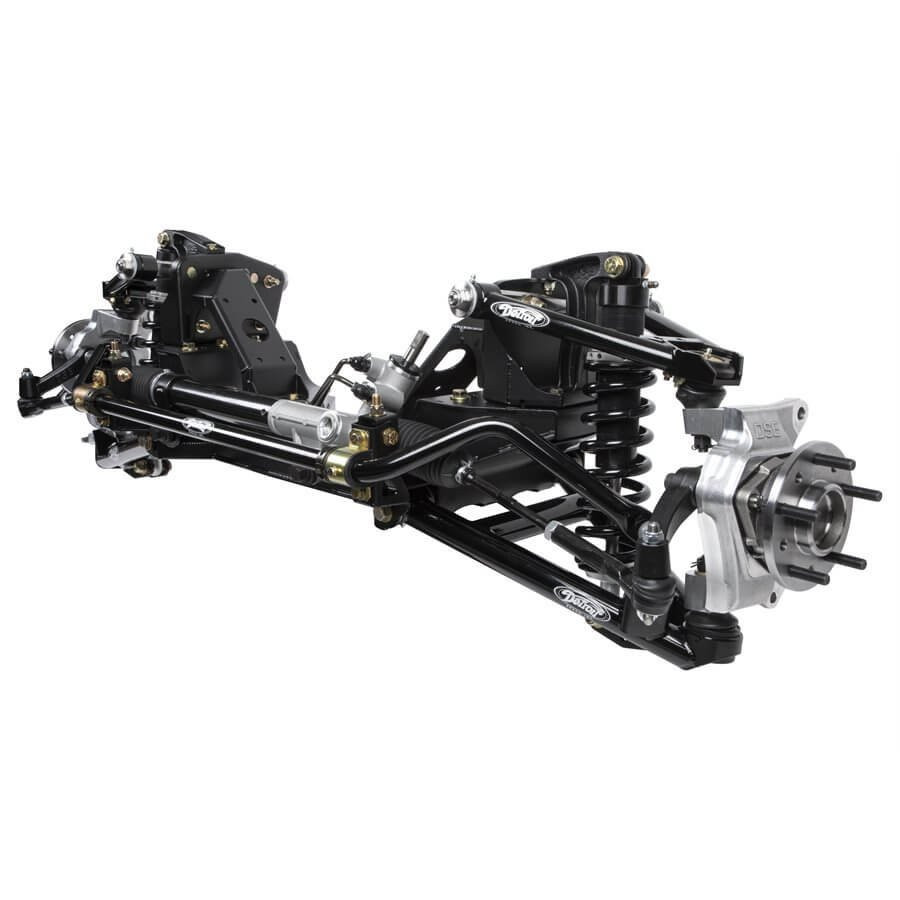

DSE SpeedMAX Front Suspension System - Non-Adjustable Shocks (032080DS) - 1967-1972 Chevrolet C10 / GMC C15 SBC
Transform the front end of your classic GM pickup with the Detroit Speed SpeedMAX Front Suspension System, engineered specifically around the strength, weight, and demands of a truck platform. Designed for 1967-1972 Chevrolet C10 and GMC C15 pickups, part number 032080DS combines Detroit Speed's exclusive suspension geometry with non-adjustable Detroit Tuned coilovers, rack and pinion steering, forged aluminum spindle assemblies, truck-specific tubular control arms, and a performance sway bar. Rather than adapting car-based suspension components to a pickup, SpeedMAX uses truck-strength components to deliver modern steering response, improved handling, excellent ride quality, and a properly lowered stance.
This 100% bolt-on system can be installed without removing the engine or body panels. Detroit Tuned aluminum-body coilover shocks are paired with 550 pounds/inch springs and provide ride-height adjustment and spring-rate tuning while supporting a 4 to 6-inch drop. The non-adjustable shock configuration provides Detroit Speed's pre-engineered damping without requiring the driver to make external shock adjustments. An ADI Austempered Ductile Iron upper shock bracket provides excellent wear resistance and fatigue strength, while forged-in-the-USA aluminum spindle assemblies use modern hub-pack wheel bearings and OE-style GMT800 brake architecture. Tubular upper and lower control arms with Delrin bushings, stainless steel cross shafts with caster tuner bushings, and an upgraded sway bar complete a package designed to make a lowered C10 or C15 handle with far more confidence.
Specifications
- Part Number: 032080DS
- Product: SpeedMAX Front Suspension System
- Application: 1967-1972 Chevrolet C10 / GMC C15
- Engine Mount Application: Small Block Chevrolet Brackets
- Shock Type: Non-Adjustable
- Shock Construction: Aluminum Body Coilover
- Shock Valving: Detroit Tuned
- Spring Rate: 550 pounds/inch
- Installed Shock Length: 15 inches
- Drop Range: 4 to 6 inches
- Total Suspension Travel: 6 inches
- Static Camber: -0.5 degrees +/- 0.2 degrees
- Static Caster: 7 degrees +/- 0.5 degrees
- Static Toe: 0 degrees +/- 0.1 degrees
- Installation Type: 100% Bolt-On
- Brake Design: OE-Style GMT800
- Brake Application: 1999-2006 GMT800 GM Truck Style
- Wheel Bolt Patterns: 5 x 5 inches and 5 x 4.75 inches
- Minimum Wheel Size: 17 inches
- Minimum Inside Wheel Diameter: 16.250 inches
- Finish: Powder Coated
Features
- Complete SpeedMAX front suspension engineered specifically for 1967-1972 Chevrolet C10 and GMC C15 pickups
- Truck-strength suspension components designed around the demands of a pickup platform
- Detroit Speed exclusive suspension geometry engineered for improved handling and ride quality at a lowered ride height
- 100% bolt-on design that can be installed without removing the engine or body panels
- Non-adjustable Detroit Tuned aluminum-body coilover shocks provide performance-focused damping without external shock adjustments
- 550 pounds/inch coilover springs allow ride-height adjustment and spring-rate tuning
- Designed to provide a 4 to 6-inch lowered stance
- Detroit Tuned GMT800 rack and pinion provides positive and smooth steering response
- ADI Austempered Ductile Iron upper shock brackets provide excellent wear resistance and fatigue strength
- Forged-in-the-USA Detroit Speed aluminum spindle assemblies
- Modern hub-pack wheel bearings with dual 5 x 5-inch and 5 x 4.75-inch bolt patterns
- OE-style GMT800 brake design supports stock or aftermarket brake options
- Designed to use modern 1999-2006 GMT800 GM Truck brakes with the appropriate DSE rotors
- USA-forged steel steering arms bolt directly to the spindle assemblies
- Upgraded sway bar provides improved design and rate compared with the optional factory sway bar
- Polyurethane sway bar bushings and low-friction modern aluminum end links help control body roll
- Truck-specific tubular upper and lower control arms with Delrin bushings
- Stainless steel upper control arm cross shafts with caster tuner bushings
- Caster tuner bushings allow quick caster changes independent of camber
- Accepts Small Block Chevrolet engine mounts
Installation & Fitment Notes
- Requires wheels measuring at least 17 inches with a minimum inside wheel diameter of 16.250 inches
- DSE part number 050403DS brake rotors are recommended for this installation
- DSE part number 092534DS steering shaft and Ididit part number 1120658010 steering column are required for this installation
Fitment
- 1967 Chevrolet C10 Pickup
- 1968 Chevrolet C10 Pickup
- 1969 Chevrolet C10 Pickup
- 1970 Chevrolet C10 Pickup
- 1971 Chevrolet C10 Pickup
- 1972 Chevrolet C10 Pickup
- 1967 GMC C15/C1500 Pickup
- 1968 GMC C15/C1500 Pickup
- 1969 GMC C15/C1500 Pickup
- 1970 GMC C15/C1500 Pickup
- 1971 GMC C15/C1500 Pickup
- 1972 GMC C15/C1500 Pickup
FAQs
How much does the DSE 032080DS SpeedMAX suspension lower a C10 or C15?
The SpeedMAX front suspension is designed for a 4 to 6-inch drop. Its coilover design also provides ride-height adjustment and spring-rate tuning without requiring the control arms to be disassembled.
What is different about the non-adjustable shocks in DSE 032080DS?
Part number 032080DS uses Detroit Tuned non-adjustable aluminum-body coilover shocks. The damping is pre-engineered by Detroit Speed, making this configuration ideal for drivers who want SpeedMAX handling and ride quality without having to make external shock adjustments.
What additional parts are needed to install DSE 032080DS?
The system requires DSE part number 092534DS steering shaft and Ididit part number 1120658010 steering column. DSE part number 050403DS brake rotors are recommended. Wheels must measure at least 17 inches with a minimum inside wheel diameter of 16.250 inches.
Why Buy from Beefcake Racing?
Beefcake Racing is your source for Detroit Speed suspension and chassis components for classic GM truck builds. Whether you are building a street-driven C10, a serious performance truck, or a complete restomod, our experienced team can help you select the right suspension, steering, and supporting components for your combination. Questions about DSE SpeedMAX part number 032080DS or your C10 build? Email sales@beefcakeracing.com or call 1-855-827-7223.
