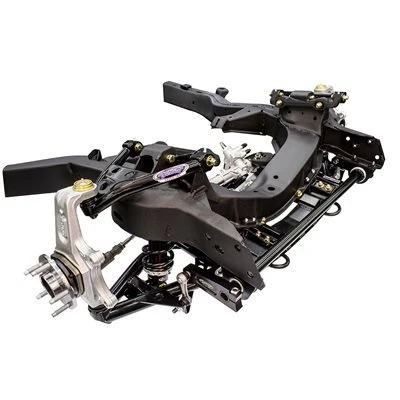

DSE SpeedRay Front Suspension Kit - Single Adjustable Shocks - Bolt-In Coilover Mounts (032073-SDS) - 1963-1982 Chevrolet Corvette BBC
Bring modern suspension geometry, steering precision, and tunable coilover performance to your C2 or C3 Corvette with the Detroit Speed SpeedRay Front Suspension Kit. Engineered specifically for 1963-1982 Chevrolet Corvettes with Big Block Chevrolet engines, part number 032073-SDS combines Detroit Speed's exclusive suspension geometry with bolt-in coilover mounts, quick-ratio power rack and pinion steering, forged aluminum uprights, tubular control arms, and single-adjustable DSE/JRi coilover shocks. This integrated front suspension system is built to deliver sharper response, improved control, and excellent ride quality for a classic Corvette that sees serious street or performance driving.
The SpeedRay system is built around a powder-coated bolt-on cradle assembly that improves suspension geometry while providing rigid mounting for the rack and pinion. TIG-welded tubular upper and lower control arms feature Delrin bushings, while control arm cross shafts and forged offset upper control arm mounting brackets incorporate caster tuner bushings to optimize suspension geometry. DSE/JRi aluminum-body coilovers combine Detroit Tuned valving with adjustable rebound damping, allowing shock response to be fine-tuned with the simple turn of a knob. This Big Block configuration uses 650 pounds/inch springs with an 8-inch free length. The system also includes an integrated splined sway bar with aluminum arms and composite bushings, plus Torrington bearings and a spanner tool for easier spring-height adjustments. The Corvette's body and engine do not need to be removed for installation.
Specifications
- Part Number: 032073-SDS
- Product: SpeedRay Front Suspension Kit
- Application: 1963-1982 Chevrolet Corvette
- Corvette Generations: C2 / C3
- Engine Application: Big Block Chevrolet
- Coilover Mount Style: Bolt-In
- Shock Type: Single Adjustable
- Shock Construction: Aluminum Body
- Shock Valving: Detroit Tuned
- Shock Adjustment: Rebound
- Spring Rate: 650 pounds/inch
- Spring Free Length: 8 inches
- Cradle Finish: Powder Coated
- Control Arm Construction: TIG-Welded Tubular
- Control Arm Bushings: Delrin
Features
- Complete SpeedRay front suspension system engineered for 1963-1982 C2 and C3 Corvettes with Big Block Chevrolet engines
- Detroit Speed exclusive suspension geometry engineered for improved handling and ride quality
- Bolt-in upper coilover mounting system
- Single-adjustable DSE/JRi aluminum-body coilover shocks with Detroit Tuned valving
- Rebound adjustment with the turn of a knob provides additional suspension tuning
- 650 pounds/inch coilover springs with an 8-inch free length
- Coilover system allows spring-rate tuning and ride-height adjustment
- Detroit Tuned quick-ratio power rack and pinion steering
- Powder-coated bolt-on cradle assembly provides rigid rack and pinion mounting
- Integrated tie-down eyelets incorporated into the cradle assembly
- TIG-welded tubular upper and lower control arms
- Delrin control arm bushings
- Control arm cross shafts with caster tuner bushings
- Forged offset upper control arm mounting brackets help optimize suspension geometry
- Forged aluminum Detroit Speed uprights
- Integrated splined sway bar with aluminum arms and composite bushings
- Torrington bearings and spanner tool included for easier spring-height adjustments
- Body and engine do not need to be removed for installation
Competition Rack & Pinion Note
For competition applications, the DSE rack and pinion fluid transfer conversion kit can replace the hardlines on the DSE rack and pinion with -4 AN steel fittings. The hoses are Teflon lined to handle the high-pressure demands of the steering system and feature pre-crimped stainless steel fittings for attachment to the -4 AN fittings.
Fitment
- 1963 Chevrolet Corvette
- 1964 Chevrolet Corvette
- 1965 Chevrolet Corvette
- 1966 Chevrolet Corvette
- 1967 Chevrolet Corvette
- 1968 Chevrolet Corvette
- 1969 Chevrolet Corvette
- 1970 Chevrolet Corvette
- 1971 Chevrolet Corvette
- 1972 Chevrolet Corvette
- 1973 Chevrolet Corvette
- 1974 Chevrolet Corvette
- 1975 Chevrolet Corvette
- 1976 Chevrolet Corvette
- 1977 Chevrolet Corvette
- 1978 Chevrolet Corvette
- 1979 Chevrolet Corvette
- 1980 Chevrolet Corvette
- 1981 Chevrolet Corvette
- 1982 Chevrolet Corvette
- Engine Application: Big Block Chevrolet
FAQs
What adjustment does the DSE 032073-SDS single-adjustable shock provide?
The DSE/JRi single-adjustable shock combines Detroit Tuned valving with adjustable rebound damping. Rebound can be changed with the simple turn of a knob, giving the driver additional control over shock response while maintaining excellent ride quality on the street.
Does DSE 032073-SDS require fabrication for the coilover mounts?
No. Part number 032073-SDS is specifically the bolt-in coilover mount version of the SpeedRay front suspension. The bolt-in configuration provides the benefits of the SpeedRay system without requiring the fabricated competition-style upper coilover mounts.
What engine application and spring rate does DSE 032073-SDS use?
Part number 032073-SDS is designed for Big Block Chevrolet engine applications in 1963-1982 Corvettes and uses 650 pounds/inch coilover springs with an 8-inch free length.
