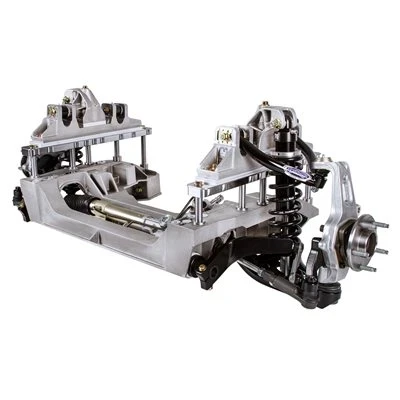

DSE Aluma-Frame Front Suspension System - Base Shocks (032051DS) - 1964-1970 Ford Mustang - GM 5x4.75 in. Bolt Pattern
Bring modern suspension geometry, steering response, and road manners to your classic Mustang with the Detroit Speed Aluma-Frame Front Suspension System 032051DS. Designed for 1964-1970 Ford Mustangs, this complete all-aluminum front suspension system combines a lightweight cast aluminum cradle with Detroit Speed's performance-focused geometry and 6 inches of suspension travel. The system integrates tubular control arms, coilover suspension, power rack-and-pinion steering, and a splined anti-roll bar into a package engineered for serious street and track performance while retaining the factory frame rails and inner fenders.
Part number 032051DS is the GM 5 x 4.75-inch bolt-pattern configuration equipped with Detroit Speed/JRi non-adjustable aluminum coilover shocks featuring Detroit Tuned valving. The fixed-valve base shocks provide the dynamic response of Detroit Speed's performance shock platform without requiring external damping adjustments, making this version an excellent choice for builders who want a carefully engineered suspension package without the additional setup requirements of adjustable shocks. Speed-LIGN caster/camber adjusters provide quick, precise alignment changes without additional shims, while the integrated steering and anti-roll bar systems help deliver a cohesive, responsive front-end package.
Specifications
- Manufacturer: Detroit Speed
- Part Number: 032051DS
- Product Type: Aluma-Frame Front Suspension System
- Vehicle Application: 1964-1970 Ford Mustang
- Bolt Pattern: GM 5 x 4.75 inches
- Shock Type: Base / Non-Adjustable
- Shock Construction: Detroit Speed/JRi Aluminum Coilover
- Shock Valving: Detroit Tuned
- Spring Rate: 400 lbs/in
- Spring Free Length: 10 inches
- Total Suspension Travel: 6 inches
- Construction: All-Aluminum Front Suspension System
- Steering: Detroit Tuned Power Rack and Pinion
- Control Arms: Tubular Upper and Lower
- Alignment Adjustment: Speed-LIGN Caster/Camber Adjusters
- Anti-Roll Bar: Integrated Splined Design
- Minimum Wheel Diameter: 17 inches
- Minimum Inside Wheel Diameter: 16.250 inches
Features
- All-aluminum front suspension system engineered for 1964-1970 Ford Mustangs
- Unique cast aluminum cradle and mounting components provide a high strength-to-weight ratio and precise fitment
- Detroit Speed suspension geometry is engineered to improve ride quality, handling, and front-end response
- Provides 6 inches of total suspension travel
- Detroit Speed/JRi non-adjustable aluminum coilover shocks feature Detroit Tuned valving
- 400 lbs/in coilover springs with a 10-inch free length
- Tubular upper and lower control arms
- Detroit Tuned power rack-and-pinion steering
- Speed-LIGN caster/camber adjusters allow precise alignment changes without additional shims
- Torrington bearings support smooth coilover spring adjustment
- Integrated splined anti-roll bar helps control body roll during cornering
- Composite anti-roll bar bushings
- Forged Detroit Speed spindles
- Aluminum uprights and hub packs configured for a GM 5 x 4.75-inch bolt pattern
- Can accommodate up to P265/35R18 tires on 9-inch wheels on early models
- Can accommodate up to P295/35R18 tires on 10.5-inch wheels on later models
- Retains the stock Mustang frame rails and inner fenders
- Requires only a small amount of fabrication for installation
- Engine mount kits are available for Ford small block Windsor, Ford FE big block, Ford 4.6-liter and 5.4-liter modular, Coyote 5.0-liter including Boss 302, and GM LS engines
- Includes spanner tool for coilover adjustment
- Designed, engineered, and developed for road and track use
- Made in the USA
Fitment Notes
- Anti-roll bar arms have a satin black finish
- Upper and lower control arms have a gloss black finish
- Requires wheels measuring at least 17 inches in diameter
- Wheels require a minimum inside wheel diameter of 16.250 inches
- The Aluma-Frame requires modification for alternator clearance when used with a Coyote engine
- Detroit Speed alternator relocation bracket 060436 is required along with Aluma-Frame modification for Coyote applications
- For competition applications, the Detroit Speed rack-and-pinion fluid transfer conversion kit can replace the factory-style rack hardlines using -4 AN steel fittings
- The fluid transfer conversion kit uses PTFE-lined high-pressure hoses with pre-crimped stainless steel fittings
Fitment
- 1964 Ford Mustang
- 1965 Ford Mustang
- 1966 Ford Mustang
- 1967 Ford Mustang
- 1968 Ford Mustang
- 1969 Ford Mustang
- 1970 Ford Mustang
FAQs
What shocks are included with DSE 032051DS?
Part number 032051DS includes Detroit Speed/JRi non-adjustable aluminum coilover shocks with Detroit Tuned valving. This fixed-valve configuration provides performance-oriented damping without requiring external shock adjustments.
What bolt pattern does DSE 032051DS use?
Detroit Speed identifies part number 032051DS as the GM 5 x 4.75-inch bolt-pattern version of the Mustang Aluma-Frame system.
How much suspension travel does the Aluma-Frame provide?
The Aluma-Frame provides 6 inches of total suspension travel and is engineered to combine performance handling with usable ride quality for street and track-oriented Mustang builds.
Does the Aluma-Frame retain the factory Mustang frame rails and inner fenders?
Yes. Detroit Speed designed the Aluma-Frame to retain the stock frame rails and inner fenders, although a small amount of fabrication is required during installation.
Can DSE 032051DS be used with a Coyote engine?
Yes. Engine mount solutions are available for Coyote 5.0-liter applications, but the Aluma-Frame requires modification for alternator clearance. Detroit Speed alternator relocation bracket 060436 is also required.
What wheel size is required?
Detroit Speed specifies a minimum 17-inch wheel with at least 16.250 inches of inside wheel diameter.
