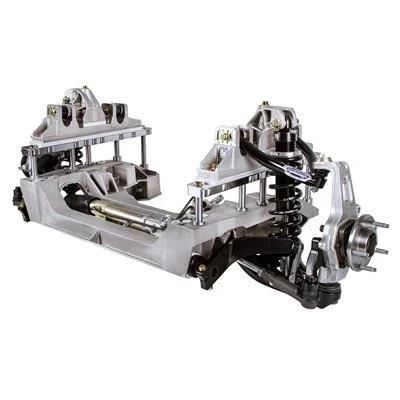

DSE Aluma-Frame Front Suspension System - Single Adjustable Shocks (032051-SDS) - 1964-1970 Ford Mustang - GM 5x4.75 in. Bolt Pattern
Give your classic Mustang the precision and response of a modern performance suspension with the Detroit Speed Aluma-Frame Front Suspension System 032051-SDS. Engineered for 1964-1970 Ford Mustangs, this all-aluminum front suspension system combines Detroit Speed's performance-focused geometry with 6 inches of suspension travel, a lightweight cast aluminum cradle, tubular control arms, power rack-and-pinion steering, and an integrated splined anti-roll bar. The complete system is designed to sharpen steering response, improve handling, and deliver controlled ride quality for serious street and track builds while retaining the factory frame rails and inner fenders.
Part number 032051-SDS is the GM 5 x 4.75-inch bolt-pattern configuration and includes Detroit Speed/JRi single-adjustable aluminum coilover shocks with Detroit Tuned valving. These shocks build on the base shock package by adding rebound adjustment through an easy-to-use adjustment knob, giving you the ability to fine-tune suspension response for your driving style and vehicle setup. Speed-LIGN caster/camber adjusters allow precise alignment changes without additional shims, while the integrated steering, anti-roll bar, forged spindle, and control arm components work together as a complete performance suspension system.
Specifications
- Manufacturer: Detroit Speed
- Part Number: 032051-SDS
- Product Type: Aluma-Frame Front Suspension System
- Vehicle Application: 1964-1970 Ford Mustang
- Bolt Pattern: GM 5 x 4.75 inches
- Finish: Aluminum
- Shock Type: Single Adjustable
- Shock Construction: Detroit Speed/JRi Aluminum Coilover
- Shock Valving: Detroit Tuned
- Shock Adjustment: Rebound Adjustable
- Spring Rate: 400 lbs/in
- Spring Free Length: 10 inches
- Total Suspension Travel: 6 inches
- Ride Height: 1 inch +/- 1 inch
- Static Camber: -0.5 degrees +/- 0.2 degrees
- Static Caster: 8 degrees +/- 0.5 degrees
- Static Toe: 0 degrees +/- 0.1 degrees
- Turning Angle: 27 degrees
- Ackerman Angle at 15-Degree Turning Angle: 0.875 degree
- Steering: Detroit Tuned Power Rack and Pinion
- Control Arms: Tubular Upper and Lower
- Alignment Adjustment: Speed-LIGN Caster/Camber Adjusters
- Anti-Roll Bar: Integrated Splined Design
- Minimum Wheel Diameter: 17 inches
- Minimum Inside Wheel Diameter: 16.250 inches
Features
- All-aluminum front suspension system engineered for 1964-1970 Ford Mustangs
- Unique cast aluminum cradle and mounting components provide a high strength-to-weight ratio and precise fitment
- Detroit Speed suspension geometry is engineered for improved ride quality and handling
- Provides 6 inches of total suspension travel
- Detroit Speed/JRi single-adjustable aluminum coilover shocks with Detroit Tuned valving
- Rebound damping can be adjusted with the turn of a knob for convenient suspension tuning
- 400 lbs/in coilover springs with a 10-inch free length
- Tubular upper and lower control arms
- Detroit Tuned power rack-and-pinion steering
- Speed-LIGN caster/camber adjusters allow precise and repeatable alignment changes without additional shims
- Torrington bearings support smooth coilover adjustment
- Integrated splined anti-roll bar helps control body roll during cornering
- Composite anti-roll bar bushings
- Forged Detroit Speed spindles
- Aluminum uprights and hub packs configured for a GM 5 x 4.75-inch bolt pattern
- Can accommodate up to P265/35R18 tires on 9-inch wheels on early models
- Can accommodate up to P295/35R18 tires on 10.5-inch wheels on later models
- Retains the stock Mustang frame rails and inner fenders
- Requires only a small amount of fabrication for installation
- Engine mount kits are available for Ford small block Windsor, Ford FE big block, Ford 4.6-liter and 5.4-liter modular, Coyote 5.0-liter including Boss 302, and GM LS engines
- Includes spanner tool for coilover adjustment
- Designed, engineered, and developed for road and track performance
- Made in the USA
Fitment Notes
- Anti-roll bar arms have a satin black finish
- Upper and lower control arms have a gloss black finish
- Requires wheels measuring at least 17 inches in diameter
- Wheels require a minimum inside wheel diameter of 16.250 inches
- The Aluma-Frame requires modification for alternator clearance when used with a Coyote engine
- Detroit Speed alternator relocation bracket 060436 is required along with Aluma-Frame modification for the Coyote engine application
- For competition applications, the Detroit Speed rack-and-pinion fluid transfer conversion kit can replace the rack hardlines using -4 AN steel fittings
- The fluid transfer conversion kit uses PTFE-lined high-pressure hoses with pre-crimped stainless steel fittings
Fitment
- 1964 Ford Mustang
- 1965 Ford Mustang
- 1966 Ford Mustang
- 1967 Ford Mustang
- 1968 Ford Mustang
- 1969 Ford Mustang
- 1970 Ford Mustang
FAQs
What shocks are included with DSE 032051-SDS?
Part number 032051-SDS includes Detroit Speed/JRi single-adjustable aluminum coilover shocks with Detroit Tuned valving. Rebound damping can be adjusted with the shock-mounted adjustment knob, allowing you to tune suspension response for your vehicle and driving preferences.
What bolt pattern does DSE 032051-SDS use?
Detroit Speed specifies a GM 5 x 4.75-inch bolt pattern for part number 032051-SDS. This distinguishes it from the 032050-series Mustang Aluma-Frame systems that use the Ford 5 x 4.5-inch bolt pattern.
How much suspension travel does the Aluma-Frame provide?
The Aluma-Frame provides 6 inches of total suspension travel and is engineered to deliver both performance-oriented handling and usable street ride quality.
Does the Aluma-Frame retain the Mustang's stock frame rails and inner fenders?
Yes. The system retains the stock frame rails and inner fenders, although Detroit Speed specifies that a small amount of fabrication is required during installation.
Can DSE 032051-SDS be used with a Coyote engine?
Yes. Engine mount solutions are available for Coyote 5.0-liter applications, but the Aluma-Frame requires modification for alternator clearance. Detroit Speed alternator relocation bracket 060436 is also required.
What wheel size is required with DSE 032051-SDS?
Detroit Speed requires wheels measuring at least 17 inches in diameter with a minimum inside wheel diameter of 16.250 inches.
