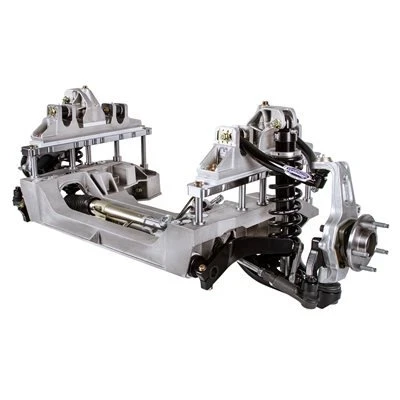

DSE Aluma-Frame Front Suspension System - Double Adjustable Remote Shocks (032051-RDS) - 1964-1970 Ford Mustang - GM 5x4.75 in. Bolt Pattern
Take your classic Mustang's front suspension to a serious pro-touring level with the Detroit Speed Aluma-Frame Front Suspension System 032051-RDS. Engineered for 1964-1970 Ford Mustangs, this all-aluminum system combines Detroit Speed's performance-focused suspension geometry with 6 inches of suspension travel, a lightweight cast aluminum cradle, tubular control arms, power rack-and-pinion steering, and an integrated splined anti-roll bar. The result is a complete front suspension package designed to deliver sharper steering response, confident handling, and excellent ride quality on both the street and track while retaining the factory frame rails and inner fenders.
Part number 032051-RDS is the GM 5 x 4.75-inch bolt-pattern configuration and includes Detroit Speed/JRi double-adjustable remote-canister aluminum coilover shocks with Detroit Tuned valving. These shocks combine the tuning capabilities of the double-adjustable design with a gas-charged remote canister for additional damping control. Billet aluminum remote canister mounts secure the canisters to the vehicle, while Speed-LIGN caster/camber adjusters provide quick and precise alignment changes without additional shims. Combined with Detroit Tuned rack-and-pinion steering, forged spindles, tubular control arms, and an integrated anti-roll bar, this is the premium Aluma-Frame shock configuration for builders who want extensive suspension tuning capability.
Specifications
- Manufacturer: Detroit Speed
- Part Number: 032051-RDS
- Product Type: Aluma-Frame Front Suspension System
- Vehicle Application: 1964-1970 Ford Mustang
- Bolt Pattern: GM 5 x 4.75 inches
- Shock Type: Double Adjustable with Remote Canister
- Shock Construction: Detroit Speed/JRi Aluminum Coilover
- Shock Valving: Detroit Tuned
- Remote Canister: Gas-Charged Bladder Design
- Remote Canister Mounts: Billet Aluminum
- Remote Canister Mount Hardware: Two 1/4-20 x 1/2-inch Button Head Screws
- Spring Rate: 400 lbs/in
- Spring Free Length: 10 inches
- Total Suspension Travel: 6 inches
- Construction: All-Aluminum Front Suspension System
- Steering: Detroit Tuned Power Rack and Pinion
- Control Arms: Tubular Upper and Lower
- Alignment Adjustment: Speed-LIGN Caster/Camber Adjusters
- Anti-Roll Bar: Integrated Splined Design
- Minimum Wheel Diameter: 17 inches
- Minimum Inside Wheel Diameter: 16.250 inches
Features
- All-aluminum front suspension system engineered for 1964-1970 Ford Mustangs
- Unique cast aluminum cradle and mounting components provide a high strength-to-weight ratio and precise fitment
- Detroit Speed suspension geometry is engineered for improved ride quality, handling, and steering response
- Provides 6 inches of total suspension travel
- Detroit Speed/JRi double-adjustable remote-canister aluminum coilover shocks with Detroit Tuned valving
- Double-adjustable shock design provides extensive suspension tuning capability
- Gas-charged bladder remote canisters provide additional high-frequency and low-speed damping control
- Billet aluminum mounts secure the remote shock canisters to the vehicle
- 400 lbs/in coilover springs with a 10-inch free length
- Tubular upper and lower control arms
- Detroit Tuned power rack-and-pinion steering
- Speed-LIGN caster/camber adjusters provide precise alignment changes without additional shims
- Torrington bearings support smooth coilover spring adjustment
- Integrated splined anti-roll bar helps control body roll during cornering
- Composite anti-roll bar bushings
- Forged Detroit Speed spindles
- Aluminum uprights and hub packs configured for a GM 5 x 4.75-inch bolt pattern
- Can accommodate up to P265/35R18 tires on 9-inch wheels on early models
- Can accommodate up to P295/35R18 tires on 10.5-inch wheels on later models
- Retains the stock Mustang frame rails and inner fenders
- Requires only a small amount of fabrication for installation
- Engine mount kits are available for Ford small block Windsor, Ford FE big block, Ford 4.6-liter and 5.4-liter modular, Coyote 5.0-liter including Boss 302, and GM LS engines
- Includes spanner tool for coilover adjustment
- Designed, engineered, and developed for road and track performance
- Made in the USA
Fitment Notes
- Anti-roll bar arms have a satin black finish
- Upper and lower control arms have a gloss black finish
- Requires wheels measuring at least 17 inches in diameter
- Wheels require a minimum inside wheel diameter of 16.250 inches
- The Aluma-Frame requires modification for alternator clearance when used with a Coyote engine
- Detroit Speed alternator relocation bracket 060436 is required along with Aluma-Frame modification for the Coyote engine application
- For competition applications, the Detroit Speed rack-and-pinion fluid transfer conversion kit can replace the rack hardlines using -4 AN steel fittings
- The fluid transfer conversion kit uses PTFE-lined high-pressure hoses with pre-crimped stainless steel fittings
Fitment
- 1964 Ford Mustang
- 1965 Ford Mustang
- 1966 Ford Mustang
- 1967 Ford Mustang
- 1968 Ford Mustang
- 1969 Ford Mustang
- 1970 Ford Mustang
FAQs
What shocks are included with DSE 032051-RDS?
Part number 032051-RDS includes Detroit Speed/JRi double-adjustable aluminum coilover shocks with remote canisters and Detroit Tuned valving. The remote-canister design incorporates a gas-charged bladder for additional damping control.
What bolt pattern does DSE 032051-RDS use?
Detroit Speed identifies 032051-RDS as the GM 5 x 4.75-inch bolt-pattern version of the Mustang Aluma-Frame system.
What is the advantage of the remote-canister shocks?
The remote-canister shocks retain the tuning capability of Detroit Speed's double-adjustable design while incorporating a gas-charged bladder to provide additional high-frequency and low-speed damping control.
Does the system retain the Mustang's stock frame rails and inner fenders?
Yes. The Aluma-Frame is designed to retain the stock frame rails and inner fenders, although Detroit Speed specifies that a small amount of fabrication is required for installation.
Can DSE 032051-RDS be used with a Coyote engine?
Yes. Engine mount solutions are available for Coyote 5.0-liter applications, but the Aluma-Frame requires modification for alternator clearance. Detroit Speed alternator relocation bracket 060436 is also required.
What wheel size is required with the Aluma-Frame?
Detroit Speed requires wheels measuring at least 17 inches in diameter with a minimum inside wheel diameter of 16.250 inches.
Why Buy Detroit Speed from Beefcake Racing?
Beefcake Racing is your source for Detroit Speed suspension, steering, chassis, and pro-touring components for serious street and track builds. Choosing compatible suspension, steering, brakes, wheels, tires, and engine mounting components is critical when building a complete Mustang chassis package, and our team can help you select the right combination for your project. Questions about DSE 032051-RDS or your Mustang build? Email sales@beefcakeracing.com or call 1-855-827-7223.
