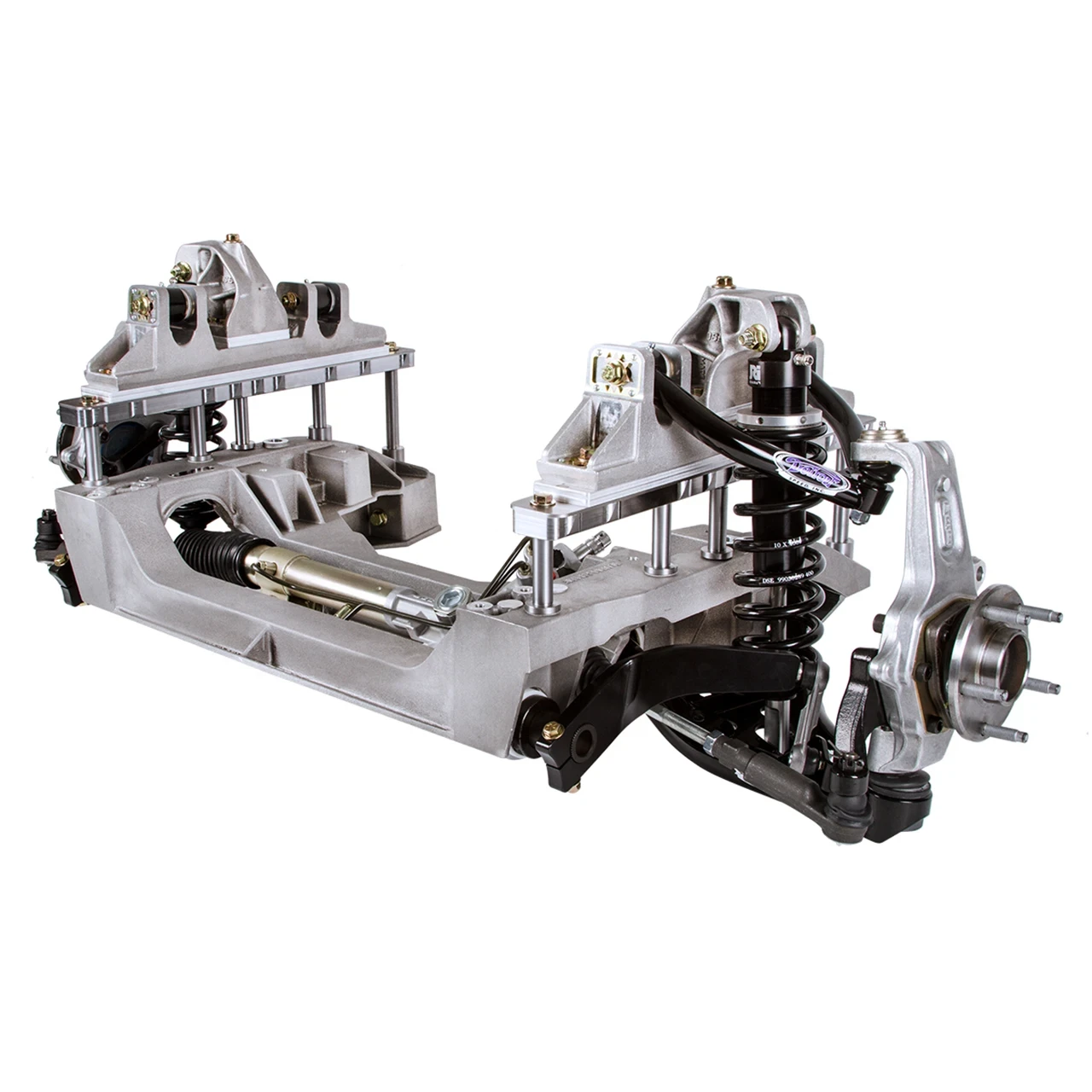

DSE Aluma-Frame Front Suspension System - Single Adjustable Shocks (032050-SDS) - 1964-1970 Ford Mustang
Give your classic Mustang the front suspension performance of a purpose-built modern performance car with the Detroit Speed Aluma-Frame Front Suspension System 032050-SDS. Engineered for 1964-1970 Ford Mustangs, this all-aluminum system combines Detroit Speed's performance suspension geometry with a lightweight cast aluminum cradle, tubular control arms, coilover shocks, power rack-and-pinion steering, and an integrated splined anti-roll bar. With 6 inches of total suspension travel, the Aluma-Frame is designed to improve steering response, cornering control, ride quality, and overall chassis performance on both the street and track.
Part number 032050-SDS is the Ford 5 x 4.5-inch bolt-pattern version equipped with Detroit Speed/JRi single-adjustable aluminum coilover shocks featuring Detroit Tuned valving. The single-adjustable design adds rebound adjustment through a simple external knob, allowing the driver to fine-tune shock response while retaining the street-friendly ride characteristics of the base shock. Speed-LIGN caster/camber adjusters provide precise alignment adjustment without additional shims, while the Detroit Tuned rack-and-pinion steering, tubular control arms, forged Detroit Speed spindles, and integrated anti-roll bar work together as a complete performance suspension package.
Specifications
- Manufacturer: Detroit Speed
- Part Number: 032050-SDS
- Product Type: Aluma-Frame Front Suspension System
- Vehicle Application: 1964-1970 Ford Mustang
- Finish: Aluminum
- Bolt Pattern: Ford 5 x 4.5 inches
- Shock Type: Single Adjustable
- Shock Construction: Detroit Speed/JRi Aluminum Coilover
- Shock Valving: Detroit Tuned
- Shock Adjustment: Rebound
- Spring Rate: 400 lbs/in
- Spring Free Length: 10 inches
- Total Suspension Travel: 6 inches
- Ride Height: 1 inch +/- 1 inch
- Static Camber: -0.5 degrees +/- 0.2 degrees
- Static Caster: 8 degrees +/- 0.5 degrees
- Static Toe: 0 degrees +/- 0.1 degrees
- Total Bumpsteer: 0.070 inch
- Turning Angle: 27 degrees
- Ackerman Angle at 15-Degree Turning Angle: 0.875 degree
- Steering: Detroit Tuned Power Rack and Pinion
- Control Arms: Tubular Upper and Lower
- Alignment Adjustment: Speed-LIGN Caster/Camber Adjusters
- Anti-Roll Bar: Integrated Splined Design
Features
- All-aluminum front suspension system engineered for 1964-1970 Ford Mustangs
- Unique cast aluminum cradle and mounting components provide a high strength-to-weight ratio and precise fitment
- Detroit Speed suspension geometry is engineered for improved ride quality, handling, and steering response
- Provides 6 inches of total suspension travel
- Detroit Speed/JRi single-adjustable aluminum coilover shocks feature Detroit Tuned valving
- External rebound adjustment allows shock tuning with the simple turn of a knob
- 400 lbs/in coilover springs with a 10-inch free length
- Tubular upper and lower control arms
- Detroit Tuned power rack-and-pinion steering
- Speed-LIGN caster/camber adjusters provide a wide range of precise alignment adjustment without additional shims
- Torrington bearings support smooth coilover spring adjustment
- Integrated splined anti-roll bar helps control body roll during cornering
- Composite anti-roll bar bushings
- Forged Detroit Speed spindles
- Aluminum uprights and hub packs use a Ford 5 x 4.5-inch bolt pattern
- Can accommodate up to P265/35R18 tires on 9-inch wheels on early models
- Can accommodate up to P295/35R18 tires on 10.5-inch wheels on later models
- Retains the Mustang's stock frame rails and inner fenders
- Requires only a limited amount of fabrication for installation
- Engine mount kits are available for Ford small block Windsor, Ford FE big block, Ford 4.6-liter and 5.4-liter modular, Coyote 5.0-liter including Boss 302, and GM LS engines
- Includes spanner tool for coilover adjustment
- Engineered and developed for road and track performance
- Made in the USA
Fitment Notes
- Anti-roll bar arms have a satin black finish
- Upper and lower control arms have a gloss black finish
- Requires at least 17-inch wheels
- Wheels must provide a minimum inside wheel diameter of 16.250 inches
- The Aluma-Frame must be modified for alternator clearance when used with a Coyote engine
- Detroit Speed alternator relocation bracket 060436 is required along with Aluma-Frame modification for the Coyote engine application
- For competition applications, the Detroit Speed rack-and-pinion fluid transfer conversion kit can replace the rack hardlines using -4 AN steel fittings
- The fluid transfer conversion kit uses PTFE-lined high-pressure hoses with pre-crimped stainless steel fittings
Fitment
- 1964 Ford Mustang
- 1965 Ford Mustang
- 1966 Ford Mustang
- 1967 Ford Mustang
- 1968 Ford Mustang
- 1969 Ford Mustang
- 1970 Ford Mustang
FAQs
What shocks are included with DSE 032050-SDS?
Part number 032050-SDS includes Detroit Speed/JRi single-adjustable aluminum coilover shocks with Detroit Tuned valving. Rebound adjustment is built into the shocks and can be changed using an external adjustment knob.
What does the single-adjustable shock allow me to tune?
The single-adjustable configuration provides rebound adjustment, allowing you to fine-tune how the suspension responds as the shock extends after compression while retaining the ride quality engineered into the Detroit Tuned shock package.
What wheel bolt pattern does 032050-SDS use?
This Aluma-Frame configuration uses aluminum uprights and hub packs with a Ford 5 x 4.5-inch bolt pattern.
How much suspension travel does the Aluma-Frame provide?
Detroit Speed specifies 6 inches of total suspension travel for the Aluma-Frame system.
Does the Aluma-Frame retain the Mustang's stock frame rails and inner fenders?
Yes. The Aluma-Frame is designed to retain the factory frame rails and inner fenders, although a small amount of fabrication is required for installation.
Can DSE 032050-SDS be used with a Coyote engine?
Yes. Engine mount solutions are available for Coyote 5.0-liter applications, but the Aluma-Frame requires modification for alternator clearance. Detroit Speed alternator relocation bracket 060436 is also required.
What size wheels are required?
Detroit Speed requires at least 17-inch wheels with a minimum inside wheel diameter of 16.250 inches.
