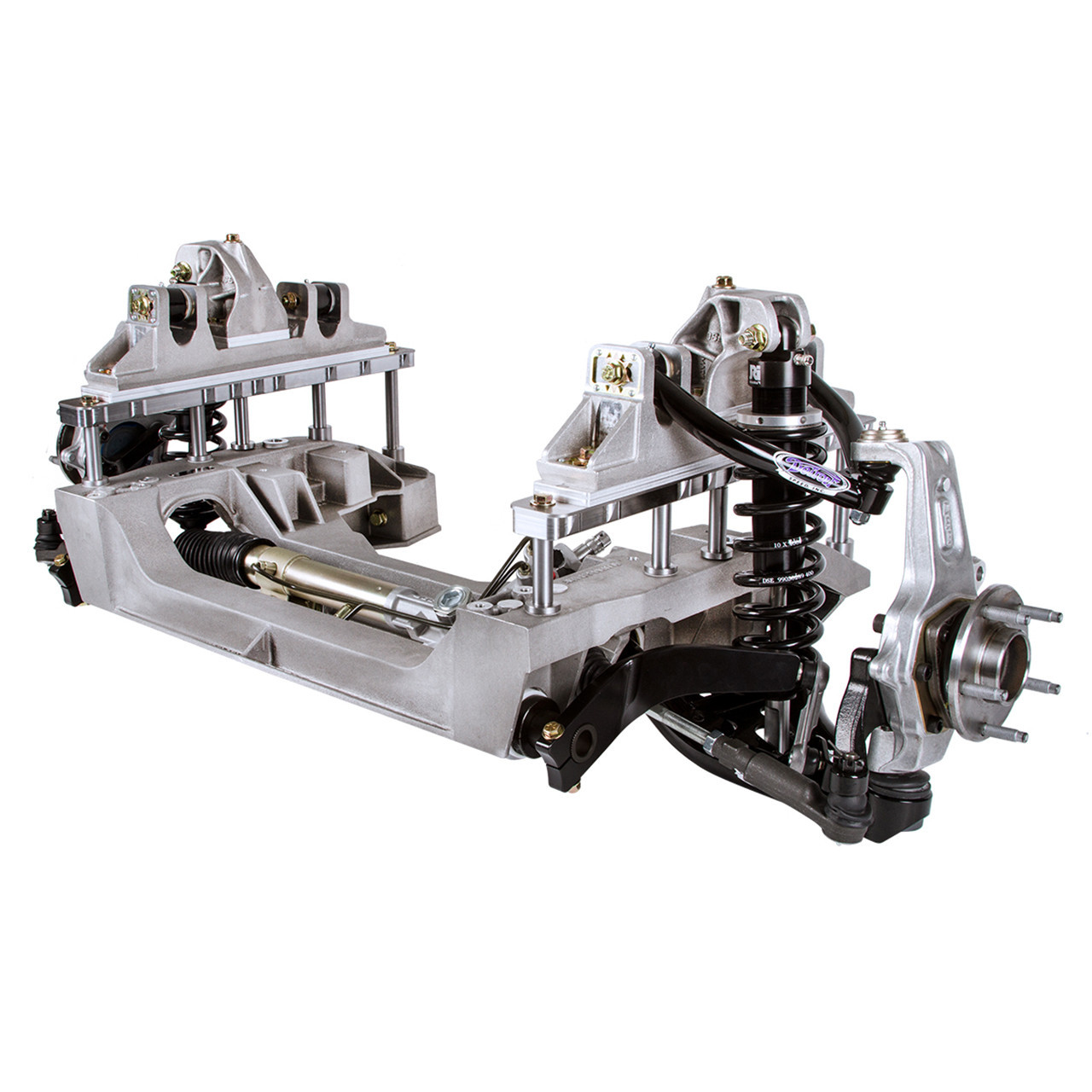

DSE Aluma-Frame Front Suspension System - Double Adjustable Remote Shocks (032050-RDS) - 1964-1970 Ford Mustang
Take your classic Mustang's front suspension to a serious performance level with the Detroit Speed Aluma-Frame Front Suspension System 032050-RDS. Designed for 1964-1970 Ford Mustangs, this all-aluminum system combines Detroit Speed's performance suspension geometry with a lightweight cast aluminum cradle, tubular control arms, power rack-and-pinion steering, coilovers, and an integrated splined anti-roll bar. With 6 inches of total suspension travel, the Aluma-Frame is engineered to deliver responsive steering, confident cornering, improved front-end control, and street-friendly ride quality while retaining the Mustang's stock frame rails and inner fenders.
Part number 032050-RDS is the Ford 5 x 4.5-inch bolt-pattern version equipped with Detroit Speed/JRi double-adjustable remote-canister aluminum coilover shocks. This premium shock configuration combines the tuning capability of the double-adjustable shock with a gas-charged remote canister and bladder designed to provide additional high-frequency and low-speed damping control. Billet aluminum remote-canister mounts secure the reservoirs to the vehicle, making this package an excellent choice for builders who want extensive suspension tuning capability for demanding street, autocross, and track use.
Specifications
- Manufacturer: Detroit Speed
- Part Number: 032050-RDS
- Product Type: Aluma-Frame Front Suspension System
- Vehicle Application: 1964-1970 Ford Mustang
- Bolt Pattern: Ford 5 x 4.5 inches
- Shock Type: Double Adjustable with Remote Canister
- Shock Construction: Detroit Speed/JRi Aluminum Coilover
- Shock Valving: Detroit Tuned
- Remote Canister: Gas-Charged Bladder Design
- Remote Canister Mounts: Billet Aluminum
- Remote Canister Mount Hardware: Two 1/4-20 x 1/2-inch Button Head Screws
- Spring Rate: 400 lbs/in
- Spring Free Length: 10 inches
- Total Suspension Travel: 6 inches
- Ride Height: 1 inch +/- 1 inch
- Static Camber: -0.5 degrees +/- 0.2 degrees
- Static Caster: 8 degrees +/- 0.5 degrees
- Static Toe: 0 degrees +/- 0.1 degrees
- Total Bumpsteer at 28-inch Toe Span: 0.070 inch
- Turning Angle: 27 degrees
- Ackerman Angle at 15-Degree Turning Angle: 0.875 degree
- Steering: Detroit Tuned Power Rack and Pinion
- Control Arms: Tubular Upper and Lower
- Alignment Adjustment: Speed-LIGN Caster/Camber Adjusters
- Anti-Roll Bar: Integrated Splined Design
Features
- All-aluminum front suspension system engineered for 1964-1970 Ford Mustangs
- Unique cast aluminum cradle and mounting components provide a high strength-to-weight ratio and precise fitment
- Detroit Speed suspension geometry is engineered for improved handling, steering response, and ride performance
- Provides 6 inches of total suspension travel
- Detroit Speed/JRi double-adjustable aluminum coilover shocks provide extensive suspension tuning capability
- Remote canister incorporates a gas-charged bladder for high-frequency and low-speed damping control
- Billet aluminum mounts secure the remote shock canisters to the vehicle
- 400 lbs/in coilover springs with a 10-inch free length
- Tubular upper and lower control arms
- Detroit Tuned power rack-and-pinion steering provides precise steering response
- Speed-LIGN caster/camber adjusters provide fast, precise alignment changes without additional shims
- Torrington bearings support smooth coilover spring adjustment
- Integrated splined anti-roll bar helps control body roll during aggressive cornering
- Composite anti-roll bar bushings
- Forged Detroit Speed spindles
- Aluminum uprights and hub packs use a Ford 5 x 4.5-inch bolt pattern
- Can accommodate up to P265/35R18 tires on 9-inch wheels on early models
- Can accommodate up to P295/35R18 tires on 10.5-inch wheels on later models
- Retains the stock Mustang frame rails and inner fenders
- Requires only a limited amount of fabrication for installation
- Engine mount kits are available for Ford small block Windsor, Ford FE big block, Ford 4.6-liter and 5.4-liter modular, Coyote 5.0-liter including Boss 302, and GM LS engines
- Includes spanner tool for coilover adjustment
- Engineered and developed for high-performance street and track use
- Made in the USA
Fitment Notes
- Anti-roll bar arms have a satin black finish
- Upper and lower control arms have a gloss black finish
- Requires at least 17-inch wheels
- Wheels must provide a minimum inside wheel diameter of 16.250 inches
- The Aluma-Frame must be modified for alternator clearance when used with a Coyote engine
- Detroit Speed alternator relocation bracket 060436 is required along with Aluma-Frame modification for the Coyote engine application
- For competition applications, the Detroit Speed rack-and-pinion fluid transfer conversion kit can replace the rack hardlines using -4 AN steel fittings
- The fluid transfer conversion kit uses PTFE-lined high-pressure hoses with pre-crimped stainless steel fittings
Fitment
- 1964 Ford Mustang
- 1965 Ford Mustang
- 1966 Ford Mustang
- 1967 Ford Mustang
- 1968 Ford Mustang
- 1969 Ford Mustang
- 1970 Ford Mustang
FAQs
What shocks are included with DSE 032050-RDS?
Part number 032050-RDS includes Detroit Speed/JRi double-adjustable aluminum coilover shocks with remote canisters. This configuration provides extensive suspension tuning capability while incorporating a gas-charged bladder for additional high-frequency and low-speed damping control.
What is the advantage of the remote-canister shock configuration?
The remote-canister design adds a gas-charged bladder to the double-adjustable shock package, giving performance-focused builders additional damping control for demanding street and track applications.
Are mounts for the remote shock canisters included?
Yes. Detroit Speed provides billet aluminum remote-canister mounts designed to secure the shock reservoirs to the vehicle.
What wheel bolt pattern does 032050-RDS use?
This version uses aluminum uprights and hub packs with a Ford 5 x 4.5-inch bolt pattern.
Does the Aluma-Frame retain the Mustang's stock frame rails and inner fenders?
Yes. The system retains the stock frame rails and inner fenders and requires only a limited amount of fabrication for installation.
Can DSE 032050-RDS be used with a Coyote engine?
Yes. Engine mount solutions are available for Coyote 5.0-liter applications, but the Aluma-Frame requires modification for alternator clearance. Detroit Speed alternator relocation bracket 060436 is also required.
What size wheels are required?
Detroit Speed requires at least 17-inch wheels with a minimum inside wheel diameter of 16.250 inches.
