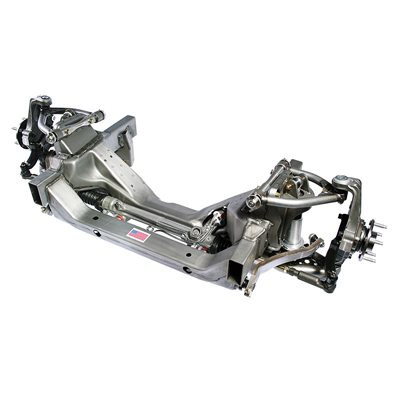

DSE X-Gen 595 Front Suspension Module - Powdercoated Components - Base Shocks (032048DS)
Bring proven Detroit Speed suspension technology to a custom chassis with the X-Gen 595 Front Suspension Module 032048DS. Built around a 59.5-inch track width, this complete front suspension module gives builders a performance-engineered foundation that can be integrated into a wide range of custom vehicle applications through its 2-inch x 4-inch frame rail sections. The X-Gen system uses the same suspension technology found in Detroit Speed bolt-in front frames, combining responsive steering, controlled suspension movement, structural rigidity, and road-and-track capability in one comprehensive package.
This 032048DS configuration features powdercoated components and Detroit Speed/JRi non-adjustable aluminum-body coilover shocks with Detroit Tuned valving. These base shocks provide the dynamic response of Detroit Speed's performance-oriented shock platform while maintaining excellent ride quality for street use without requiring external damping adjustments. OEM-quality stamped crossmembers, tubular upper and lower control arms, Torrington bearings, Detroit Tuned power rack-and-pinion steering, caster tuner bushings, and an integrated splined sway bar complete a front suspension system designed for builders who want proven geometry and carefully engineered components rather than piecing together a custom suspension from unrelated parts.
Specifications
- Manufacturer: Detroit Speed
- Part Number: 032048DS
- Product Type: X-Gen Front Suspension Module
- Series: X-Gen 595
- Application: Universal / Custom Vehicle Integration
- Component Finish: Powdercoated
- Shock Type: Non-Adjustable Base Shocks
- Shock Construction: Aluminum-Body Coilover
- Shock Valving: Detroit Tuned
- Track Width: 59.5 inches
- Bolt Pattern: 5 x 4.5 inches
- Maximum Wheel Backspacing: 6.125 inches
- Total Suspension Travel: 6 inches
- Frame Rail Dimensions: 2 inches x 4 inches x 0.120-inch wall
- Frame Rail Length: 25.25 inches
- Outer-to-Outer Frame Width: 34.25 inches
- Distance from Rear of Frame Rail to Suspension Axis: 13.188 inches
- Nominal Ride Height: 1.9 inches
- Crossmembers: OEM-Quality Stamped Construction
- Control Arms: Tubular Upper and Lower Control Arms
- Steering: Detroit Tuned Power Rack and Pinion
- Caster/Camber Adjustment: Caster Tuner Bushings
- Sway Bar: Integrated Splined Sway Bar
- Coilover Springs Included: No
- Shipping: Freight Required
Features
- Universal X-Gen 595 front suspension module brings Detroit Speed suspension technology to custom vehicle applications
- 59.5-inch track width provides a wider suspension platform for custom chassis builds
- 5 x 4.5-inch wheel bolt pattern
- 2-inch x 4-inch x 0.120-inch wall frame rail sections are designed for integration into a custom chassis
- Detroit Speed exclusive suspension geometry is engineered for superior ride and handling
- Uses the same suspension technology found in Detroit Speed application-specific bolt-in front frames
- OEM-quality stamped crossmembers provide improved structural rigidity
- Tubular upper and lower control arms provide a performance-focused suspension foundation
- Detroit Speed/JRi non-adjustable aluminum-body coilover shocks feature Detroit Tuned valving
- Base shocks provide performance-oriented damping without requiring external shock adjustments
- Torrington bearings are incorporated into the suspension system
- Detroit Tuned power rack-and-pinion steering provides precise and responsive steering control
- Caster tuner bushings allow independent caster and camber adjustment
- Integrated splined sway bar helps control body roll during cornering
- Includes a spanner tool for coilover adjustment
- Provides 6 inches of total suspension travel
- Maximum wheel backspacing of 6.125 inches
- Powdercoated components provide a finished appearance and added surface protection
- Designed and engineered for high-performance street and track applications
Fitment Notes
- Universal X-Gen front suspension module with no specific year, make, or model fitment
- Designed for integration into custom vehicle applications through its 2-inch x 4-inch frame rail sections
- Part number 032048DS features a 59.5-inch track width
- Uses a 5 x 4.5-inch wheel bolt pattern
- Maximum wheel backspacing is 6.125 inches
- Coilover springs are not included
- Spring rates and sizes must be selected according to the specific vehicle and application
- Proper chassis fabrication and suspension installation are required to integrate the module into the vehicle
- For competition applications, the Detroit Speed rack-and-pinion fluid transfer conversion kit can replace the rack hardlines using -4 AN steel fittings
- The fluid transfer conversion kit uses PTFE-lined hoses designed for the high-pressure demands of the steering system with pre-crimped stainless steel fittings
- X-Gen series frame must ship via freight
FAQs
What is the Detroit Speed X-Gen 595 032048DS designed for?
The X-Gen 595 is a universal front suspension module designed to integrate Detroit Speed suspension and steering technology into custom vehicle builds. It does not have a specific production year, make, or model fitment.
What is the track width of DSE 032048DS?
Part number 032048DS features a 59.5-inch hub-to-hub track width.
What shocks are included with DSE 032048DS?
Part number 032048DS includes Detroit Speed/JRi non-adjustable aluminum-body coilover shocks with Detroit Tuned valving. They provide performance-oriented damping and excellent street ride quality without external shock adjustments.
What wheel bolt pattern does 032048DS use?
Part number 032048DS uses a 5 x 4.5-inch wheel bolt pattern.
Are coilover springs included with 032048DS?
No. Coilover springs are not included because the required spring rates and sizes vary depending on the vehicle and application.
Can caster and camber be adjusted independently?
Yes. Detroit Speed caster tuner bushings allow independent caster and camber adjustment, giving builders additional flexibility when aligning and setting up the suspension.
What steering system is included with 032048DS?
The X-Gen 595 incorporates Detroit Tuned power rack-and-pinion steering as part of the complete front suspension module.
Is DSE 032048DS a direct bolt-in suspension system?
No. The X-Gen 595 is a universal suspension module intended for custom chassis integration through its 2-inch x 4-inch frame rail sections. Proper fabrication and chassis integration are required.
What is the difference between DSE 032048DS and 032048-DDS?
Both use powdercoated components, a 59.5-inch track width, and a 5 x 4.5-inch bolt pattern. Part number 032048DS uses non-adjustable base shocks, while 032048-DDS uses double-adjustable shocks for additional suspension tuning capability.
