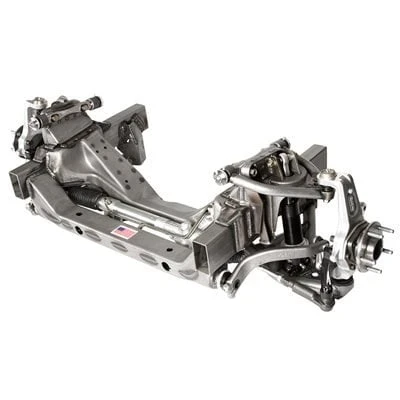

DSE X-Gen 535 Front Suspension Module - Powdercoated Components - Double Adjustable Shocks (032047-DDS)
Bring proven Detroit Speed suspension technology to a custom chassis with the X-Gen 535 Front Suspension Module 032047-DDS. Designed for builders who want a complete high-performance front suspension system without being locked into a vehicle-specific chassis, the X-Gen 535 combines a compact 53.5-inch track width with 2-inch x 4-inch frame rail sections ready to be integrated into a custom application. It uses the same core suspension technology found in Detroit Speed bolt-in front frames, creating a purpose-engineered foundation for responsive steering, precise suspension control, improved handling, and serious road and track performance.
The 032047-DDS configuration features powdercoated components and Detroit Speed/JRi double-adjustable aluminum-body coilover shocks with Detroit Tuned valving. Two independent shock adjustments and a wide adjustment range give builders the ability to fine-tune suspension response around the vehicle, driver, and intended use while retaining excellent street ride quality. The module also incorporates OEM-quality stamped crossmembers, tubular upper and lower control arms, Torrington bearings, Detroit Tuned power rack-and-pinion steering, caster tuner bushings for independent caster and camber adjustment, and an integrated splined sway bar. Coilover springs are not included because the required spring rate and size vary depending on the vehicle and application.
Specifications
- Manufacturer: Detroit Speed
- Part Number: 032047-DDS
- Product Type: X-Gen Front Suspension Module
- Series: X-Gen 535
- Application: Universal / Custom Vehicle Integration
- Component Finish: Powdercoated
- Shock Type: Double Adjustable
- Shock Construction: Aluminum-Body Coilover
- Shock Valving: Detroit Tuned
- Shock Adjustments: Two Independent Adjustments
- Track Width: 53.5 inches
- Bolt Pattern: 5 x 4.5 inches
- Total Suspension Travel: 6 inches
- Frame Rail Dimensions: 2 inches x 4 inches x 0.120-inch wall
- Frame Rail Length: 24.75 inches
- Outer-to-Outer Frame Width: 30.5 inches
- Distance from Rear of Frame Rail to Suspension Axis: 12.25 inches
- Nominal Ride Height: 1.5 inches
- Maximum Wheel Backspacing: 5 inches
- Crossmembers: OEM-Quality Stamped Construction
- Control Arms: Tubular Upper and Lower Control Arms
- Steering: Detroit Tuned Power Rack and Pinion
- Caster/Camber Adjustment: Caster Tuner Bushings
- Sway Bar: Integrated Splined Sway Bar
- Coilover Springs Included: No
- Shipping: Freight Required
Features
- Universal X-Gen 535 front suspension module brings Detroit Speed suspension technology to custom vehicle applications
- 53.5-inch track width provides a compact foundation for chassis and wheel packaging
- 5 x 4.5-inch wheel bolt pattern
- 2-inch x 4-inch x 0.120-inch wall frame rail sections are designed for integration into a custom chassis
- Detroit Speed exclusive suspension geometry is engineered for superior ride and handling
- Uses suspension technology developed for Detroit Speed application-specific bolt-in front frames
- OEM-quality stamped crossmembers provide improved structural rigidity
- Tubular upper and lower control arms provide a performance-oriented suspension foundation
- Detroit Speed/JRi double-adjustable aluminum-body coilover shocks feature Detroit Tuned valving
- Two independent shock adjustments provide an extensive range of suspension tuning
- Torrington bearings are incorporated into the suspension system
- Detroit Tuned power rack-and-pinion steering provides precise and responsive steering control
- Caster tuner bushings allow independent caster and camber adjustments
- Integrated splined sway bar helps control body roll during cornering
- Includes a spanner tool for coilover adjustment
- Provides 6 inches of total suspension travel
- Maximum wheel backspacing of 5 inches
- Powdercoated components provide a finished appearance and added surface protection
- Designed and engineered for high-performance road and track applications
Fitment Notes
- This is a universal X-Gen front suspension module and does not have a specific year, make, or model fitment
- Designed for integration into a custom vehicle application through its 2-inch x 4-inch frame rail sections
- This 032047-DDS configuration uses a 5 x 4.5-inch wheel bolt pattern
- Coilover springs are not included
- Coilover spring rates and sizes must be selected according to the specific vehicle and application
- Maximum wheel backspacing is 5 inches
- Proper chassis fabrication and suspension installation are required to integrate the module into the vehicle
- For competition applications, the optional Detroit Speed rack-and-pinion fluid transfer conversion kit replaces the rack hardlines using -4 AN steel fittings
- The optional fluid transfer kit uses PTFE-lined hoses designed for the high-pressure demands of the steering system with pre-crimped stainless steel fittings
- X-Gen series frame must ship via freight
FAQs
What is the Detroit Speed X-Gen 535 032047-DDS designed for?
The X-Gen 535 is a universal front suspension module designed to integrate Detroit Speed suspension and steering technology into custom vehicle applications. It does not have a specific year, make, or model fitment.
What is the track width of DSE 032047-DDS?
Detroit Speed specifies a 53.5-inch track width for part number 032047-DDS.
What shocks are included with DSE 032047-DDS?
Part number 032047-DDS includes Detroit Speed/JRi double-adjustable aluminum-body coilover shocks with Detroit Tuned valving. The two independent adjustments provide a broad tuning range for tailoring suspension response to the vehicle, driver, and intended use.
What wheel bolt pattern does 032047-DDS use?
Detroit Speed specifies a 5 x 4.5-inch wheel bolt pattern for part number 032047-DDS.
Are coilover springs included with 032047-DDS?
No. Coilover springs are not included because the required spring rate and size vary depending on the specific vehicle and application.
Can caster and camber be adjusted independently?
Yes. Detroit Speed caster tuner bushings allow independent caster and camber adjustments, providing additional flexibility when aligning and setting up the completed suspension.
What steering system is included with DSE 032047-DDS?
The X-Gen 535 incorporates Detroit Tuned power rack-and-pinion steering as part of the complete front suspension module.
Is DSE 032047-DDS a direct bolt-in suspension system?
No. The X-Gen 535 is a universal front suspension module designed to be integrated into a custom chassis through its 2-inch x 4-inch frame rail sections rather than bolted directly into one specific production vehicle.
What is the difference between DSE 032047-DDS and 032043-DDS?
Both are powdercoated X-Gen 535 modules with a 53.5-inch track width and double-adjustable shocks, but they use different wheel bolt patterns. Part number 032047-DDS uses a 5 x 4.5-inch bolt pattern, while 032043-DDS uses a 5 x 4.75-inch bolt pattern.
Why Buy Detroit Speed from Beefcake Racing?
Beefcake Racing is your source for Detroit Speed suspension, steering, and chassis components for serious street, pro-touring, restomod, and track builds. Universal suspension modules require careful planning around track width, wheel bolt pattern, wheel backspacing, spring selection, chassis dimensions, and intended vehicle use. Our team can help you select the Detroit Speed components needed to complete your custom suspension project. Questions about DSE 032047-DDS or your combination? Email sales@beefcakeracing.com or call 1-855-827-7223.
