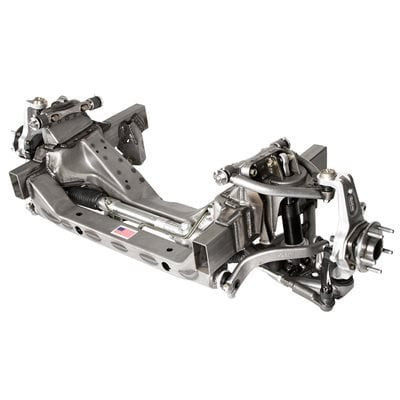

DSE X-Gen 535 Front Suspension Module - Powdercoated Components - Double Adjustable Shocks (032043-DDS)
Bring Detroit Speed suspension technology to a custom chassis project with the X-Gen 535 Front Suspension Module 032043-DDS. Designed for builders who want a complete performance-oriented front suspension system without being tied to a specific factory chassis, the X-Gen 535 provides a 53.5-inch track width and 2-inch x 4-inch frame rail sections ready to be integrated into a custom application. The suspension architecture is based on the same technology used in Detroit Speed bolt-in front frames, giving custom builds a proven combination of modern suspension geometry, precise steering, structural rigidity, and serious road and track capability.
This 032043-DDS configuration features powdercoated components and Detroit Speed/JRi double-adjustable aluminum-body coilover shocks with Detroit Tuned valving. Two independent shock adjustments provide an extensive tuning range, allowing the suspension response to be dialed in for the driver, vehicle setup, and intended use while retaining excellent street ride quality. The module also incorporates OEM-quality stamped crossmembers, tubular upper and lower control arms, Torrington bearings, Detroit Tuned power rack-and-pinion steering, caster tuner bushings for independent caster and camber adjustment, and an integrated splined sway bar. Coilover springs are not included because spring rate and size must be selected for the specific vehicle application.
Specifications
- Manufacturer: Detroit Speed
- Part Number: 032043-DDS
- Product Type: X-Gen Subframe / Front Suspension Module
- Series: X-Gen 535
- Application: Universal / Custom Vehicle Integration
- Component Finish: Powdercoated
- Shock Type: Double Adjustable
- Shock Construction: Aluminum-Body Coilover
- Shock Valving: Detroit Tuned
- Shock Adjustments: Two Independent Adjustments
- Track Width: 53.5 inches
- Bolt Pattern: 5 x 4.75 inches
- Total Suspension Travel: 6 inches
- Frame Rail Dimensions: 2 inches x 4 inches x 0.120-inch wall
- Frame Rail Length: 24.75 inches
- Outer-to-Outer Frame Width: 30.5 inches
- Distance from Rear of Frame Rail to Suspension Axis: 12.25 inches
- Nominal Ride Height: 1.5 inches
- Maximum Wheel Backspacing: 5 inches
- Crossmembers: OEM-Quality Stamped Construction
- Control Arms: Tubular Upper and Lower Control Arms
- Steering: Detroit Tuned Power Rack and Pinion
- Caster/Camber Adjustment: Caster Tuner Bushings
- Sway Bar: Integrated Splined Sway Bar
- Coilover Springs Included: No
- Shipping: Freight Required
Features
- Universal X-Gen 535 front suspension module allows Detroit Speed suspension technology to be incorporated into custom vehicle builds
- 53.5-inch hub-to-hub track width provides a defined foundation for chassis and wheel packaging
- 2-inch x 4-inch x 0.120-inch wall frame rail sections are designed for integration into the vehicle chassis
- Detroit Speed exclusive suspension geometry is engineered for superior ride and handling
- Suspension architecture is based on the same technology used in Detroit Speed application-specific bolt-in front frames
- OEM-quality stamped crossmembers provide improved structural rigidity
- Tubular upper and lower control arms provide a performance-oriented suspension foundation
- Detroit Speed/JRi aluminum-body double-adjustable coilover shocks feature Detroit Tuned valving
- Two independent shock adjustments provide an extensive range of suspension tuning
- Torrington bearings are incorporated into the suspension package
- Detroit Tuned power rack-and-pinion steering provides precise, responsive steering control
- Caster tuner bushings allow independent caster and camber adjustment
- Integrated splined sway bar helps manage body roll during cornering
- Includes a spanner tool for coilover adjustment
- Provides 6 inches of total suspension travel
- 5 x 4.75-inch wheel bolt pattern
- Maximum wheel backspacing of 5 inches
- Powdercoated components provide a finished appearance and added surface protection
- Engineered and developed for high-performance street and track applications
Fitment Notes
- This is a universal X-Gen front suspension module and does not have a specific year, make, or model fitment
- Designed for integration into a custom vehicle application through its 2-inch x 4-inch frame rail sections
- Coilover springs are not included
- Coilover spring rate and size must be selected according to the specific vehicle and application
- Maximum wheel backspacing is 5 inches
- Proper chassis fabrication and suspension installation are required to integrate the module into the vehicle
- For competition applications, the optional Detroit Speed rack-and-pinion fluid transfer conversion kit replaces the rack hardlines using -4 AN steel fittings
- The optional fluid transfer kit uses PTFE-lined hoses designed for the high-pressure demands of the steering system with pre-crimped stainless steel fittings
- X-Gen series frame must ship via freight
FAQs
What is the Detroit Speed X-Gen 535 032043-DDS designed for?
The X-Gen 535 is a universal front suspension module designed to integrate Detroit Speed suspension and steering technology into custom vehicle applications. It is not restricted to a specific year, make, or model.
What is the track width of DSE 032043-DDS?
Detroit Speed specifies a 53.5-inch hub-to-hub track width for the X-Gen 535.
What shocks are included with 032043-DDS?
This configuration includes Detroit Speed/JRi aluminum-body double-adjustable coilover shocks with Detroit Tuned valving. The two independent adjustments provide an extensive tuning range for matching suspension behavior to the vehicle and intended use.
Are coilover springs included with DSE 032043-DDS?
No. Coilover springs are not included because the required spring rate and spring size vary according to the vehicle and application.
Can caster and camber be adjusted independently?
Yes. Detroit Speed incorporates caster tuner bushings that allow independent caster and camber adjustment for alignment and suspension setup.
What steering system is included with 032043-DDS?
The X-Gen 535 incorporates Detroit Tuned power rack-and-pinion steering as part of the integrated suspension system.
What wheel bolt pattern does DSE 032043-DDS use?
Part number 032043-DDS uses a 5 x 4.75-inch wheel bolt pattern.
Is DSE 032043-DDS a direct bolt-in suspension system?
No. The X-Gen 535 is a universal suspension module designed to be integrated into a custom chassis through its 2-inch x 4-inch frame rail sections. It is not an application-specific bolt-in front frame.
Why Buy Detroit Speed from Beefcake Racing?
Beefcake Racing is your source for Detroit Speed suspension, steering, and chassis components for serious street, pro-touring, restomod, and track builds. Universal suspension modules require careful planning around track width, wheel backspacing, spring selection, chassis dimensions, and the intended use of the vehicle. Our team can help you select the Detroit Speed components needed to complete your custom suspension project. Questions about DSE 032043-DDS or your combination? Email sales@beefcakeracing.com or call 1-855-827-7223.
