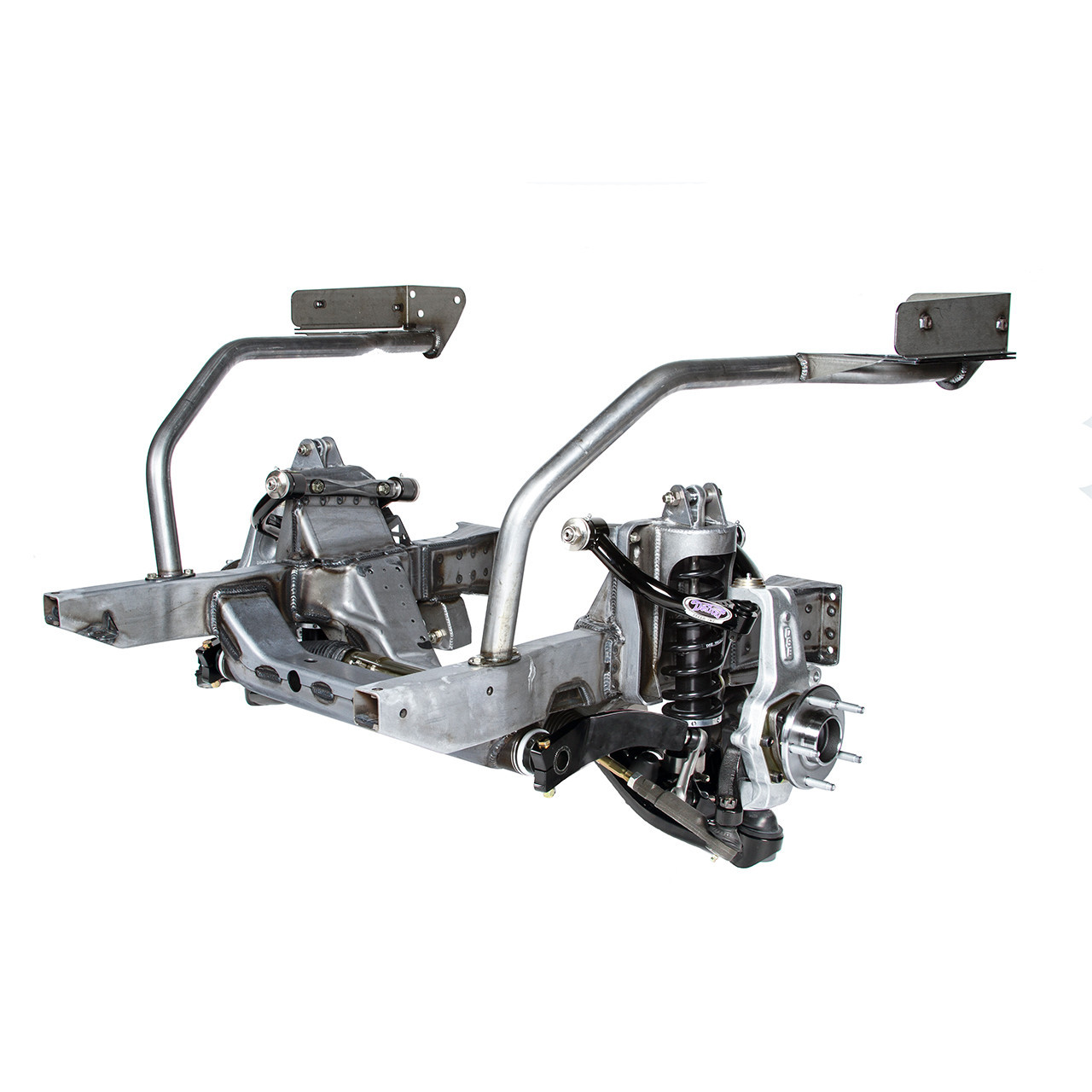

DSE Bare Front Frame - Non-Adjustable Shocks - Powder Coated Control Arms (032039DS) - 1962-1965 Chevrolet Chevy II
Bring modern suspension geometry, steering response, and road manners to your 1962-1965 Chevrolet Chevy II with the Detroit Speed Bare Front Frame 032039DS. Engineered as a bolt-in replacement for the original stock frame, this complete performance system combines a bare frame with black powdercoated control arms, Detroit Tuned non-adjustable coilover shocks, and OEM-quality stamped crossmembers for increased structural rigidity. The result is a purpose-built foundation designed to dramatically update the way a classic Chevy II handles while retaining the versatility needed for a serious street, pro-touring, or track-oriented build.
The 032039DS package uses aluminum-body non-adjustable coilover shocks with Detroit Tuned valving, paired with 400 lbs/in springs and a 10-inch spring free length. Detroit Speed combines this suspension with TIG-welded tubular upper and lower control arms, power rack-and-pinion steering, an integrated splined sway bar with composite bushings, caster tuner bushings, and forged aluminum Detroit Speed spindles. The frame is engineered to accommodate Small Block Chevrolet and LS-series engines, while the integral bay bars provide rigid hood-hinge mounting and can be concealed with the optional Detroit Speed Chevy II Inner Fender Kit.
Specifications
- Manufacturer: Detroit Speed
- Part Number: 032039DS
- Product Type: Chevy II Front Frame
- Vehicle Application: 1962-1965 Chevrolet Chevy II
- Frame Finish: Bare
- Control Arm Finish: Black Powdercoated
- Shock Type: Non-Adjustable
- Shock Construction: Aluminum-Body Coilover
- Shock Valving: Detroit Tuned
- Spring Rate: 400 lbs/in
- Spring Free Length: 10 inches
- Frame Rails: Mandrel-Bent
- Crossmembers: OEM-Quality Stamped Construction
- Control Arms: TIG-Welded Tubular Upper and Lower Control Arms
- Steering: Detroit Tuned Power Rack and Pinion
- Sway Bar: Integrated Splined Sway Bar with Composite Bushings
- Control Arm Cross Shafts: Caster Tuner Bushings
- Spindles: Forged Aluminum Detroit Speed Spindles
- Engine Compatibility: Small Block Chevrolet and LS-Series Engines
- Minimum Wheel Diameter: 17 inches
- Minimum Inside Wheel Diameter: 16.250 inches
- Installation Type: Bolt-In Replacement for Original Stock Frame
- Shipping: Freight Required
Features
- Bolt-in front frame engineered specifically for 1962-1965 Chevrolet Chevy II applications
- Detroit Speed optimized suspension and steering geometry improves handling, steering response, and ride quality
- OEM-quality stamped crossmembers provide increased structural rigidity
- Mandrel-bent frame rails form a strong foundation for the integrated suspension system
- Black powdercoated TIG-welded tubular upper and lower control arms
- Aluminum-body non-adjustable coilover shocks feature Detroit Tuned valving
- 400 lbs/in coilover springs with a 10-inch free length
- Detroit Tuned power rack-and-pinion steering provides precise steering response
- Integrated splined sway bar with composite bushings helps control body roll
- Control arm cross shafts incorporate caster tuner bushings
- Forged aluminum Detroit Speed spindles complete the performance-oriented front suspension package
- Designed to accommodate Small Block Chevrolet and LS-series engines
- Integral bay bars provide rigid hood-hinge mounting
- Bay bars can be concealed with the optional Detroit Speed Chevy II Inner Fender Kit for a cleaner under-hood appearance
- Bare frame allows the builder to select the final frame finish to complement the vehicle
- Engineered and developed for both road and track use
Fitment Notes
- Requires wheels at least 17 inches in diameter
- Requires a minimum inside wheel diameter of 16.250 inches
- Designed to accommodate Small Block Chevrolet and LS-series engine applications
- The optional Detroit Speed Chevy II Inner Fender Kit can be used to conceal the front frame bay bars
- For competition applications, the optional Detroit Speed rack-and-pinion fluid transfer conversion kit replaces the rack hardlines using -4 AN steel fittings
- The optional fluid transfer kit uses PTFE-lined hoses designed for high-pressure steering-system demands with pre-crimped stainless steel fittings
- Frame must ship via freight
Fitment
- 1962 Chevrolet Chevy II
- 1963 Chevrolet Chevy II
- 1964 Chevrolet Chevy II
- 1965 Chevrolet Chevy II
FAQs
What vehicles does DSE 032039DS fit?
Detroit Speed 032039DS is designed for 1962, 1963, 1964, and 1965 Chevrolet Chevy II models.
What is the finish on DSE 032039DS?
This configuration uses a bare front frame with black powdercoated control arms. The bare frame allows the builder to choose the final frame finish while the control arms arrive already powdercoated.
What shocks are included with DSE 032039DS?
The package uses aluminum-body non-adjustable coilover shocks with Detroit Tuned valving. They provide Detroit Speed's application-specific damping without requiring external shock adjustments.
What springs are used with 032039DS?
Detroit Speed specifies 400 lbs/in coilover springs with a 10-inch spring free length for this configuration.
What engines are compatible with the DSE Chevy II Front Frame?
Detroit Speed designed the frame to accommodate Small Block Chevrolet engines as well as LS-series applications, including LS1, LS2, LS3, and LS7 engines.
What wheel size is required with DSE 032039DS?
Detroit Speed specifies wheels at least 17 inches in diameter with a minimum inside wheel diameter of 16.250 inches.
Can the front frame bay bars be hidden?
Yes. The bay bars are designed to be concealed when used with the optional Detroit Speed Chevy II Inner Fender Kit, providing a cleaner and more finished engine compartment.
How is 032039DS different from 032039-SDS and 032039-DDS?
All three are bare Detroit Speed Front Frame configurations for 1962-1965 Chevy II models with powdercoated control arms. Part number 032039DS uses non-adjustable shocks, 032039-SDS uses single-adjustable shocks, and 032039-DDS uses double-adjustable shocks for additional suspension tuning capability.
