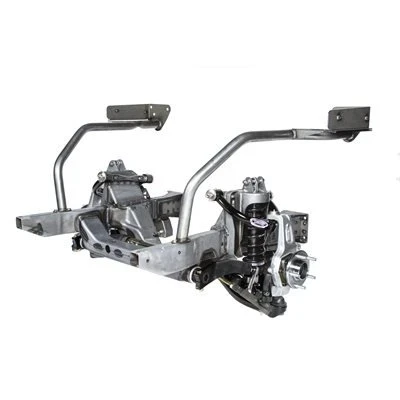

DSE Bare Front Frame - Double Adjustable Shocks - Powder Coated Control Arms (032039-DDS) - 1962-1965 Chevrolet Chevy II
Transform the front suspension of your 1962-1965 Chevrolet Chevy II with the Detroit Speed Bare Front Frame 032039-DDS. Engineered as a bolt-in replacement for the original stock frame, this complete performance system combines Detroit Speed optimized suspension and steering geometry with OEM-quality stamped crossmembers and mandrel-bent frame rails to improve handling, steering response, ride quality, and structural rigidity. This configuration pairs the bare frame with black powdercoated control arms and double-adjustable coilover shocks, making it an excellent foundation for a serious street, pro-touring, or track-focused Chevy II.
The 032039-DDS package uses aluminum-body coilover shocks with Detroit Tuned valving and two independent adjustments, giving drivers a broad range of suspension tuning while maintaining street-friendly ride quality. The system uses 400 lbs/in coilover springs with a 10-inch free length and incorporates power rack-and-pinion steering, an integrated splined sway bar, caster tuner bushings, and forged aluminum Detroit Speed spindles. The frame accommodates Small Block Chevrolet and LS-series engines, while the integral bay bars provide rigid hood-hinge mounting and can be concealed with the optional Detroit Speed Chevy II Inner Fender Kit.
Specifications
- Manufacturer: Detroit Speed
- Part Number: 032039-DDS
- Product Type: Chevy II Front Frame
- Vehicle Application: 1962-1965 Chevrolet Chevy II
- Frame Finish: Bare
- Control Arm Finish: Black Powdercoated
- Shock Type: Double Adjustable
- Shock Construction: Aluminum Body Coilover
- Shock Valving: Detroit Tuned
- Spring Rate: 400 lbs/in
- Spring Free Length: 10 inches
- Frame Rails: Mandrel Bent
- Crossmembers: OEM-Quality Stamped Construction
- Control Arms: TIG-Welded Tubular Upper and Lower Control Arms
- Steering: Power Rack and Pinion
- Sway Bar: Integrated Splined Sway Bar with Composite Bushings
- Control Arm Cross Shafts: Caster Tuner Bushings
- Spindles: Forged Aluminum Detroit Speed Spindles
- Engine Compatibility: Small Block Chevrolet and LS-Series Engines
- Minimum Wheel Diameter: 17 inches
- Minimum Inside Wheel Diameter: 16.250 inches
- Installation Type: Bolt-In Replacement for Original Stock Frame
- Shipping: Freight Required
Features
- Bolt-in front frame engineered for 1962-1965 Chevrolet Chevy II applications
- Detroit Speed optimized suspension and steering geometry improves handling and ride quality
- OEM-quality stamped crossmembers provide increased structural rigidity
- Mandrel-bent frame rails provide the foundation for the integrated front suspension system
- Black powdercoated TIG-welded tubular upper and lower control arms
- Double-adjustable aluminum-body coilover shocks with Detroit Tuned valving
- Two independent shock adjustments provide an extensive range of suspension tuning
- 400 lbs/in coilover springs with a 10-inch free length
- Detroit Speed power rack-and-pinion steering provides precise steering response
- Integrated splined sway bar with composite bushings helps control body roll
- Control arm cross shafts incorporate caster tuner bushings
- Forged aluminum Detroit Speed spindles complete the performance suspension package
- Accommodates Small Block Chevrolet and LS-series engine applications
- Integral bay bars provide rigid hood-hinge mounting
- Bay bars can be concealed when used with the optional Detroit Speed Chevy II Inner Fender Kit
- Engineered and developed for both road and track use
- Bare frame allows the builder to select a final frame finish appropriate for the vehicle
Fitment Notes
- Requires wheels at least 17 inches in diameter
- Requires a minimum inside wheel diameter of 16.250 inches
- Designed to accommodate Small Block Chevrolet and LS-series engines
- The optional Detroit Speed Chevy II Inner Fender Kit can be used to conceal the frame bay bars
- For competition applications, the optional Detroit Speed rack-and-pinion fluid transfer conversion kit replaces the rack hardlines using -4 AN steel fittings
- The optional fluid transfer kit uses PTFE-lined hoses designed for high-pressure steering-system demands with pre-crimped stainless steel fittings
- Frame must ship via freight
Fitment
- 1962 Chevrolet Chevy II
- 1963 Chevrolet Chevy II
- 1964 Chevrolet Chevy II
- 1965 Chevrolet Chevy II
FAQs
What vehicles does DSE 032039-DDS fit?
Detroit Speed 032039-DDS is designed for 1962, 1963, 1964, and 1965 Chevrolet Chevy II models.
What is the finish on DSE 032039-DDS?
This configuration features a bare front frame with black powdercoated control arms, allowing the builder to select the final finish for the frame while receiving finished suspension control arms.
What shocks are included with DSE 032039-DDS?
The package uses aluminum-body double-adjustable coilover shocks with Detroit Tuned valving. The two independent adjustments provide a wide tuning range for matching suspension behavior to the vehicle, driver, and intended use.
What springs are used with 032039-DDS?
Detroit Speed specifies a 400 lbs/in spring rate and 10-inch spring free length for this configuration.
What engines are compatible with this Chevy II Front Frame?
Detroit Speed designed the Chevy II Front Frame to accommodate Small Block Chevrolet engines as well as LS-series engines, including LS1, LS2, LS3, and LS7 applications.
What wheel size is required with DSE 032039-DDS?
Detroit Speed specifies a minimum 17-inch wheel diameter and a minimum inside wheel diameter of 16.250 inches.
Can the front frame bay bars be hidden?
Yes. Detroit Speed designed the bay bars to be concealed when the frame is used with the optional Detroit Speed Chevy II Inner Fender Kit, providing a cleaner finished engine compartment.
How is 032039-DDS different from 032039DS and 032039-SDS?
All three are bare Detroit Speed Front Frame configurations for 1962-1965 Chevy II models with powdercoated control arms. Part number 032039DS uses non-adjustable shocks, 032039-SDS uses single-adjustable shocks, and 032039-DDS uses double-adjustable shocks for a greater range of suspension tuning.
