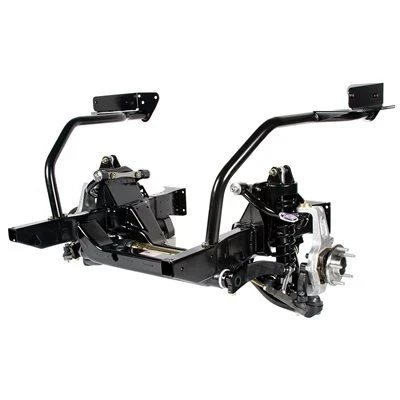

DSE Front Subframe - Powdercoated - Single-Adjustable Shocks (032034-SDS) - 1966-1967 Chevrolet Chevy II
Upgrade your 1966-1967 Chevrolet Chevy II with the Detroit Speed Front Subframe, a complete bolt-in replacement engineered to deliver modern suspension control, precise steering response, and improved ride quality. Part number 032034-SDS combines Detroit Speed optimized suspension and steering geometry with OEM-quality stamped crossmembers for increased structural rigidity. The powdercoated and assembled package brings together TIG-welded tubular control arms, forged aluminum Detroit Speed spindles, power rack-and-pinion steering, an integrated splined sway bar, coilover springs, and single-adjustable shocks to create a serious foundation for street, pro-touring, and track-focused Chevy II builds.
The 032034-SDS package features aluminum-body single-adjustable coilover shocks with Detroit Tuned valving, paired with 400 lbs/in springs and a 10-inch spring free length. Rebound adjustment is built into the shocks and can be changed with the turn of a knob, giving you additional control over suspension response while retaining excellent street ride quality. Small Block Chevy and LS engines are designed as direct bolt-in applications, while the bay bars incorporate rigid integral hood hinge mounting and are concealed when paired with the Detroit Speed Chevy II Inner Fenders package.
Specifications
- Manufacturer: Detroit Speed
- Part Number: 032034-SDS
- Product Type: Chevy II Front Subframe
- Vehicle Application: 1966-1967 Chevrolet Chevy II
- Finish: Powdercoated
- Assembly: Included with powdercoated configuration
- Engine Compatibility: Small Block Chevrolet / LS
- Frame Rails: Mandrel-bent
- Crossmembers: OEM-quality stamped construction
- Shock Type: Single Adjustable
- Shock Construction: Aluminum-body coilover
- Shock Valving: Detroit Tuned
- Shock Adjustment: Rebound
- Spring Rate: 400 lbs/in
- Spring Free Length: 10 inches
- Control Arms: TIG-welded tubular upper and lower
- Spindles: Forged aluminum Detroit Speed spindles
- Steering: Detroit Tuned power rack and pinion
- Sway Bar: Integrated splined sway bar with composite bushings
- Control Arm Cross Shafts: Caster tuner bushings
- Minimum Wheel Diameter: 17 inches
- Minimum Inside Wheel Diameter: 16.250 inches
- Installation Type: Bolt-in replacement for the original stock frame
- Shipping: Freight required
Features
- Bolt-in front subframe engineered specifically for 1966-1967 Chevrolet Chevy II applications
- Detroit Speed optimized suspension and steering geometry improves handling, steering response, and ride quality
- Mandrel-bent frame rails and OEM-quality stamped crossmembers provide a rigid foundation for the front suspension system
- Bay bars incorporate rigid integral hood hinge mounting
- Bay bars are hidden when used with the Detroit Speed Chevy II Inner Fenders package
- TIG-welded tubular upper and lower control arms provide a strong performance-oriented suspension design
- Single-adjustable aluminum-body coilover shocks feature Detroit Tuned valving
- Externally adjustable rebound control allows suspension response to be tuned with the turn of a knob
- 400 lbs/in coilover springs feature a 10-inch free length
- Detroit Tuned power rack-and-pinion steering delivers precise and responsive steering control
- Integrated splined sway bar with composite bushings helps control body roll during cornering
- Control arm cross shafts incorporate caster tuner bushings
- Forged aluminum Detroit Speed spindles complete the performance-focused front suspension package
- Designed to accommodate Small Block Chevrolet and LS engine applications
- Powdercoated configuration includes assembly
- Engineered and developed for both road and track performance
Fitment Notes
- Part number 032034-SDS fits 1966-1967 Chevrolet Chevy II models
- Designed to accommodate Small Block Chevrolet and LS engine applications
- Requires wheels at least 17 inches in diameter
- Requires a minimum inside wheel diameter of 16.250 inches
- Wheel, tire, and brake clearance should be verified for the specific vehicle combination
- For competition applications, the optional Detroit Speed rack-and-pinion fluid transfer conversion kit replaces the rack hardlines using -4 AN steel fittings
- The optional fluid transfer kit uses PTFE-lined hoses designed for the high-pressure demands of the steering system with pre-crimped stainless steel fittings
- Frame must ship via freight
Fitment
- 1966 Chevrolet Chevy II
- 1967 Chevrolet Chevy II
FAQs
What vehicles does DSE 032034-SDS fit?
Detroit Speed 032034-SDS is specifically designed for 1966 and 1967 Chevrolet Chevy II models.
What engines can be used with 032034-SDS?
The Detroit Speed Chevy II Front Subframe is designed to accommodate Small Block Chevrolet and LS-series engine applications.
What adjustment do the shocks on 032034-SDS provide?
The single-adjustable shocks combine Detroit Tuned base valving with externally adjustable rebound control. Rebound can be changed with the turn of a knob, allowing suspension response to be fine-tuned for the vehicle and driver's preferences while retaining excellent street ride quality.
What springs are included with 032034-SDS?
This configuration uses coilover springs with a 400 lbs/in spring rate and a 10-inch free length.
Is DSE 032034-SDS powdercoated and assembled?
Yes. Part number 032034-SDS is the powdercoated configuration, and Detroit Speed specifies that assembly is included when the powdercoat option is purchased.
How is 032034-SDS different from 032034DS?
Both are powdercoated Detroit Speed Front Subframes for 1966-1967 Chevy II applications using 400 lbs/in springs. The 032034-SDS adds externally adjustable rebound control, while 032034DS uses non-adjustable Detroit Tuned shocks.
How is 032034-SDS different from 032034-DDS?
The 032034-SDS uses single-adjustable shocks with rebound adjustment, while 032034-DDS uses double-adjustable shocks with two independent adjustments for a broader range of suspension tuning.
What wheels are required with this front subframe?
Detroit Speed requires wheels at least 17 inches in diameter with a minimum inside wheel diameter of 16.250 inches. Wheel, tire, and brake clearance should always be verified for the specific vehicle combination.
