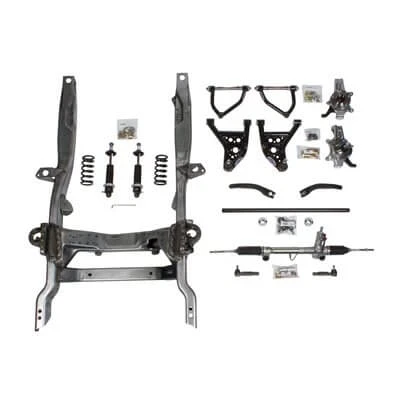

DSE Hydroformed Front Subframe - Bare - Single-Adjustable Shocks (032018-SDS) - 1967-1969 Camaro / Firebird / 1968-1974 Nova - BBC
Give your Big Block-powered classic GM the suspension foundation to put its horsepower to work with the Detroit Speed Hydroformed Front Subframe. DSE 032018-SDS is a bolt-in replacement for the original stock subframe that combines hydroformed steel frame rails, optimized Detroit Speed suspension and steering geometry, stamped structural crossmembers, power rack-and-pinion steering, a splined sway bar, and single-adjustable coilover shocks. Engineered for serious street, pro-touring, and track builds, this system delivers the chassis rigidity, steering precision, grip, and suspension control needed to transform the way a classic F-Body or X-Body drives.
Part number 032018-SDS is the bare subframe configuration for Big Block Chevy applications and uses 650 lbs/in coilover springs. The single-adjustable shocks combine Detroit Tuned base valving with externally adjustable rebound control, allowing suspension response to be fine-tuned with the turn of a knob while maintaining excellent street ride quality. Hydroformed frame rails provide high strength, stiffness, dimensional accuracy, and repeatability, while stamped main and secondary crossmembers reinforce the assembly. The bare subframe also gives builders flexibility when selecting the final chassis finish.
Specifications
- Manufacturer: Detroit Speed
- Part Number: 032018-SDS
- Product Type: Hydroformed Front Subframe
- Vehicle Platform: 1967-1969 GM F-Body / 1968-1974 GM X-Body
- Subframe Finish: Bare
- Engine Application: Big Block Chevy
- Shock Type: Single Adjustable
- Shock Configuration: Aluminum-body coilover
- Shock Valving: Detroit Tuned
- Shock Adjustment: Rebound
- Spring Rate: 650 lbs/in
- Frame Rail Construction: Hydroformed steel
- Crossmember Construction: Stamped main and secondary crossmembers
- Steering: Power rack and pinion
- Sway Bar: Splined sway bar
- Total Suspension Travel: 6 inches
- Wheel Bolt Pattern: 5 x 4.75 inches
- Maximum Wheel Width: Up to 10 inches without modification to the inner wheel wells
- Minimum Wheel Diameter: 17 inches
- Minimum Inside Wheel Diameter: 16.250 inches
- Installation Type: Bolt-in replacement for the original stock subframe
- Shipping: Freight required
Features
- Hydroformed steel frame rails provide high strength, stiffness, dimensional accuracy, and repeatability
- Low-temperature hydroforming helps preserve the strength and stiffness of the steel
- Stamped main and secondary crossmembers increase structural rigidity and help reduce chassis flex
- Optimized Detroit Speed suspension and steering geometry is engineered for improved handling and ride quality
- Single-adjustable coilover shocks feature Detroit Tuned base valving with externally adjustable rebound control
- Rebound adjustment allows suspension response to be fine-tuned with the turn of a knob
- 650 lbs/in springs are matched to the Big Block Chevy configuration
- Power rack-and-pinion steering provides precise and responsive steering performance
- Splined sway bar helps control body motion during aggressive cornering
- Provides 6 inches of total suspension travel
- Accommodates wheels up to 10 inches wide without modification to the inner wheel wells
- Bare subframe allows the builder to choose the desired final chassis finish
- Bolt-in design replaces the original factory front subframe
- Engineered and developed for both road and track performance
- Made in the USA
Fitment Notes
- Part number 032018-SDS is configured for Big Block Chevy engine applications
- Fits within stock inner fenders on a 1969 Camaro without modification
- 1967-1968 Camaro applications may require modifications to the inner fenders
- Requires wheels at least 17 inches in diameter
- Requires a minimum inside wheel diameter of 16.250 inches
- Accommodates wheels up to 10 inches wide without modification to the inner wheel wells
- Wheel, tire, and brake clearance should be verified for the specific vehicle combination
- Optional Detroit Speed rack-and-pinion fluid transfer conversion kit is available for competition applications using -4 AN fittings and Teflon-lined hoses with pre-crimped stainless steel fittings
- Subframe ships via freight
Fitment
- 1973 Buick Apollo
- 1974 Buick Apollo
- 1967 Chevrolet Camaro
- 1968 Chevrolet Camaro
- 1969 Chevrolet Camaro
- 1968 Chevrolet Chevy II
- 1969 Chevrolet Nova
- 1970 Chevrolet Nova
- 1971 Chevrolet Nova
- 1972 Chevrolet Nova
- 1973 Chevrolet Nova
- 1974 Chevrolet Nova
- 1973 Oldsmobile Omega
- 1974 Oldsmobile Omega
- 1967 Pontiac Firebird
- 1968 Pontiac Firebird
- 1969 Pontiac Firebird
- 1971 Pontiac Ventura
- 1972 Pontiac Ventura
- 1973 Pontiac Ventura
- 1974 Pontiac Ventura
FAQs
What engines is DSE 032018-SDS configured for?
Detroit Speed 032018-SDS is the Big Block Chevy version of the bare Hydroformed Front Subframe and uses 650 lbs/in coilover springs.
What adjustment do the shocks on 032018-SDS provide?
The single-adjustable shocks combine Detroit Tuned base valving with externally adjustable rebound control. Rebound can be adjusted with the turn of a knob, giving the driver an easy way to fine-tune suspension response while retaining excellent street ride quality.
What does bare mean on DSE 032018-SDS?
The hydroformed subframe is supplied bare rather than with a finished powdercoated surface, giving builders flexibility when choosing the final chassis finish.
How is 032018-SDS different from 032018DS?
Both are bare Hydroformed Front Subframes configured for Big Block Chevy applications with 650 lbs/in springs. The 032018-SDS adds single-adjustable rebound control, while 032018DS uses non-adjustable shocks.
How is 032018-SDS different from 032018-DDS?
The 032018-SDS uses single-adjustable shocks with rebound adjustment, while 032018-DDS uses double-adjustable shocks with two independent adjustments for additional suspension tuning capability.
How is 032018-SDS different from 032005-SDS?
Both use single-adjustable shocks and are configured for Big Block Chevy applications with 650 lbs/in springs. The primary difference is the subframe finish: 032018-SDS is supplied bare, while 032005-SDS uses a powdercoated subframe.
Can I run 10-inch-wide front wheels with this subframe?
Yes. Detroit Speed states that wheels up to 10 inches wide can be packaged without modifying the inner wheel wells. Wheels must be at least 17 inches in diameter with a minimum inside wheel diameter of 16.250 inches.
Why Buy Detroit Speed from Beefcake Racing?
Beefcake Racing is your source for Detroit Speed suspension and chassis components for serious street, pro-touring, and track builds. A complete front subframe affects your suspension, steering, engine, brakes, wheels, and tires, so choosing the correct configuration matters. Our team can help you select the right Detroit Speed components for your Big Block-powered Camaro, Firebird, or GM X-Body build. Questions about DSE 032018-SDS or your combination? Email sales@beefcakeracing.com or call 1-855-827-7223.
