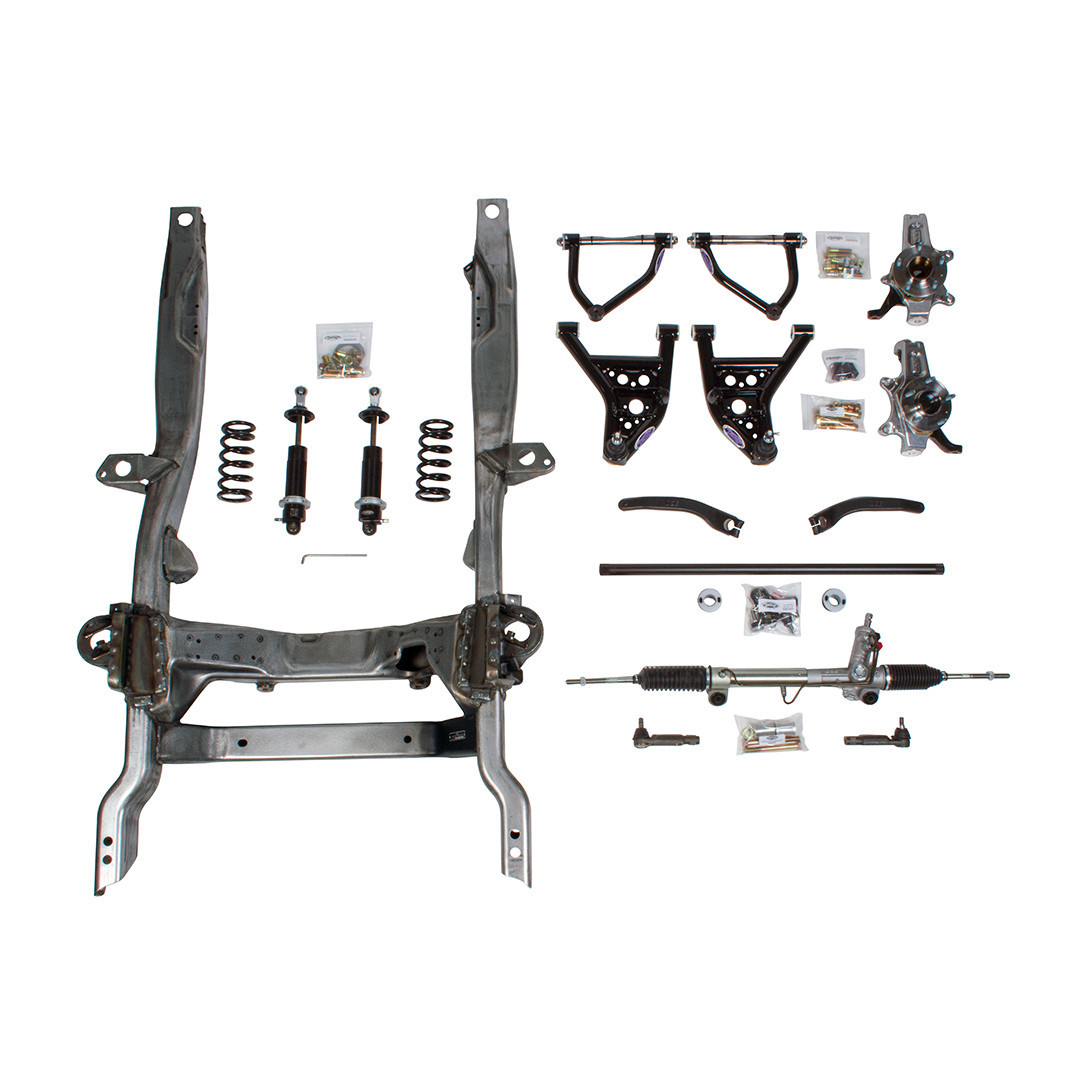

DSE Hydroformed Front Subframe - Bare - Non-Adjustable Shocks (032017DS) - 1967-1969 Camaro / Firebird / 1968-1974 Nova - SBC / LS
Build a stronger, sharper, more responsive foundation under your classic GM with the Detroit Speed Hydroformed Front Subframe. DSE 032017DS is a bolt-in replacement for the original front subframe that combines hydroformed steel frame rails, optimized Detroit Speed suspension and steering geometry, stamped structural crossmembers, power rack-and-pinion steering, a splined sway bar, and non-adjustable coilover shocks with Detroit Tuned valving. Designed for serious street, pro-touring, and track builds, this system gives 1967-1969 Camaro and Firebird and 1968-1974 GM X-Body owners modern suspension performance with the strength and precision needed to put more grip and control into the chassis.
Part number 032017DS is the bare subframe configuration for Small Block Chevy and LS applications, pairing 550 lbs/in springs with an 8-inch spring free length. The non-adjustable aluminum-body coilover shocks use Detroit Tuned valving to provide performance-focused damping and excellent street ride quality without requiring external shock adjustments. The bare subframe gives builders flexibility when selecting the final chassis finish, while Detroit Speed's hydroformed rails and stamped structural crossmembers create a rigid, repeatable foundation engineered for both road and track use.
Specifications
- Manufacturer: Detroit Speed
- Part Number: 032017DS
- Product Type: Hydroformed Front Subframe
- Vehicle Platform: 1967-1969 GM F-Body / 1968-1974 GM X-Body
- Subframe Finish: Bare
- Engine Application: Small Block Chevy / LS
- Shock Type: Non-Adjustable
- Shock Configuration: Aluminum-body coilover
- Shock Valving: Detroit Tuned
- Spring Rate: 550 lbs/in
- Spring Free Length: 8 inches
- Frame Rail Construction: Hydroformed steel
- Crossmember Construction: Stamped main and secondary crossmembers
- Steering: Power rack and pinion
- Sway Bar: Splined sway bar
- Installation Type: Bolt-in replacement for the original stock subframe
- Maximum Wheel Width: Up to 10 inches without modification to the inner wheel wells
- Minimum Wheel Diameter: 17 inches
- Minimum Inside Wheel Diameter: 16.25 inches
- Shipping: Freight required
Features
- Hydroformed steel frame rails provide high strength, stiffness, dimensional accuracy, and repeatability
- Low-temperature hydroforming helps preserve the strength and stiffness of the steel
- Stamped main and secondary crossmembers increase structural rigidity
- Detroit Speed suspension and steering geometry is engineered to improve handling and ride quality
- Non-adjustable aluminum-body coilover shocks feature Detroit Tuned valving
- Performance-focused shock calibration delivers responsive suspension control without requiring manual shock adjustments
- 550 lbs/in springs are matched to the Small Block Chevy / LS configuration
- Power rack-and-pinion steering provides precise and responsive steering performance
- Splined sway bar is integrated into the front suspension system
- Accommodates wheels up to 10 inches wide without modification to the inner wheel wells
- Bare subframe allows the builder to choose the desired final chassis finish
- Bolt-in design replaces the original factory front subframe
- Designed, engineered, and developed for both road and track use
- Made in the USA
Fitment Notes
- Part number 032017DS is configured for Small Block Chevy and LS engine applications
- Fits within stock inner fenders on a 1969 Camaro without modification
- 1967-1968 Camaro applications may require modifications to the inner fenders
- Requires wheels at least 17 inches in diameter
- Requires a minimum inside wheel diameter of 16.25 inches
- Accommodates wheels up to 10 inches wide without modification to the inner wheel wells
- Wheel, tire, and brake clearance should be verified for the specific vehicle combination
- Optional fluid transfer kit is available for AN-converted rack-and-pinion plumbing
- Subframe ships via freight
Fitment
- 1973 Buick Apollo
- 1974 Buick Apollo
- 1967 Chevrolet Camaro
- 1968 Chevrolet Camaro
- 1969 Chevrolet Camaro
- 1968 Chevrolet Chevy II
- 1969 Chevrolet Nova
- 1970 Chevrolet Nova
- 1971 Chevrolet Nova
- 1972 Chevrolet Nova
- 1973 Chevrolet Nova
- 1974 Chevrolet Nova
- 1973 Oldsmobile Omega
- 1974 Oldsmobile Omega
- 1967 Pontiac Firebird
- 1968 Pontiac Firebird
- 1969 Pontiac Firebird
- 1971 Pontiac Ventura
- 1972 Pontiac Ventura
- 1973 Pontiac Ventura
- 1974 Pontiac Ventura
FAQs
What engines is DSE 032017DS configured for?
Detroit Speed 032017DS is the Small Block Chevy / LS version of the bare Hydroformed Front Subframe. This configuration uses 550 lbs/in coilover springs with an 8-inch free length.
Are the shocks included with DSE 032017DS adjustable?
No. Part number 032017DS uses non-adjustable aluminum-body coilover shocks with Detroit Tuned valving. They provide performance-focused suspension control without requiring external shock adjustments.
What does bare mean on DSE 032017DS?
The hydroformed subframe itself is supplied bare rather than with the powdercoated subframe finish, giving builders flexibility when choosing the final chassis finish.
How is 032017DS different from 032017-DDS?
Both are bare Hydroformed Front Subframes configured for Small Block Chevy / LS applications with 550 lbs/in springs. The 032017DS uses non-adjustable shocks, while 032017-DDS uses double-adjustable shocks for additional suspension tuning capability.
How is 032017DS different from 032004DS?
Both versions use non-adjustable shocks and are configured for Small Block Chevy / LS applications. The primary difference is the subframe finish: 032017DS is supplied bare, while 032004DS uses a powdercoated subframe.
Can I run 10-inch-wide front wheels with this subframe?
Detroit Speed states that wheels up to 10 inches wide can be packaged without modifying the inner wheel wells. A minimum 17-inch wheel diameter with at least 16.25 inches of inside barrel clearance is required.
