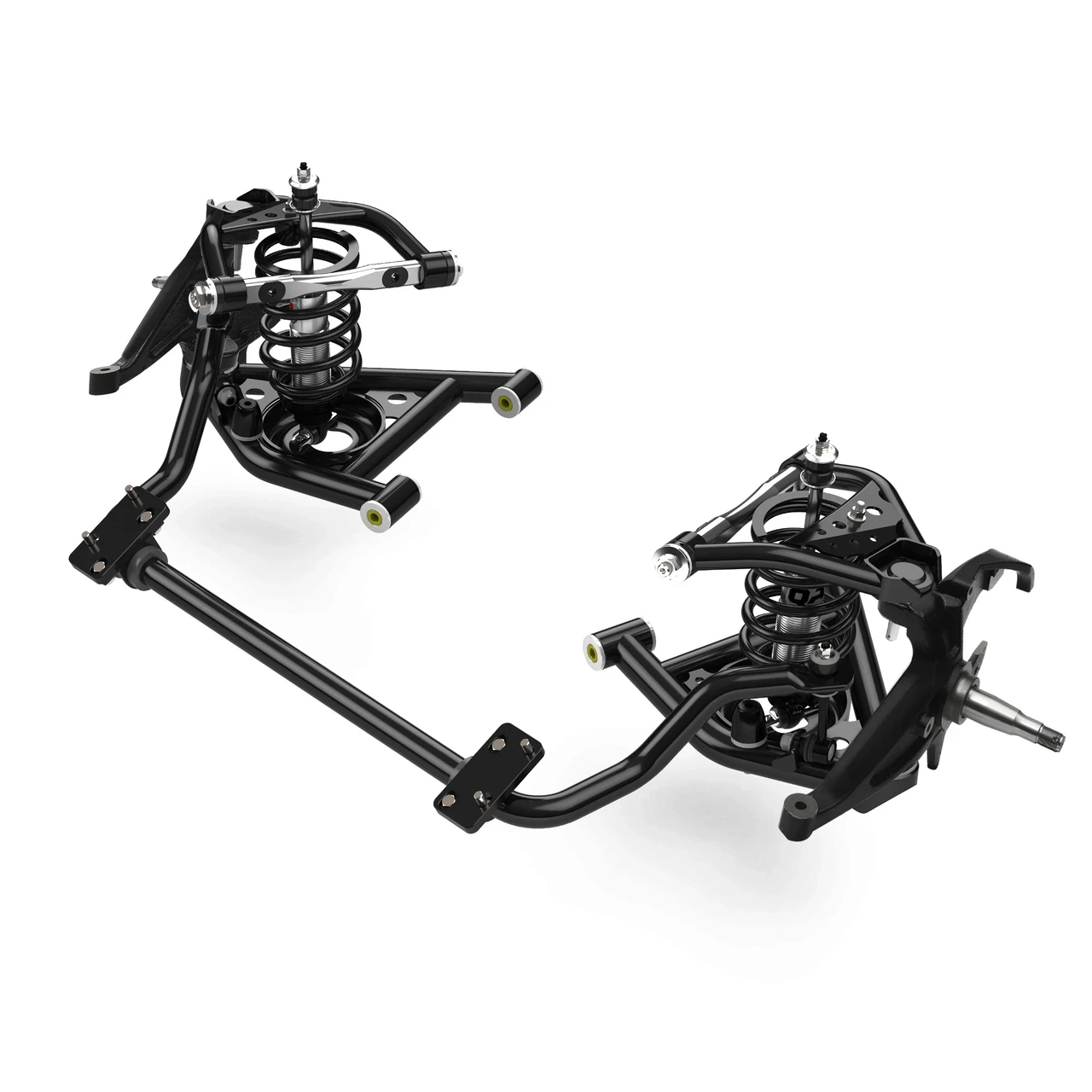

DSE Front Speed Kit 2 - Double Adjustable Shocks (031388DS) - 1982-2003 S10 / S15 / Sonoma 2WD
Take your 2WD S-Series suspension well beyond a basic lowering setup with the Detroit Speed Front Speed Kit 2. Engineered for 1982-2003 Chevrolet S10, GMC S15, and GMC Sonoma 2WD applications, part number 031388DS combines QA1 Pro Coil double-adjustable coilovers, Detroit Speed upper and lower control arms, 2-inch drop spindles, and a large tubular front sway bar into a complete bolt-in performance package. With up to 4.5 inches of front drop available, this system gives you the stance you want while improving suspension geometry, steering response, front-end grip, and overall control.
The 031388DS Speed Kit 2 pairs QA1 Pro Coil double-adjustable coilovers with a DSE Tuned 575 pounds per inch spring rate, giving you 18 clicks of compression and rebound adjustment to fine-tune ride and handling. Detroit Speed upper and lower control arms are engineered to correct suspension geometry at lowered ride heights, with caster tuning slugs providing 6 to 8 degrees of caster and a camber range from 0 to negative 2 degrees. Delrin bushings help minimize deflection and unwanted suspension movement, while the 1-7/16-inch diameter x 0.188-inch wall tubular sway bar reduces body roll and is tightly packaged to maximize tire clearance at full steering lock. The result is a serious front suspension system designed to make a lowered S10, S15, or Sonoma handle as good as it looks.
Specifications
- Manufacturer: Detroit Speed
- Part Number: 031388DS
- Product Type: Front Speed Kit
- Speed Kit Type: Front Speed Kit 2
- Application: 1982-2003 Chevrolet S10 / GMC S15 / GMC Sonoma 2WD
- Drivetrain Application: 2WD
- Shock Type: Double Adjustable Coilover
- Coilover Manufacturer: QA1
- Coilover Series: Pro Coil
- Compression Adjustment: 18 clicks
- Rebound Adjustment: 18 clicks
- Spring Rate: 575 pounds per inch
- Maximum Front Drop: Up to 4.5 inches
- Drop Spindles: Included
- Spindle Drop: 2 inches
- Upper Control Arms: Detroit Speed performance control arms
- Lower Control Arms: Detroit Speed performance control arms
- Control Arm Bushings: Delrin
- Caster Range: 6 to 8 degrees
- Camber Range: 0 to negative 2 degrees
- Alignment Adjustment: Caster tuning slugs
- Sway Bar Type: Tubular front sway bar
- Sway Bar Diameter: 1-7/16 inches
- Sway Bar Wall Thickness: 0.188 inch
- Installation Type: Bolt-In
- Cutting or Fabrication Required: No
- Manufactured In: Mooresville, North Carolina, USA
Features
- Comprehensive front suspension package engineered for 1982-2003 Chevrolet S10, GMC S15, and GMC Sonoma 2WD applications
- QA1 Pro Coil double-adjustable coilovers provide extensive control over ride quality and suspension response
- 18 clicks of compression and rebound adjustment allow the suspension to be fine-tuned for street driving, spirited use, or performance applications
- DSE Tuned 575 pounds per inch spring rate is matched to the coilover system for balanced handling and ride quality
- Combination of adjustable coilovers and 2-inch drop spindles allows up to 4.5 inches of front drop
- Detroit Speed upper and lower control arms improve suspension geometry and durability
- Control arm geometry is designed to improve performance at lowered ride heights
- Caster tuning slugs provide 6 to 8 degrees of caster for improved stability and steering feel
- Camber adjustment range from 0 to negative 2 degrees provides additional alignment tuning capability
- Delrin control arm bushings help minimize deflection and lost suspension motion for improved driver feedback
- 1-7/16-inch diameter x 0.188-inch wall tubular front sway bar helps reduce body roll and improve cornering stability
- Sway bar geometry and packaging help maximize clearance at full steering lock for wider front tire combinations
- Improved front suspension geometry helps increase tire contact and provide more predictable steering response
- Coilover system provides precise control over stance and ride characteristics
- Bolt-in design requires no cutting or fabrication
- Integrated suspension components are engineered to work together as a complete performance system
- Ideal for performance street, restomod, autocross, and track-oriented 2WD S-Series builds
- Designed, tested, and manufactured in Mooresville, North Carolina
Fitment
- 1982 Chevrolet S10 2WD
- 1983 Chevrolet S10 2WD
- 1984 Chevrolet S10 2WD
- 1985 Chevrolet S10 2WD
- 1986 Chevrolet S10 2WD
- 1987 Chevrolet S10 2WD
- 1988 Chevrolet S10 2WD
- 1989 Chevrolet S10 2WD
- 1990 Chevrolet S10 2WD
- 1991 Chevrolet S10 2WD
- 1992 Chevrolet S10 2WD
- 1993 Chevrolet S10 2WD
- 1994 Chevrolet S10 2WD
- 1995 Chevrolet S10 2WD
- 1996 Chevrolet S10 2WD
- 1997 Chevrolet S10 2WD
- 1998 Chevrolet S10 2WD
- 1999 Chevrolet S10 2WD
- 2000 Chevrolet S10 2WD
- 2001 Chevrolet S10 2WD
- 2002 Chevrolet S10 2WD
- 2003 Chevrolet S10 2WD
- 1982 GMC S15 2WD
- 1983 GMC S15 2WD
- 1984 GMC S15 2WD
- 1985 GMC S15 2WD
- 1986 GMC S15 2WD
- 1987 GMC S15 2WD
- 1988 GMC S15 2WD
- 1989 GMC S15 2WD
- 1990 GMC S15 2WD
- 1991 GMC S15 2WD
- 1992 GMC S15 2WD
- 1993 GMC S15 2WD
- 1994 GMC S15 2WD
- 1995 GMC S15 2WD
- 1996 GMC S15 2WD
- 1997 GMC S15 2WD
- 1998 GMC S15 2WD
- 1999 GMC S15 2WD
- 2000 GMC S15 2WD
- 2001 GMC S15 2WD
- 2002 GMC S15 2WD
- 2003 GMC S15 2WD
- 1982 GMC Sonoma 2WD
- 1983 GMC Sonoma 2WD
- 1984 GMC Sonoma 2WD
- 1985 GMC Sonoma 2WD
- 1986 GMC Sonoma 2WD
- 1987 GMC Sonoma 2WD
- 1988 GMC Sonoma 2WD
- 1989 GMC Sonoma 2WD
- 1990 GMC Sonoma 2WD
- 1991 GMC Sonoma 2WD
- 1992 GMC Sonoma 2WD
- 1993 GMC Sonoma 2WD
- 1994 GMC Sonoma 2WD
- 1995 GMC Sonoma 2WD
- 1996 GMC Sonoma 2WD
- 1997 GMC Sonoma 2WD
- 1998 GMC Sonoma 2WD
- 1999 GMC Sonoma 2WD
- 2000 GMC Sonoma 2WD
- 2001 GMC Sonoma 2WD
- 2002 GMC Sonoma 2WD
- 2003 GMC Sonoma 2WD
FAQs
What vehicles does DSE 031388DS fit?
Detroit Speed 031388DS is designed for 1982-2003 Chevrolet S10, GMC S15, and GMC Sonoma 2WD applications.
How much can DSE 031388DS lower an S10, S15, or Sonoma?
The combination of QA1 Pro Coil adjustable coilovers and included 2-inch drop spindles allows up to 4.5 inches of front drop, giving you substantial flexibility when setting the truck's stance.
What type of shocks are included with DSE 031388DS?
The kit includes QA1 Pro Coil double-adjustable coilovers with 18 clicks of adjustment for compression and rebound, allowing the suspension to be fine-tuned for ride quality and handling.
What spring rate does DSE 031388DS use?
Detroit Speed pairs the QA1 coilovers with DSE Tuned 575 pounds per inch springs to provide a balance of handling performance, ride quality, and street drivability.
What alignment adjustment does DSE 031388DS provide?
Detroit Speed's caster tuning slugs provide a caster range of 6 to 8 degrees and a camber range from 0 to negative 2 degrees, allowing the alignment to be optimized for the vehicle and intended use.
Does DSE 031388DS include control arms?
Yes. Speed Kit 2 includes Detroit Speed upper and lower control arms engineered to improve suspension geometry at lowered ride heights. Delrin bushings help minimize deflection and unwanted suspension movement.
Does DSE 031388DS require cutting or fabrication?
No. Detroit Speed designed the system as a bolt-in suspension package that does not require cutting or fabrication.
What is the difference between DSE Speed Kit 1 and Speed Kit 2 for the S10?
Speed Kit 2 builds on the coilover and sway bar upgrades of Speed Kit 1 by adding Detroit Speed upper and lower control arms and 2-inch drop spindles. These additions provide greater lowering capability, improved suspension geometry, and increased alignment control.
Get Your Detroit Speed S10 Suspension from Beefcake Racing
Turn your 2WD S-Series into a lower, sharper, and more responsive performance truck with the Detroit Speed 031388DS Front Speed Kit 2 from Beefcake Racing. With QA1 double-adjustable coilovers, Detroit Speed control arms, 2-inch drop spindles, and a large tubular sway bar working together as a complete system, this package gives serious builds the suspension hardware needed to back up an aggressive stance with real handling performance. Questions about Detroit Speed 031388DS or your S10, S15, or Sonoma suspension setup? Contact Beefcake Racing at sales@beefcakeracing.com or call 1-855-827-7223.
