DSE Front Speed Kit 3 - Non-Adjustable Shocks (031361DS) - 1973-1974 Camaro / Pontiac Firebird - BBC
Transform the front-end performance of your big-block second-generation F-Body with the Detroit Speed Front Speed Kit 3. Designed for 1973-1974 Chevrolet Camaro and Pontiac Firebird big-block applications, this comprehensive package combines proven Detroit Speed suspension and steering components into an integrated system engineered to work with the stock front subframe. Speed Kit 3 delivers a major upgrade in handling, steering response, suspension geometry, and ride-height control while maintaining the convenience of a 100% bolt-on package.

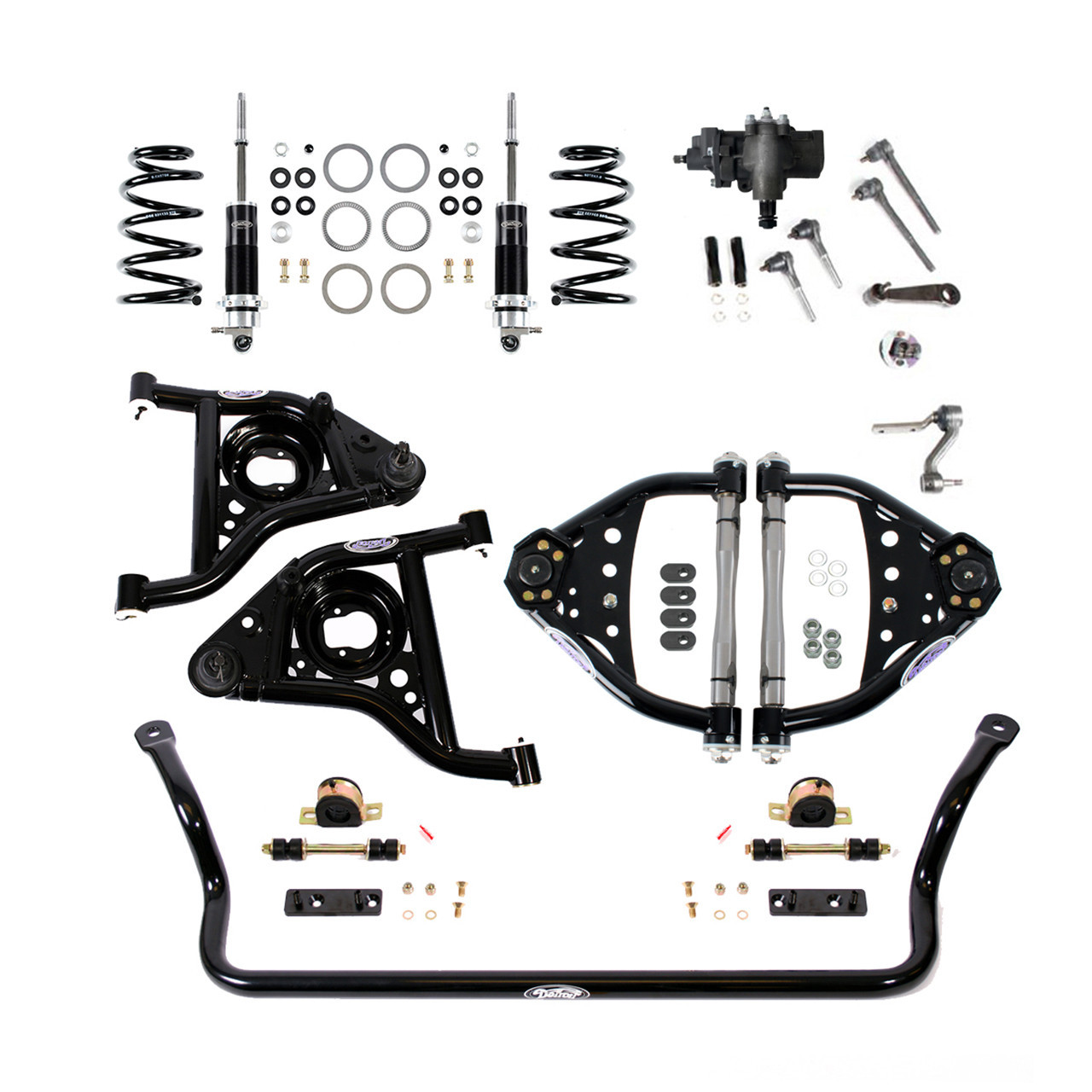

Part number 031361DS combines JRi non-adjustable coilover shocks with Detroit Tuned valving, tubular upper and lower control arms, a substantial 1-3/8-inch OD x 0.188-inch wall tubular sway bar, and an all-new 12.7:1 quick-ratio steering gear with Detroit Tuned rack-and-pinion valve technology. The coilover system provides adjustable ride height even though shock damping is non-adjustable, while 575 or 700 pounds per inch spring options let you select the appropriate spring rate for your application. Detroit Speed's steering service kit rounds out a coordinated front-end package engineered to give your classic Camaro or Firebird tighter control and the precise, responsive feel expected from a serious performance build.
Specifications
- Manufacturer: Detroit Speed
- Part Number: 031361DS
- Product Type: Front Speed Kit
- Speed Kit Type: Front Speed Kit 3
- Engine Application: Big Block Chevy / Pontiac Engine
- Shock Type: Non-Adjustable
- Coilover Shocks: JRi with Detroit Tuned valving
- Spring Rate: 575 or 700 pounds per inch
- Spring Free Length: 9.5 inches
- Ride Height: Adjustable
- Sway Bar: 1-3/8-inch OD x 0.188-inch wall tubular construction
- Sway Bar Bushings: Greaseable polyurethane
- Lower Control Arm Bushings: Delrin
- Lower Control Arm Finish: Gloss black powder coat
- Steering Gear Ratio: 12.7:1 quick ratio
- Installation: 100% bolt-on
Features
- Integrated Front Speed Kit 3 engineered to upgrade suspension and steering performance while retaining the stock front subframe
- 100% bolt-on package provides a comprehensive performance upgrade without requiring a complete aftermarket front subframe
- JRi non-adjustable coilover shocks feature Detroit Tuned valving for application-specific suspension control
- Coilover system provides adjustable vehicle ride height even though shock damping is non-adjustable
- Choice of 575 or 700 pounds per inch spring rates with a 9.5-inch spring free length
- Upper control arms feature CNC stainless steel cross shafts incorporating Detroit Speed caster tuner bushings
- Lower control arms provide additional positive caster for improved suspension geometry
- Delrin lower control arm bushings provide precise suspension articulation
- Gloss black powder-coated lower control arms provide a durable, finished appearance
- 1-3/8-inch OD x 0.188-inch wall tubular sway bar helps control body roll and improve front-end response
- Greaseable polyurethane sway bar bushings and end links provide durable, serviceable mounting points
- All-new 12.7:1 quick-ratio steering gear is supplied as a new unit rather than a rebuilt steering box
- Detroit Tuned rack-and-pinion valve technology provides responsive steering characteristics
- Detroit Speed steering service kit supplies premium components for rebuilding and refreshing the front steering system
- Matched suspension and steering components are engineered to function together as an integrated performance package
- Additional shock options are available for builds requiring greater suspension adjustability
Fitment
- 1973 Chevrolet Camaro - Big Block Chevy
- 1974 Chevrolet Camaro - Big Block Chevy
- 1973 Pontiac Firebird - Big Block Chevy / Pontiac Engine
- 1974 Pontiac Firebird - Big Block Chevy / Pontiac Engine
FAQs
What vehicles does DSE 031361DS fit?
Detroit Speed 031361DS is designed for 1973-1974 Chevrolet Camaro and Pontiac Firebird big-block applications, including Big Block Chevy or applicable Pontiac engines.
Are the shocks in DSE 031361DS adjustable?
The JRi shock damping is non-adjustable and features Detroit Tuned valving. The coilover suspension still provides adjustable ride height, allowing you to dial in vehicle stance without manually adjusting shock damping.
What spring rates are available with DSE 031361DS?
Detroit Speed specifies 575 or 700 pounds per inch spring-rate options for this Speed Kit 3. Spring free length is 9.5 inches.
What steering upgrades are included with this Front Speed Kit 3?
The package includes an all-new 12.7:1 quick-ratio steering gear featuring Detroit Tuned rack-and-pinion valve technology along with a Detroit Speed steering service kit for rebuilding and refreshing the front steering components.
Is DSE 031361DS designed for SBC / LS applications?
No. Part number 031361DS is the big-block version of the 1973-1974 Front Speed Kit 3. Detroit Speed uses a different part number for SBC / LS applications, so verify your engine configuration before ordering.
Get Your Detroit Speed Suspension from Beefcake Racing
Give your 1973-1974 Camaro or Firebird the steering response, suspension control, and adjustable stance of a properly engineered Detroit Speed system from Beefcake Racing. Whether you are upgrading a hard-running street car, building a modern restomod, or putting together a serious Pro Touring F-Body, our team can help you select the right suspension components for your combination. Questions about Detroit Speed 031361DS, spring-rate selection, or your suspension setup? Contact Beefcake Racing at sales@beefcakeracing.com or call 1-855-827-7223.
