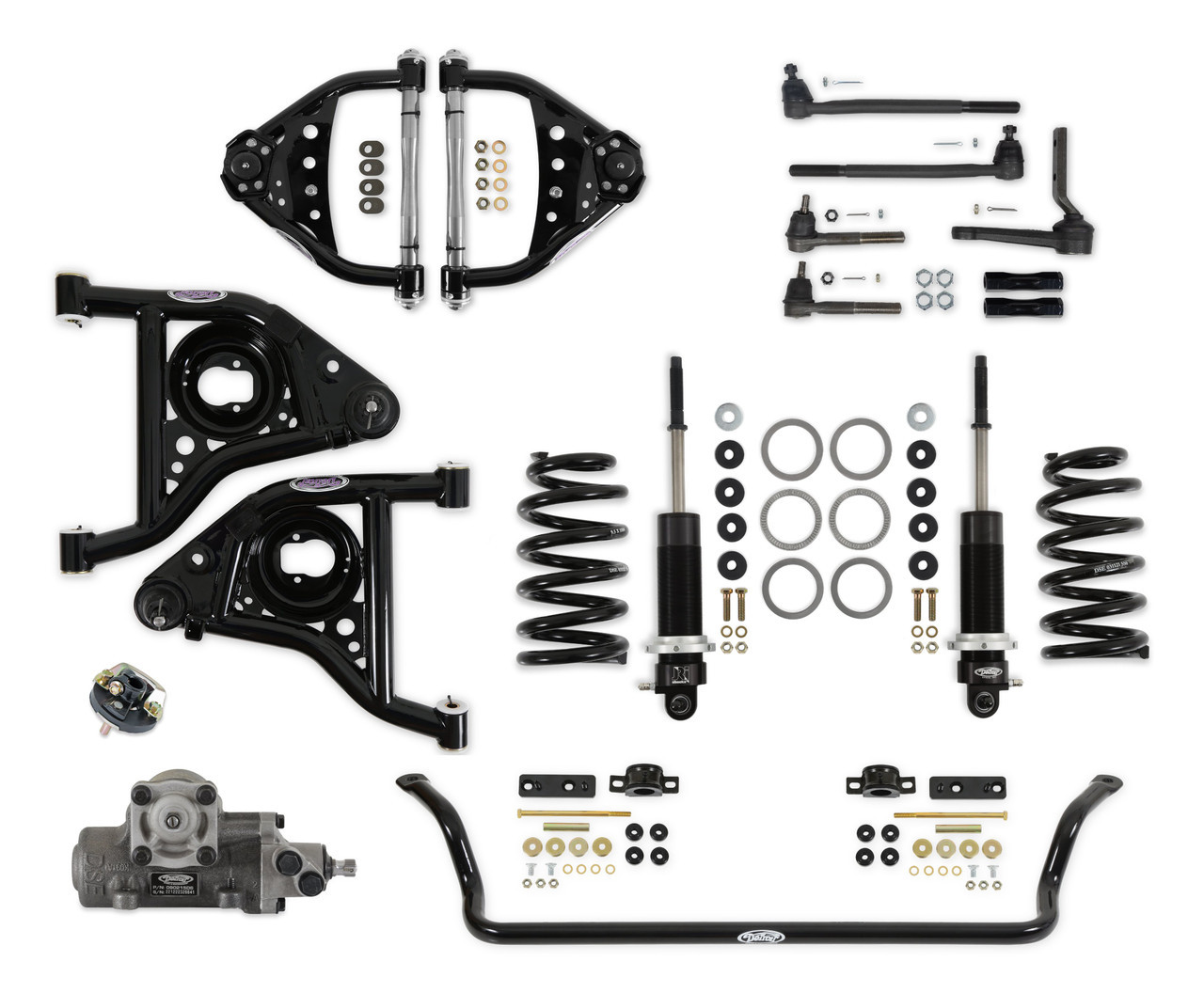

DSE Front Speed Kit 3 - Single Adjustable Shocks (031356-SDS) - 1970-1972 Camaro / Pontiac Firebird - SBC / LS
Take the front-end performance of your second-generation F-Body to a much higher level with the Detroit Speed Front Speed Kit 3. Designed for 1970-1972 Chevrolet Camaro and Pontiac Firebird models with Small Block Chevy or LS engines, this integrated suspension and steering package combines proven Detroit Speed components engineered to work together. Speed Kit 3 is built for enthusiasts who want sharper steering response, improved suspension geometry, greater chassis control, adjustable ride height, and tunable shock performance while retaining the stock front subframe.
Part number 031356-SDS steps up to JRi single-adjustable coilover shocks with Detroit Tuned valving, giving you additional control over suspension tuning while retaining coilover ride-height adjustment. Tubular upper and lower control arms improve suspension geometry and caster, while the substantial 1-3/8-inch OD x 0.188-inch wall tubular sway bar helps control body roll. An all-new 12.7:1 quick-ratio steering gear with Detroit Tuned rack-and-pinion valve technology and a Detroit Speed steering service kit complete a coordinated package engineered to give a classic F-Body the precise, responsive feel expected from a serious street, restomod, or Pro Touring build.
Specifications
- Manufacturer: Detroit Speed
- Part Number: 031356-SDS
- Product Type: Front Speed Kit
- Speed Kit Type: Front Speed Kit 3
- Engine Application: Small Block Chevy / LS
- Shock Type: Single Adjustable
- Coilover Shocks: JRi with Detroit Tuned valving
- Spring Rate: 575 or 700 pounds per inch
- Spring Free Length: 9.5 inches
- Ride Height: Adjustable
- Sway Bar: 1-3/8-inch OD x 0.188-inch wall tubular construction
- Sway Bar Bushings: Greaseable polyurethane
- Lower Control Arm Bushings: Delrin
- Lower Control Arm Finish: Gloss black powder coat
- Steering Gear Ratio: 12.7:1 quick ratio
- Installation: 100% bolt-on
Features
- Integrated Front Speed Kit 3 engineered to upgrade suspension and steering performance while retaining the stock front subframe
- 100% bolt-on package provides a comprehensive performance upgrade without requiring a complete aftermarket front subframe
- JRi single-adjustable coilover shocks feature Detroit Tuned valving for increased suspension tuning capability
- Coilover design provides adjustable vehicle ride height for dialing in stance and suspension setup
- Choice of 575 or 700 pounds per inch spring rates with a 9.5-inch spring free length
- Upper control arms feature CNC stainless steel cross shafts incorporating Detroit Speed caster tuner bushings
- Lower control arms provide additional positive caster for improved suspension geometry
- Delrin lower control arm bushings provide precise suspension articulation
- Gloss black powder-coated lower control arms provide a durable, finished appearance
- 1-3/8-inch OD x 0.188-inch wall tubular sway bar helps control body roll and improve front-end response
- Greaseable polyurethane sway bar bushings and end links provide durable, serviceable mounting points
- All-new 12.7:1 quick-ratio steering gear is supplied as a new unit rather than a rebuilt steering box
- Detroit Tuned rack-and-pinion valve technology provides responsive steering characteristics
- Detroit Speed steering service kit supplies premium components for rebuilding and refreshing the front steering system
- Matched suspension and steering components are designed to function together as an integrated performance system
- Additional shock options are available for applications requiring different levels of suspension adjustability
Fitment
- 1970 Chevrolet Camaro - SBC / LS
- 1971 Chevrolet Camaro - SBC / LS
- 1972 Chevrolet Camaro - SBC / LS
- 1970 Pontiac Firebird - SBC / LS
- 1971 Pontiac Firebird - SBC / LS
- 1972 Pontiac Firebird - SBC / LS
FAQs
What vehicles does DSE 031356-SDS fit?
Detroit Speed 031356-SDS is designed for 1970-1972 Chevrolet Camaro and Pontiac Firebird applications with Small Block Chevy or LS engines.
What type of shocks are included with DSE 031356-SDS?
This Speed Kit 3 uses JRi single-adjustable coilover shocks with Detroit Tuned valving, providing additional suspension tuning capability along with adjustable vehicle ride height.
What spring rates are available with DSE 031356-SDS?
Detroit Speed specifies a choice of 575 or 700 pounds per inch spring rates. The springs have a 9.5-inch free length.
What steering upgrades are included with this Front Speed Kit 3?
The package includes an all-new 12.7:1 quick-ratio steering gear featuring Detroit Tuned rack-and-pinion valve technology along with a Detroit Speed steering service kit for refreshing the front steering components.
Is DSE 031356-SDS designed for Big Block Chevy applications?
No. Part number 031356-SDS is the Small Block Chevy / LS version of this Front Speed Kit 3. Big Block Chevy applications use a different Detroit Speed part number, so verify your engine configuration before ordering.
Get Your Detroit Speed Suspension from Beefcake Racing
Give your 1970-1972 Camaro or Firebird the sharper steering, improved suspension control, and adjustability of a properly engineered Detroit Speed system from Beefcake Racing. Whether you are building a responsive street machine, modern restomod, or serious Pro Touring F-Body, our team can help you select the right suspension components for your combination. Questions about Detroit Speed 031356-SDS, spring-rate selection, or your suspension setup? Contact Beefcake Racing at sales@beefcakeracing.com or call 1-855-827-7223.
