DSE Front Speed Kit 3 - Single Adjustable Shocks (031353-SDS) - 1967-1969 Camaro / Firebird / 1968-1974 Nova BBC

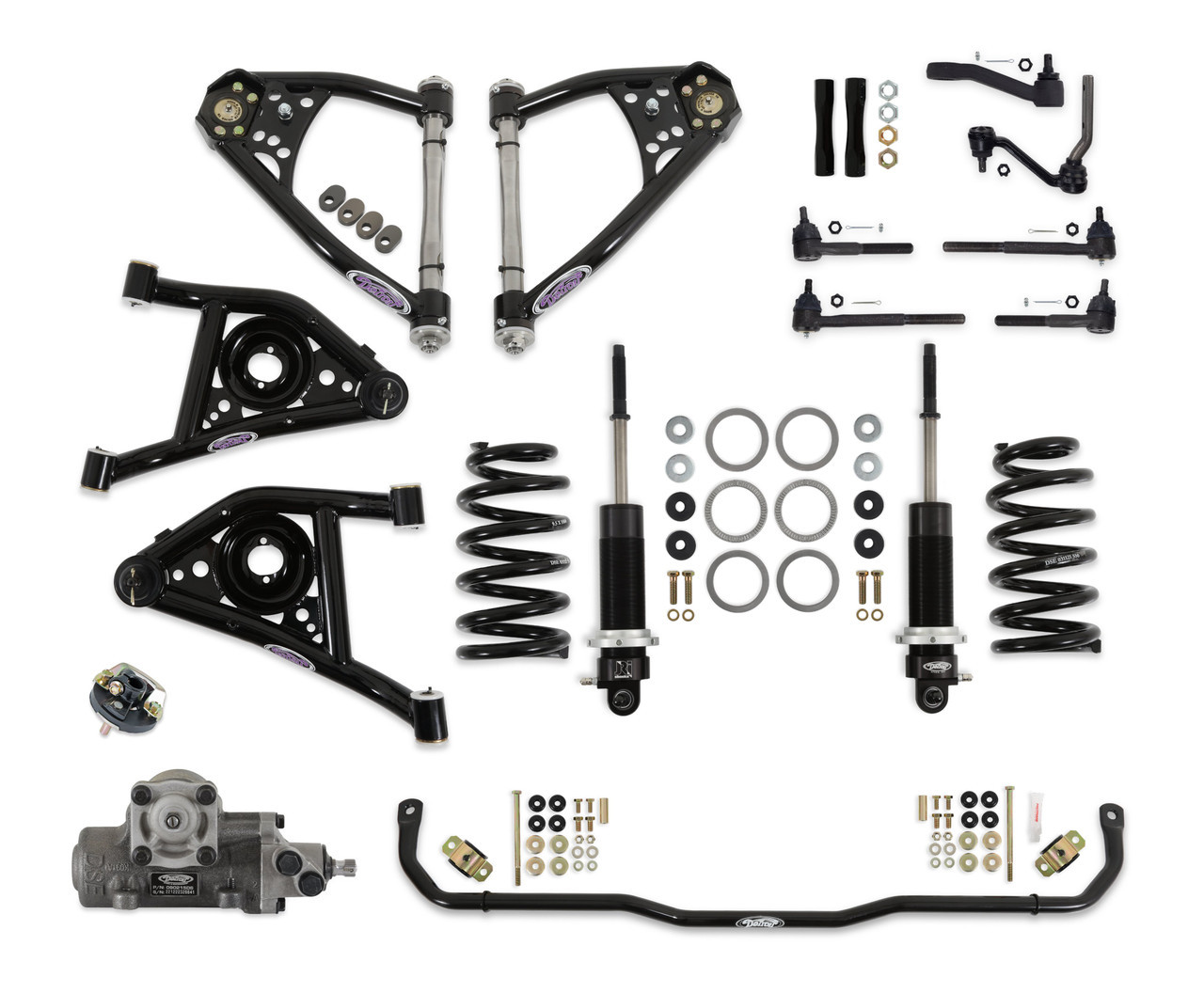

Bring modern steering response, suspension control, and adjustability to your big-block classic with the Detroit Speed Front Speed Kit 3. Engineered for 1967-1969 Chevrolet Camaro, 1967-1969 Pontiac Firebird, and 1968-1974 Chevrolet Nova BBC applications, this integrated front suspension and steering package is designed to deliver a major performance upgrade while retaining the stock front subframe. The 100% bolt-on system combines carefully matched Detroit Speed components to improve suspension geometry, steering response, handling, and overall road manners without requiring a complete aftermarket front subframe conversion.
Part number 031353-SDS features JRi single-adjustable coilover shocks with Detroit Tuned valving, giving you suspension tuning capability along with adjustable vehicle ride height. Tubular upper and lower control arms improve suspension geometry and add positive caster, while the 1-1/8-inch OD tubular sway bar provides additional roll control. Detroit Speed rounds out the package with an all-new 12.7:1 quick-ratio steering gear featuring Detroit Tuned rack-and-pinion valve technology and a steering service kit with premium components to help deliver the tight, responsive steering feel a serious street, restomod, or Pro Touring build deserves.
Specifications
- Manufacturer: Detroit Speed
- Part Number: 031353-SDS
- Product Type: Front Speed Kit 3
- Shock Type: Single Adjustable
- Engine Application: Big Block Chevy (BBC)
- Installation: 100% bolt-on
- Coilover Shocks: JRi with Detroit Tuned valving
- Spring Rate: 550 or 650 pounds per inch
- Spring Free Length: 9.5 inches
- Sway Bar: 1-1/8-inch OD x 0.156-inch wall tubular construction
- Sway Bar Bushings: Greaseable polyurethane
- Lower Control Arm Bushings: Delrin
- Lower Control Arm Finish: Gloss black powder coat
- Steering Gear Ratio: 12.7:1 quick ratio
Features
- Integrated Speed Kit 3 package engineered to upgrade front suspension and steering performance while retaining the stock subframe
- 100% bolt-on design provides a comprehensive performance upgrade without requiring a complete aftermarket front subframe
- JRi single-adjustable coilover shocks feature Detroit Tuned valving for increased suspension tuning capability
- Coilover system allows vehicle ride height adjustment to help dial in stance and suspension setup
- Choice of 550 or 650 pounds per inch spring rates with a 9.5-inch spring free length
- Upper control arms feature CNC stainless steel cross shafts incorporating Detroit Speed caster tuner bushings
- Lower control arms provide additional positive caster for improved suspension geometry
- Delrin lower control arm bushings provide precise suspension articulation
- Gloss black powder-coated lower control arms provide a durable, finished appearance
- 1-1/8-inch OD x 0.156-inch wall tubular sway bar helps improve roll control
- Greaseable polyurethane sway bar bushings and end links provide durable, serviceable mounting points
- All-new 12.7:1 quick-ratio steering gear is supplied as a new unit rather than a rebuilt steering box
- Detroit Tuned rack-and-pinion valve technology provides responsive steering characteristics
- Detroit Speed steering service kit supplies premium components for rebuilding and refreshing the front steering system
- Matched components are designed to work together as a complete front suspension and steering system
Fitment
- 1967 Chevrolet Camaro - BBC
- 1968 Chevrolet Camaro - BBC
- 1969 Chevrolet Camaro - BBC
- 1967 Pontiac Firebird - BBC
- 1968 Pontiac Firebird - BBC
- 1969 Pontiac Firebird - BBC
- 1968 Chevrolet Nova - BBC
- 1969 Chevrolet Nova - BBC
- 1970 Chevrolet Nova - BBC
- 1971 Chevrolet Nova - BBC
- 1972 Chevrolet Nova - BBC
- 1973 Chevrolet Nova - BBC
- 1974 Chevrolet Nova - BBC
FAQs
What vehicles does DSE 031353-SDS fit?
Detroit Speed 031353-SDS is designed for 1967-1969 Chevrolet Camaro, 1967-1969 Pontiac Firebird, and 1968-1974 Chevrolet Nova applications equipped with a Big Block Chevy engine.
What type of shocks are included with DSE 031353-SDS?
This Speed Kit 3 includes JRi single-adjustable coilover shocks with Detroit Tuned valving. The coilover system also provides adjustable vehicle ride height.
What spring rates are available with this Front Speed Kit 3?
Detroit Speed specifies a choice of 550 or 650 pounds per inch spring rates with a 9.5-inch spring free length.
What steering upgrades are included with DSE 031353-SDS?
The package includes an all-new 12.7:1 quick-ratio steering gear with Detroit Tuned rack-and-pinion valve technology plus a Detroit Speed steering service kit with premium components for refreshing the front steering system.
Is DSE 031353-SDS designed for SBC or LS engines?
No. Part number 031353-SDS is specifically the Big Block Chevy version of this Front Speed Kit 3. SBC and LS applications use a different Detroit Speed part number, so engine application should be verified before ordering.
