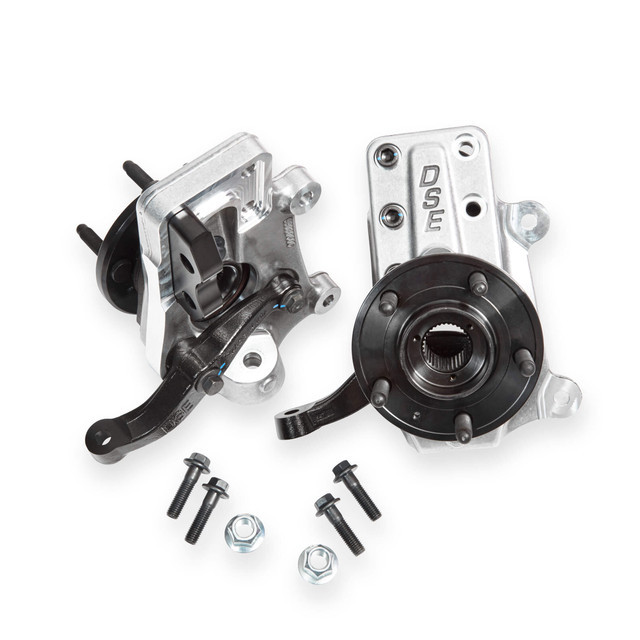

DSE Lowering Hubpack Uprights - Forged Aluminum (030346DS) - 1979-1993 Ford Mustang / 1979-1986 Mercury Capri
Bring modern front suspension geometry, braking capability, and steering response to your Fox Body with the Detroit Speed Lowering Hubpack Uprights. Engineered for 1979-1993 Ford Mustang and 1979-1986 Mercury Capri applications, these forged aluminum uprights incorporate 2 inches of lowering directly into the design while improving suspension geometry for more confident cornering and a more aggressive stance. For street performance, autocross, or track-focused builds, this system addresses several key areas of the factory front suspension with one purpose-built upgrade.
The forged aluminum construction provides the strength and rigidity needed for demanding performance use, while the hubpack bearing design eliminates spindle pin flex for more consistent braking and steering control. Optimized Ackermann and bump steer geometry help reduce undesirable toe change and sharpen turn-in response. Brake mounting is designed around 2015-2024 S550 Mustang OE and aftermarket brake systems, opening the door to modern brake packages with a broad selection of pads and rotors.
Specifications
- Part Number: 030346DS
- Product Type: Lowering Hubpack Uprights
- Position: Front
- Construction: Forged aluminum
- Built-In Lowering: 2 inches
- Wheel Bolt Circle: 5 x 4.5 inches
- Hub Pilot Diameter: 2.78 inches
- Ball Joint Requirement: 1994-2004 SN95 Mustang ball joint upgrade required
- Brake Requirement: 2015-2024 S550 Mustang brake system required
- Brake Compatibility: S550 Mustang OE and aftermarket brake systems
- Manufacturing Location: Mooresville, North Carolina, USA
- Warranty: Two-year warranty against defects in material and workmanship
Features
- Forged aluminum upright assemblies engineered for Fox Body Mustang and Capri applications
- Built-in 2-inch drop improves stance while optimizing front suspension geometry
- Optimized Ackermann geometry provides sharper, more predictable steering response
- Improved bump steer geometry helps minimize unwanted toe changes through suspension travel
- Hubpack bearing system eliminates spindle pin flex for improved braking and steering control
- Designed to accommodate S550 Mustang OE and aftermarket brake systems
- Modern brake compatibility expands available rotor and brake pad options
- Uses the stronger SN95 Mustang ball joint for improved durability and handling precision
- 5 x 4.5-inch wheel bolt circle with 2.78-inch pilot diameter
- Designed for performance street, autocross, and track applications
- Includes left-hand and right-hand forged aluminum upright assemblies and brake mounting hardware
- Designed and manufactured in the USA
Fitment
- 1979 Ford Mustang
- 1980 Ford Mustang
- 1981 Ford Mustang
- 1982 Ford Mustang
- 1983 Ford Mustang
- 1984 Ford Mustang
- 1985 Ford Mustang
- 1986 Ford Mustang
- 1987 Ford Mustang
- 1988 Ford Mustang
- 1989 Ford Mustang
- 1990 Ford Mustang
- 1991 Ford Mustang
- 1992 Ford Mustang
- 1993 Ford Mustang
- 1979 Mercury Capri
- 1980 Mercury Capri
- 1981 Mercury Capri
- 1982 Mercury Capri
- 1983 Mercury Capri
- 1984 Mercury Capri
- 1985 Mercury Capri
- 1986 Mercury Capri
Important Fitment Notes
- Requires an SN95 Mustang 1994-2004 ball joint upgrade.
- Requires a 2015-2024 S550 Mustang brake system.
- Hub uses a 5 x 4.5-inch wheel bolt circle and 2.78-inch pilot diameter.
- Refer to the Detroit Speed installation instructions for complete wheel fitment requirements.
FAQs
How much do the DSE 030346DS uprights lower a Fox Body Mustang or Capri?
The lowering is engineered directly into the upright, providing a 2-inch drop while improving the suspension geometry and stance of the vehicle.
Can I use the factory Fox Body brakes and ball joints with these uprights?
No. Detroit Speed specifies a 1994-2004 SN95 Mustang ball joint upgrade and a 2015-2024 S550 Mustang brake system for use with these uprights.
