DSE Front Weight Jack Kit (1982 - 1992 Chevrolet Camaro / Pontiac Firebird) 030331DS
Dial in the stance and front corner weights of your third-generation F-Body with the Detroit Speed Front Weight Jack Kit 030331DS. Designed as a direct replacement for the standard front coil springs on 1982-1992 Chevrolet Camaro and Pontiac Firebird models, this system gives you independent front corner height adjustment along with the ability to tune front corner weights. Unlike a traditional coilover conversion, the Detroit Speed weight jack arrangement also provides additional inner tire clearance, making it an excellent solution for performance builds where suspension tuning and wheel and tire packaging both matter.
The 030331DS system uses a threaded jack bolt that can be adjusted from underneath the lower control arm with a 1/2-inch ratchet extension, making height and corner weight changes straightforward. Each jack bolt articulates on an aircraft-grade monoball mounted in a billet aluminum frame cup for smooth, precise movement throughout suspension travel. Detroit Speed pairs the assemblies with custom 950 pounds per inch coil springs and billet spring perches to create a purpose-built front suspension tuning system without requiring cutting or modification for installation.
Specifications
- Manufacturer: Detroit Speed
- Part Number: 030331DS
- Product Type: Front Weight Jack Kit
- Vehicle Platform: GM F-Body
- Vehicle Application: 1982-1992 Chevrolet Camaro / Pontiac Firebird
- Installation Location: Front
- Spring Rate: 950 pounds per inch
- Spring Free Length: 8 inches
- Adjustment: Independent Front Corner Height and Corner Weight
- Adjustment Method: Threaded Jack Bolt
- Adjustment Access: Bottom Side of Lower Control Arm
- Adjustment Tool: 1/2-inch Ratchet Extension
- Jack Bolt Articulation: Aircraft-Grade Monoball
- Frame Cup Material: Billet Aluminum
- Spring Perch: Billet
- Installation Type: Direct Replacement for Standard Front Coil Springs
- Cutting or Modification Required: No
Features
- Direct replacement assembly for the standard front coil springs
- Allows independent front corner ride height adjustment
- Provides front corner weight tuning for performance suspension setup
- Requires no cutting or modification for installation
- Threaded jack bolt provides precise suspension adjustment
- Jack bolt can be turned from underneath the lower control arm with a 1/2-inch ratchet extension
- Aircraft-grade monoball allows smooth, precise jack bolt articulation throughout suspension travel
- Billet aluminum frame cup provides a rigid mounting point for the monoball assembly
- Custom 950 pounds per inch front coil springs are included
- Billet spring perch is incorporated into the weight jack system
- Provides more inner tire clearance than a traditional coilover system
- Ideal for third-generation F-Body builds where front corner weight, ride height, and tire clearance are important setup considerations

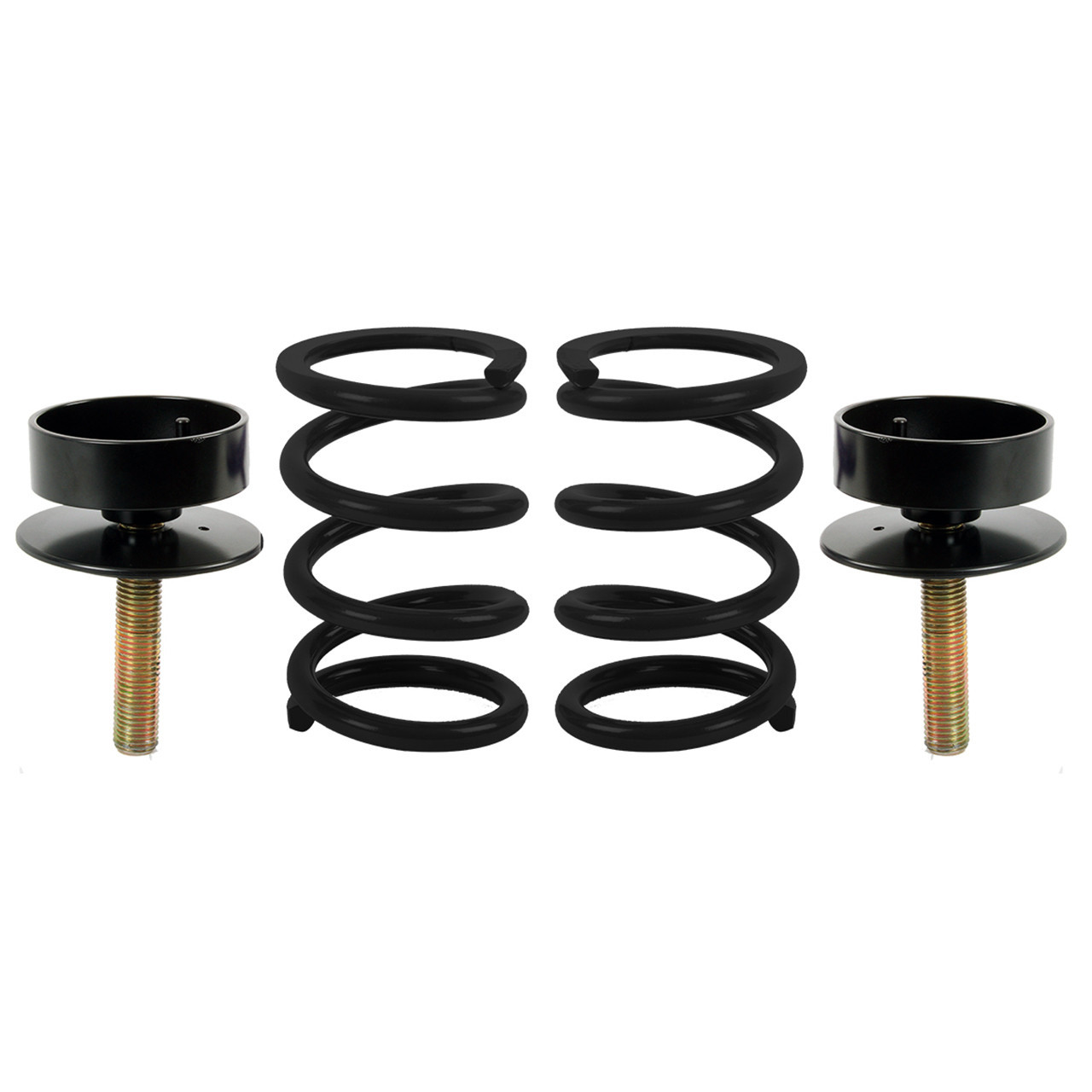

- Kit includes two weight jack assemblies and two 950 pounds per inch coil springs
- Installation instructions are included
Fitment Notes
Detroit Speed 030331DS is designed as a direct replacement for the standard front coil springs on 1982-1992 Chevrolet Camaro and Pontiac Firebird models. No cutting or modification is required for installation. The weight jack system provides additional inner tire clearance compared with a traditional coilover arrangement.
Fitment
- 1982 Chevrolet Camaro
- 1983 Chevrolet Camaro
- 1984 Chevrolet Camaro
- 1985 Chevrolet Camaro
- 1986 Chevrolet Camaro
- 1987 Chevrolet Camaro
- 1988 Chevrolet Camaro
- 1989 Chevrolet Camaro
- 1990 Chevrolet Camaro
- 1991 Chevrolet Camaro
- 1992 Chevrolet Camaro
- 1982 Pontiac Firebird
- 1983 Pontiac Firebird
- 1984 Pontiac Firebird
- 1985 Pontiac Firebird
- 1986 Pontiac Firebird
- 1987 Pontiac Firebird
- 1988 Pontiac Firebird
- 1989 Pontiac Firebird
- 1990 Pontiac Firebird
- 1991 Pontiac Firebird
- 1992 Pontiac Firebird
FAQs
What can be adjusted with the Detroit Speed 030331DS Front Weight Jack Kit?
The system allows each front corner to be adjusted independently for both ride height and corner weight. The threaded jack bolt is accessed from underneath the lower control arm and turned using a 1/2-inch ratchet extension.
Why use the DSE Front Weight Jack Kit instead of a traditional coilover?
In addition to independent front corner height and weight tuning, Detroit Speed designed the 030331DS system to provide more inner tire clearance than a traditional coilover arrangement. This can be particularly useful on performance-oriented third-generation Camaro and Firebird builds where wheel and tire clearance is at a premium.
