Detroit Speed ARP Stainless Steel Body Bolt Kit (1968-1974 GM X-Body) - 010803DS
Finish your classic GM X-Body body mount installation with premium hardware designed for the job using the Detroit Speed 010803DS ARP Stainless Steel Body Bolt Kit. Built around 1968-1974 X-Body applications, this kit replaces critical body-to-subframe and core-support mounting hardware with polished 17-4 stainless steel fasteners. It is an ideal companion to Detroit Speed solid body mounts and provides the proper hardware needed when tightening up the chassis connection on a performance-oriented restoration, street machine, or Pro-Touring build.

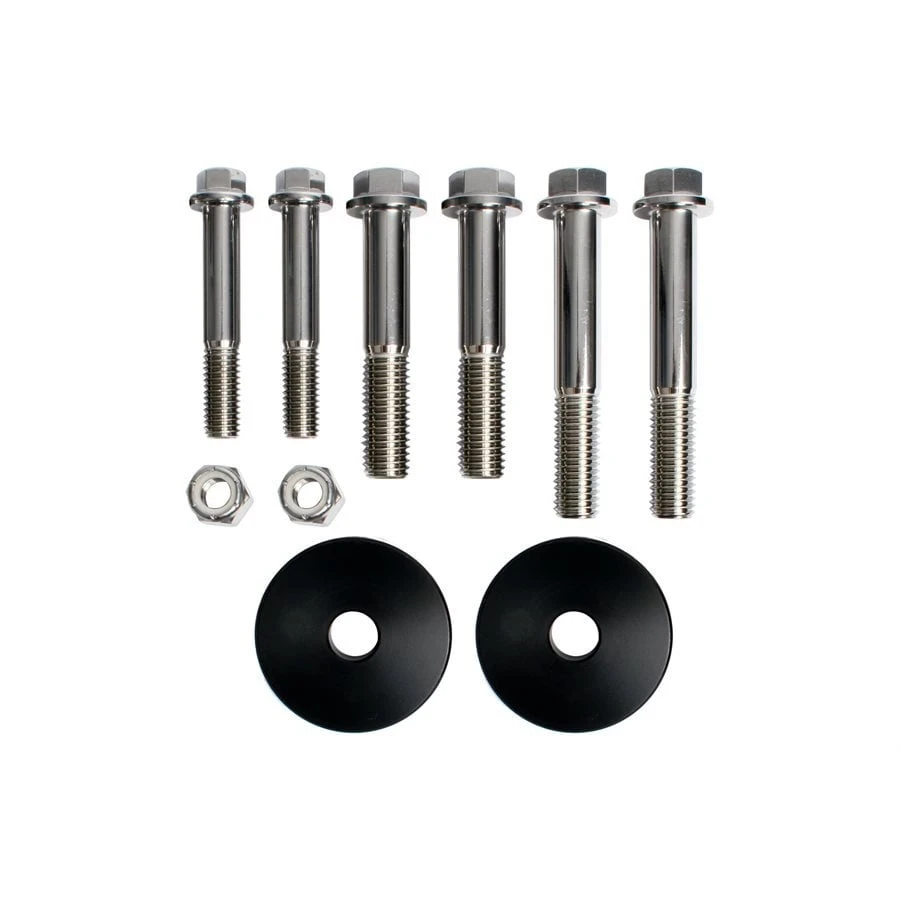

The 010803DS kit includes application-specific hardware for the X-Body chassis rather than simply supplying a collection of generic fasteners. Detroit Speed includes two 5/8-11 x 3.5 inch body-mount bolts and two 5/8-11 x 4 inch body-mount bolts, along with two 1/2-13 x 3 inch core-support bolts and two 1/2-13 stainless steel Nylock nuts. The different body bolt lengths accommodate the mounting requirements of the X-Body chassis.
Detroit Speed also includes two factory-style aluminum firewall body mount spacers. These spacers are important because Detroit Speed specifies that 1968-1974 Nova-style X-Body applications require spacers at the firewall body mounts between the body mounts and the body. Including them makes the 010803DS a purpose-built hardware package for this chassis rather than a universal stainless bolt assortment.
The polished 17-4 stainless steel construction provides durable, corrosion-resistant hardware while delivering the clean appearance expected on a detailed chassis build. Detroit Speed specifies 35 feet-pounds of torque for the core-support fasteners and 85 feet-pounds for the frame-to-body fasteners. Anti-seize should be applied to stainless steel bolt threads during installation.
Quick Specs
- Part Number: 010803DS
- Manufacturer: Detroit Speed
- Product Type: ARP Stainless Steel Body Bolt Kit
- Application: 1968-1974 GM X-Body
- Bolt Material: 17-4 Stainless Steel
- Bolt Finish: Polished
- 5/8-11 x 3.5 Inch Small-Flange Hex-Head Body Mount Bolts: 2
- 5/8-11 x 4 Inch Small-Flange Hex-Head Body Mount Bolts: 2
- 1/2-13 x 3 Inch Small-Flange Hex-Head Core Support Bolts: 2
- 1/2-13 Stainless Steel Nylock Nuts: 2
- Factory-Style Aluminum Firewall Body Mount Spacers: 2
- Provides Hardware for Body-to-Subframe Mounting
- Provides Hardware for Core-Support-to-Subframe Mounting
- Designed to Complement Detroit Speed Solid Body Mounts
- Core Support Fastener Torque: 35 feet-pounds
- Frame-to-Body Fastener Torque: 85 feet-pounds
- Anti-Seize Recommended on Stainless Steel Bolt Threads During Installation
- Emission Code: 4
Features
- Application-specific stainless steel body mounting hardware for classic GM X-Body applications
- Polished 17-4 stainless steel construction provides strength, corrosion resistance, and a clean finished appearance
- Includes two 5/8-11 x 3.5 inch body mount bolts
- Includes two longer 5/8-11 x 4 inch body mount bolts for the application-specific mounting locations
- Includes two 1/2-13 x 3 inch core-support mounting bolts
- Includes two stainless steel Nylock nuts for the core-support hardware
- Includes two factory-style aluminum firewall body mount spacers required for the X-Body installation
- Provides the primary hardware needed to attach the subframe to the body and the core support to the subframe
- Excellent companion to Detroit Speed solid aluminum body mounts
- Replaces aging, rusty, or worn original body mounting hardware with polished stainless steel components
- Ideal for restorations, street performance, and Pro-Touring X-Body builds
Fitment
- 1973 Buick Apollo
- 1974 Buick Apollo
- 1968 Chevrolet Chevy II
- 1969 Chevrolet Nova
- 1970 Chevrolet Nova
- 1971 Chevrolet Nova
- 1972 Chevrolet Nova
- 1973 Chevrolet Nova
- 1974 Chevrolet Nova
- 1973 Oldsmobile Omega
- 1974 Oldsmobile Omega
- 1971 Pontiac Ventura
- 1972 Pontiac Ventura
- 1973 Pontiac Ventura
- 1974 Pontiac Ventura
FAQs
What hardware is included with the Detroit Speed 010803DS Body Bolt Kit?
The kit includes two 5/8-11 x 3.5 inch body mount bolts, two 5/8-11 x 4 inch body mount bolts, two 1/2-13 x 3 inch core-support bolts, two 1/2-13 stainless steel Nylock nuts, and two factory-style aluminum firewall body mount spacers.
Why does the 010803DS kit include firewall body mount spacers?
Detroit Speed specifies that 1968-1974 Nova-style X-Body applications require factory-style spacers at the firewall body mount locations. The 010803DS includes two aluminum spacers for these mounting points.
